Driver Climate Controlled Seat Connector

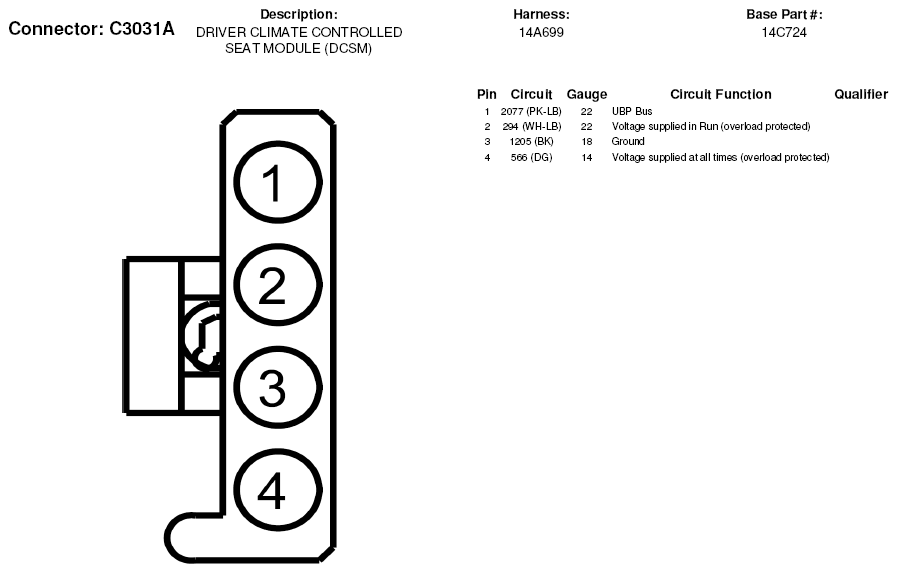

Fig 1: Driver Climate Controlled Seat Connector End View (C3031A)
G05181707Courtesy of FORD MOTOR CO.

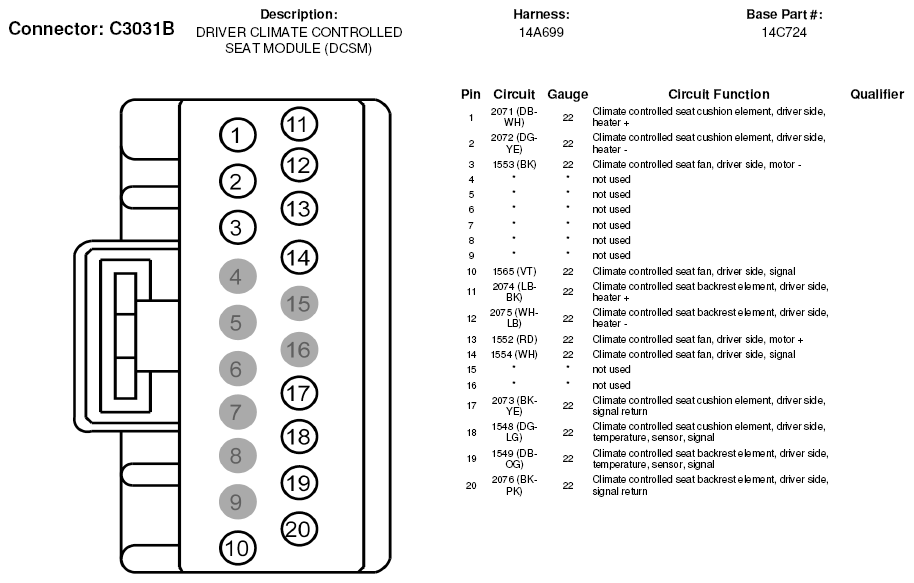

Fig 2: Driver Climate Controlled Seat Connector End View (C3031B)
G05181708Courtesy of FORD MOTOR CO.
