Compressor Manifold and Tube Assembly: Notes

Material

Item	Specification
PAG Refrigerant Compressor Oil (R134a Systems) YN-12-D	WSH-M1C231-B

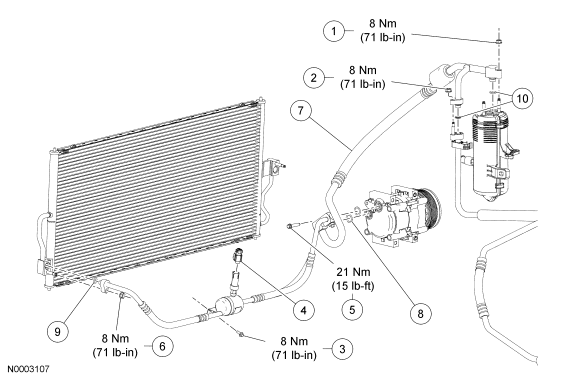

Fig 1: Exploded View Of Compressor Manifold & Tube Assembly With Torque Specifications

GF0033717

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W520413	Suction accumulator outlet fitting nut
2	W520413	Auxiliary line fitting nut
3	W500013	Compressor manifold and tube bracket bolt
4	12A581	High pressure switch electrical connector
5	N805334	Compressor manifold bolt
6	W520413	Condenser inlet fitting nut
7	19D734	Compressor manifold and tube assembly
8	19E889	O-ring seal (2 required)
9	19E889	O-ring seal
10	19E889	O-ring seal (2 required)
