Rear Integrated Control Panel Connector

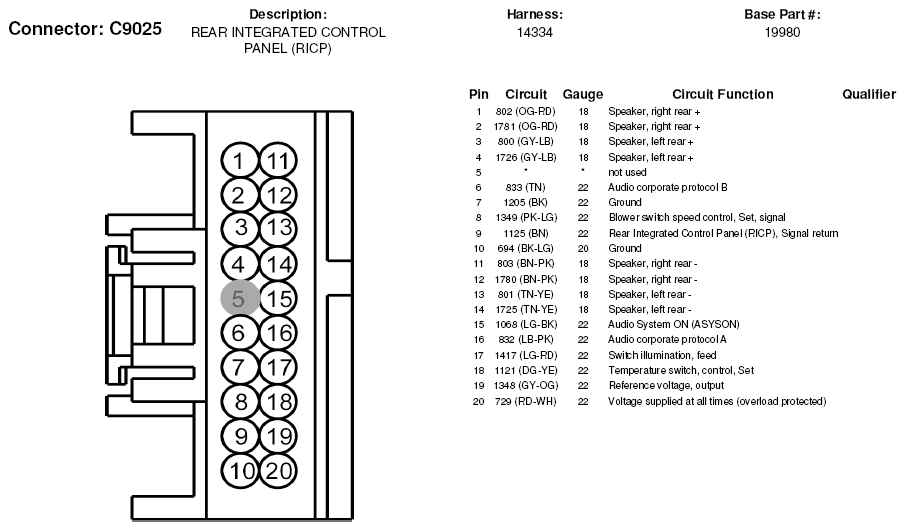

Fig 1: Rear Integrated Control Panel Connector End View (C9025)
G05181757Courtesy of FORD MOTOR CO.
