Front Suspension - Exploded View
Front
Suspension
- Exploded View

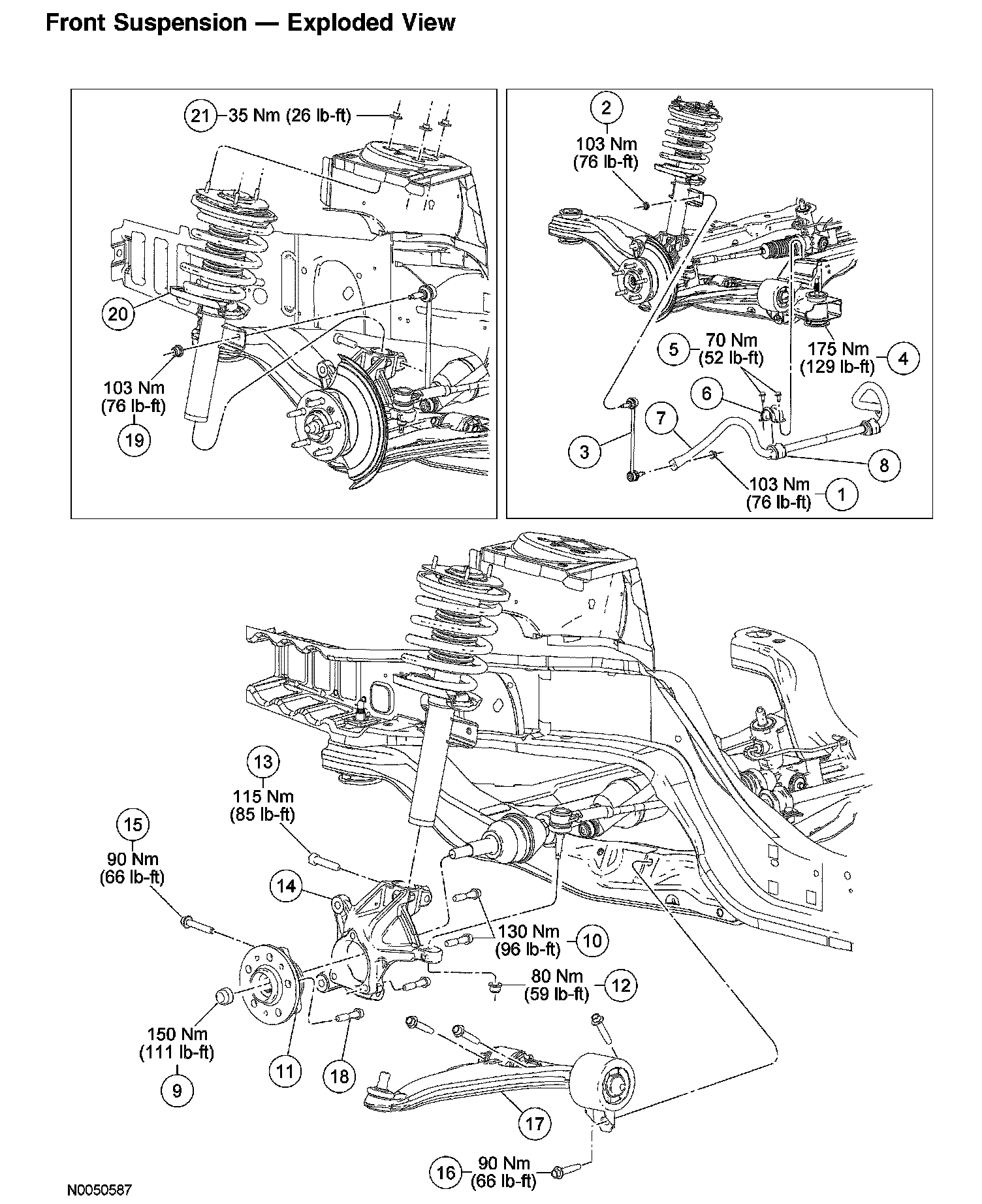

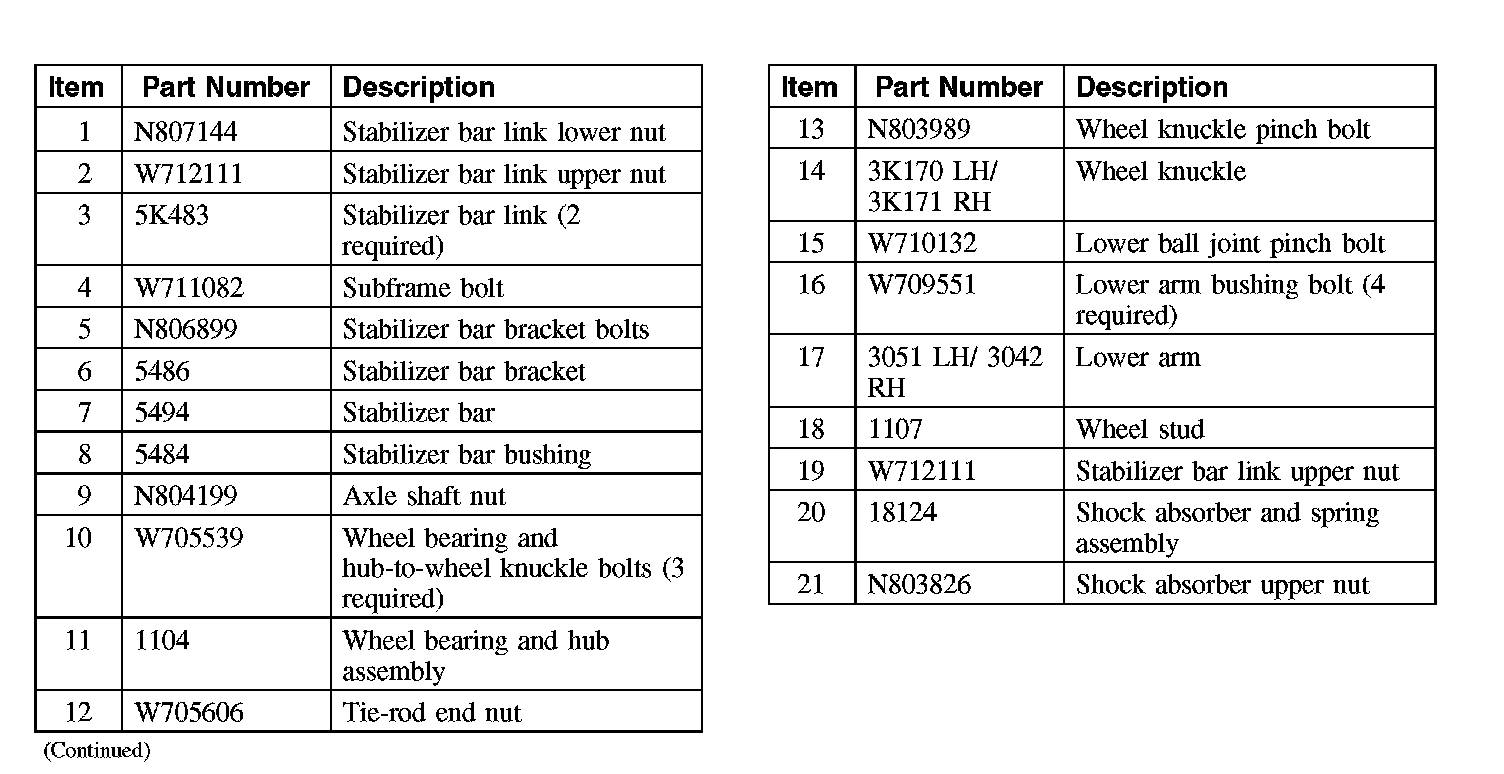

Front Suspension - Exploded View (Part 1):
Front Suspension - Exploded View (Part 2):
