Driver Seat Recliner Motor Connector

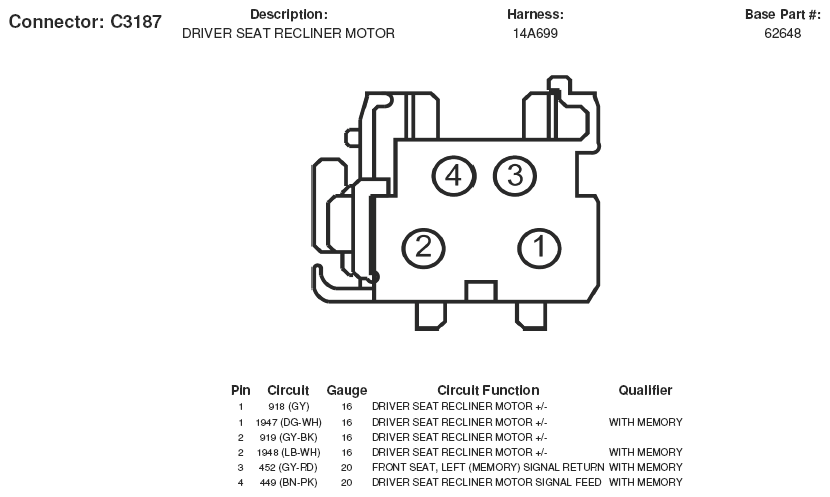

Fig 1: Driver Seat Recliner Motor Connector End View (C3187)
G05168910Courtesy of FORD MOTOR CO.
