Two-Way Washer Pump Motor Connector

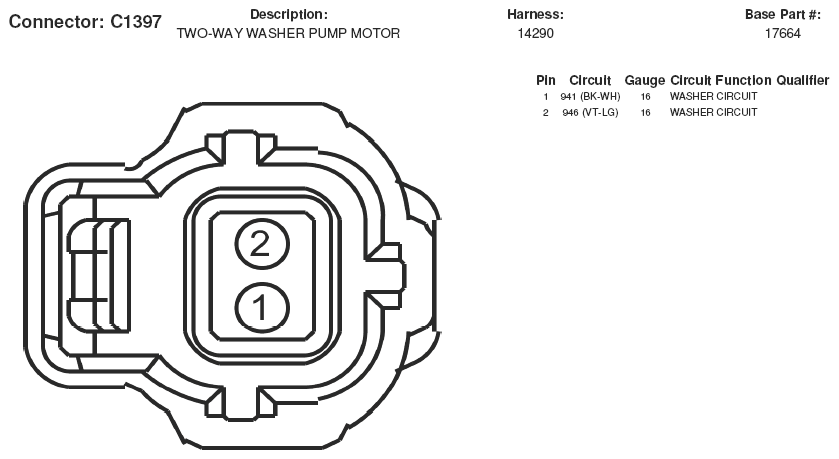

Fig 1: Two-Way Washer Pump Motor Connector End View (C1397)
G05168867Courtesy of FORD MOTOR CO.
