Adjustable Pedal Motor Connector

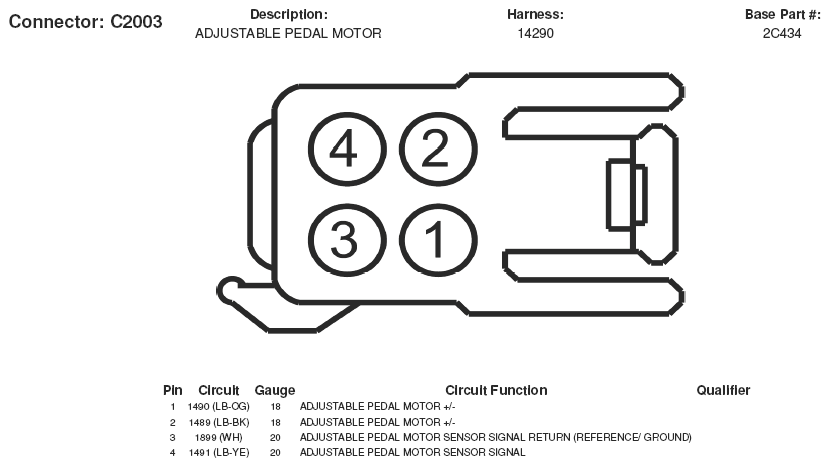

Fig 1: Adjustable Pedal Motor Connector End View (C2003)
G05168870Courtesy of FORD MOTOR CO.
Fig 2: Adjustable Pedal Motor Connector End View (C2159)
G05168879Courtesy of FORD MOTOR CO.
