Liftgate Release Switch / Decklid Release Switch Connector

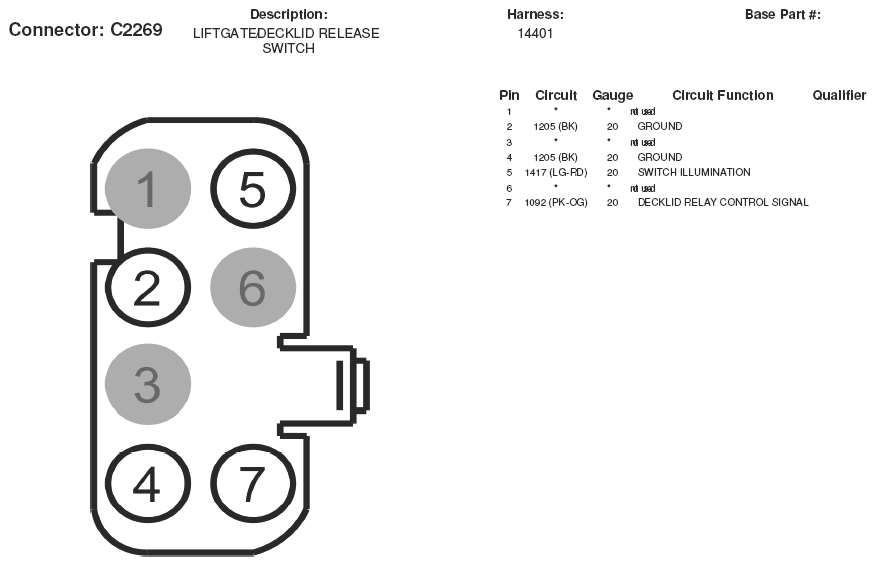

Fig 1: Liftgate Release Switch / Decklid Release Switch Connector End View (C2269)
Courtesy of FORD MOTOR CO.
