Inline Connectors

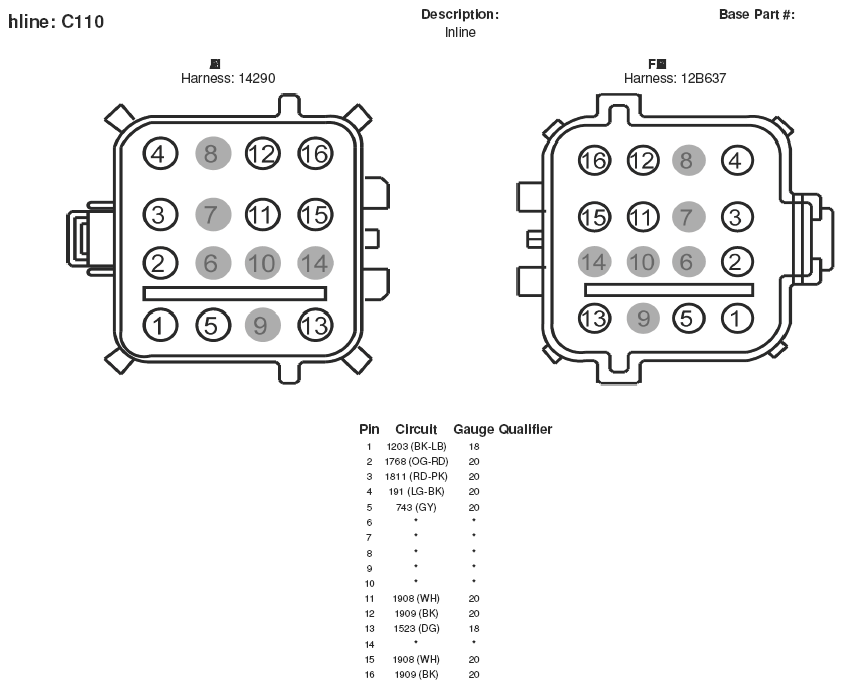

Fig 1: Inline Connector End View (C110)
Courtesy of FORD MOTOR CO.

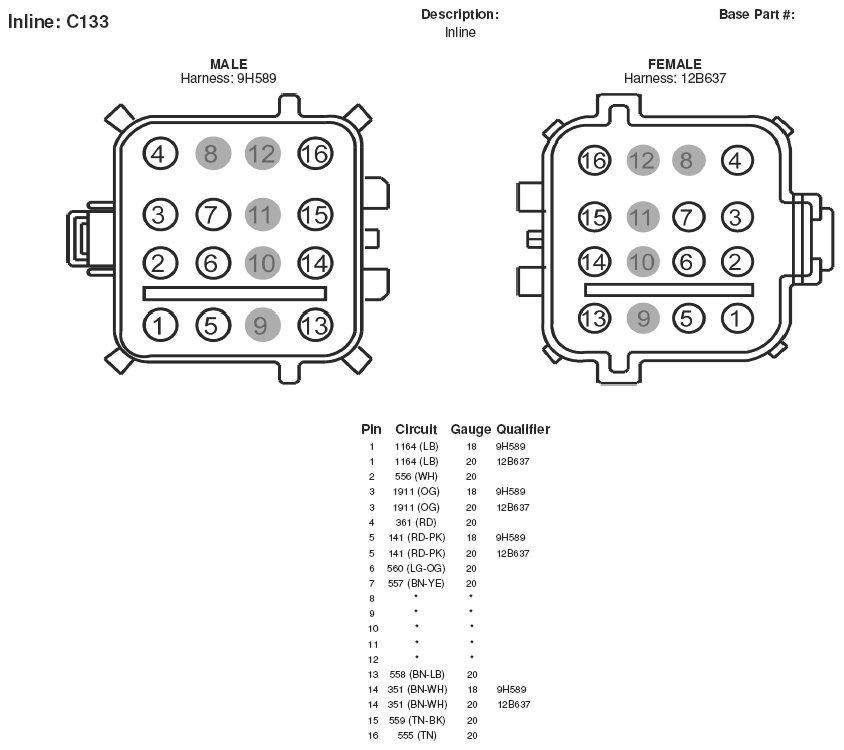

Fig 2: Inline Connector End View (C133)
Courtesy of FORD MOTOR CO.

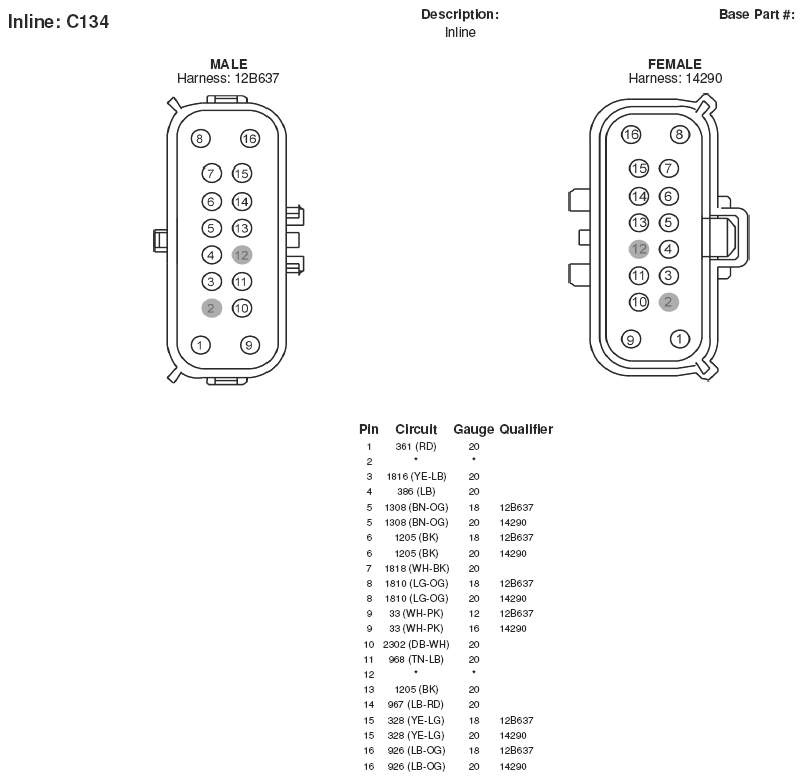

Fig 3: Inline Connector End View (C134)
Courtesy of FORD MOTOR CO.

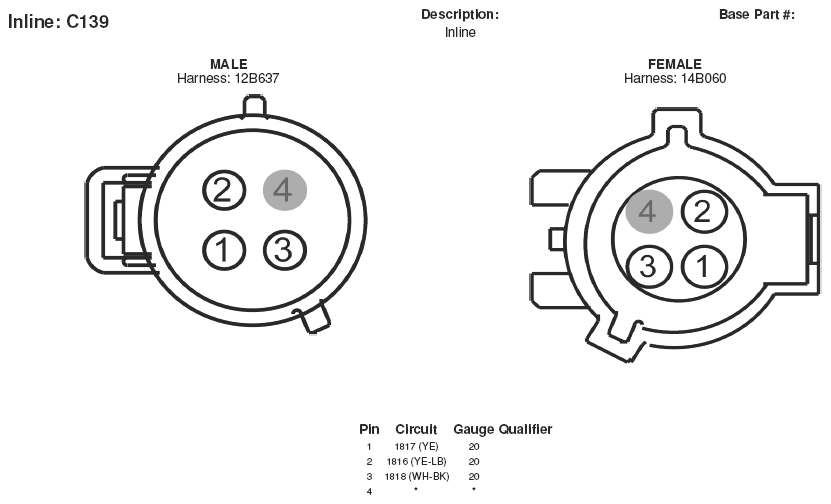

Fig 4: Inline Connector End View (C139)
Courtesy of FORD MOTOR CO.

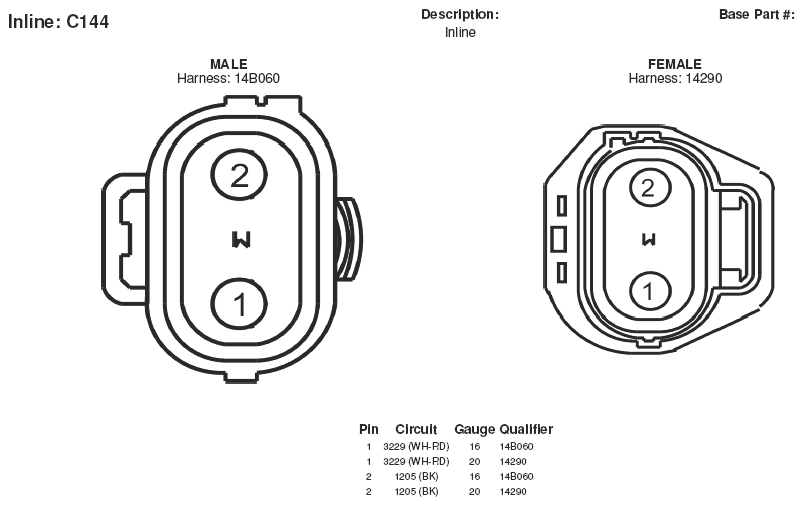

Fig 5: Inline Connector End View (C144)
Courtesy of FORD MOTOR CO.

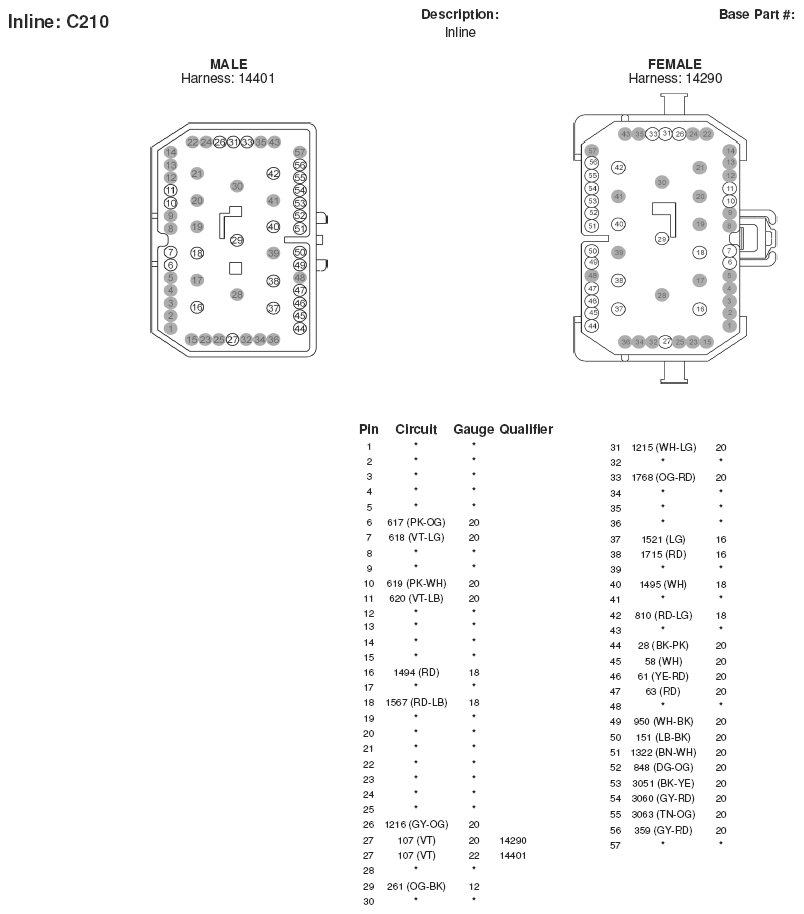

Fig 6: Inline Connector End View (C210)
Courtesy of FORD MOTOR CO.

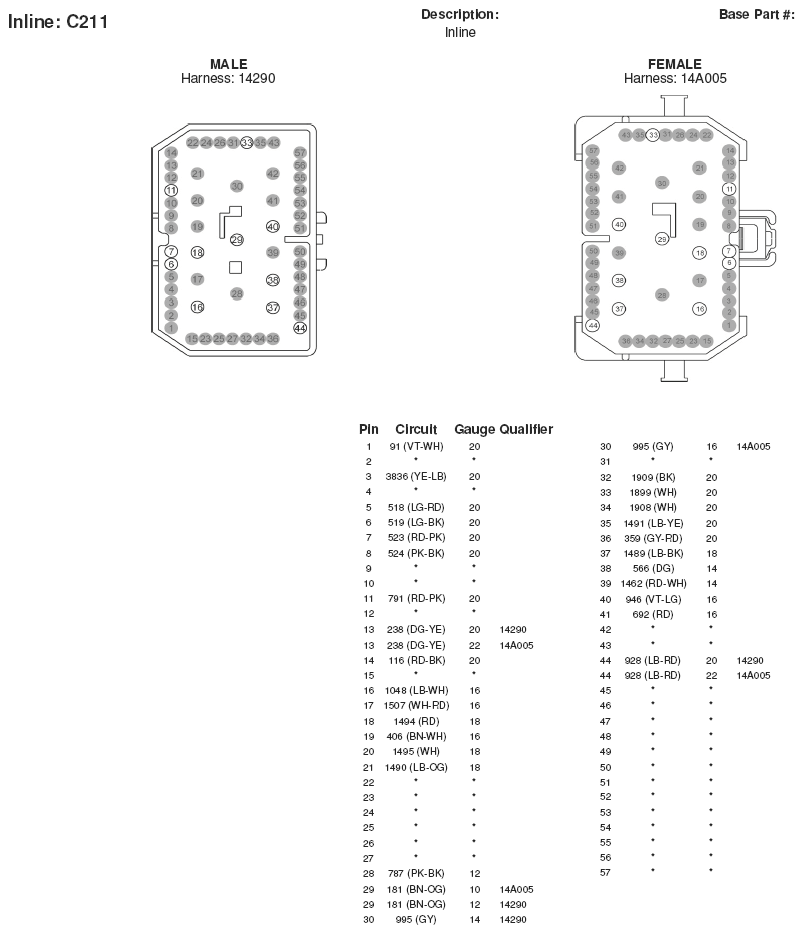

Fig 7: Inline Connector End View (C211)
Courtesy of FORD MOTOR CO.

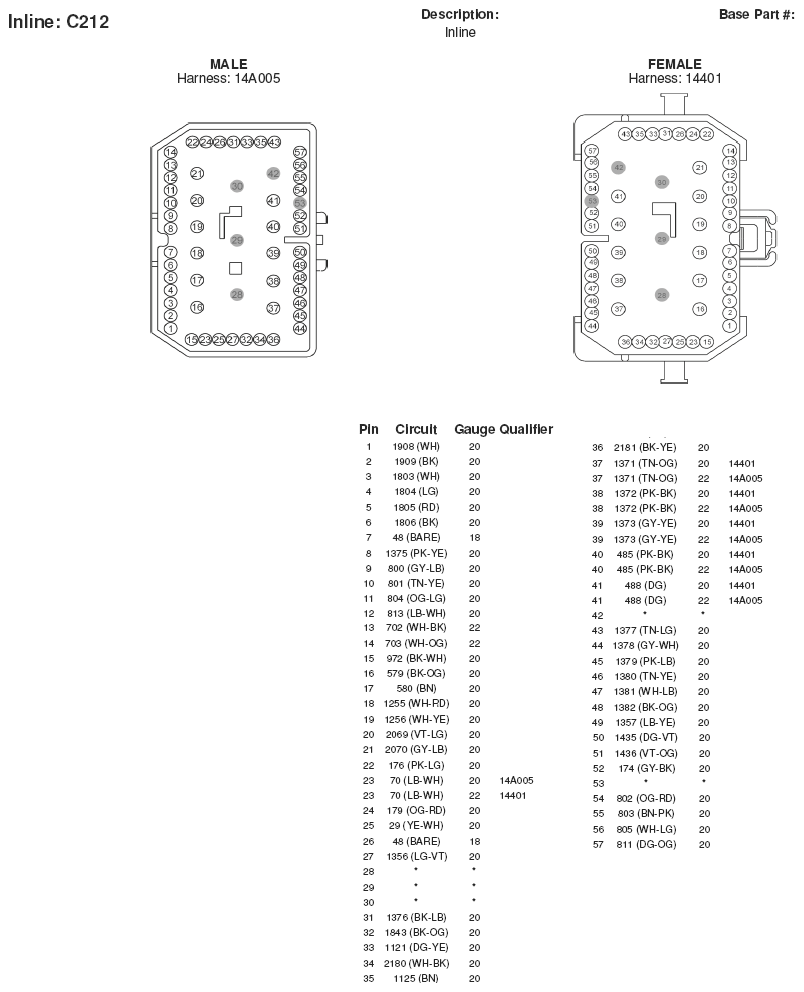

Fig 8: Inline Connector End View (C212)
Courtesy of FORD MOTOR CO.

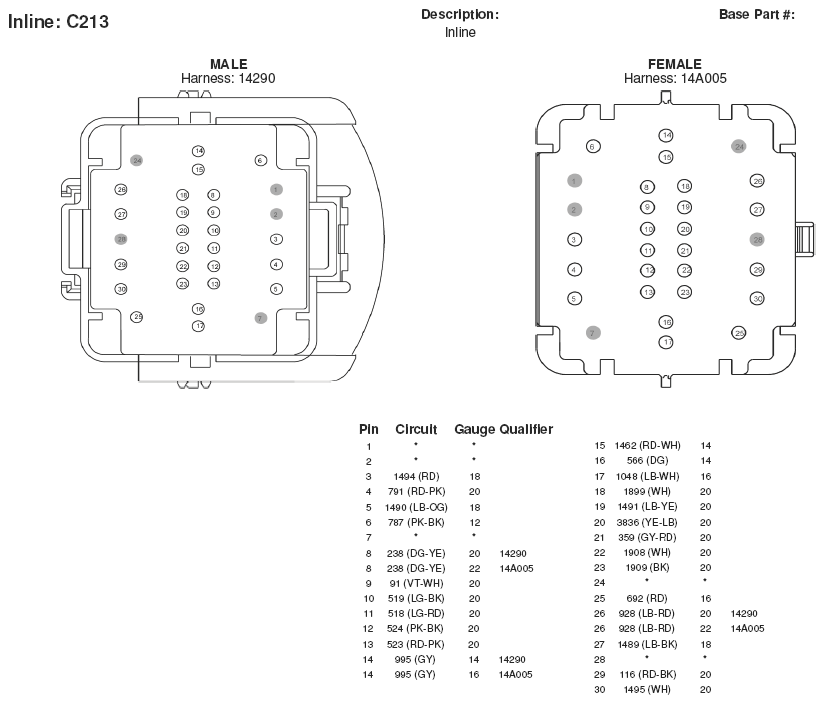

Fig 9: Inline Connector End View (C213)
Courtesy of FORD MOTOR CO.

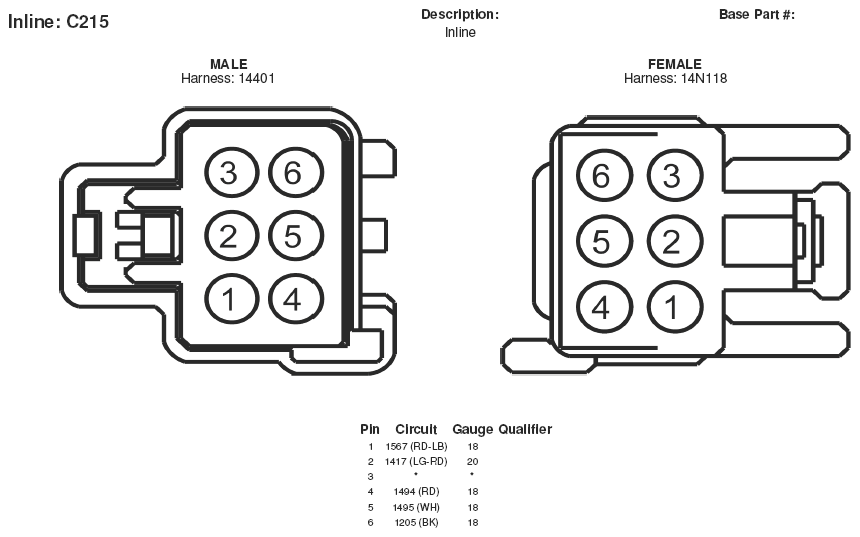

Fig 10: Inline Connector End View (C215)
Courtesy of FORD MOTOR CO.

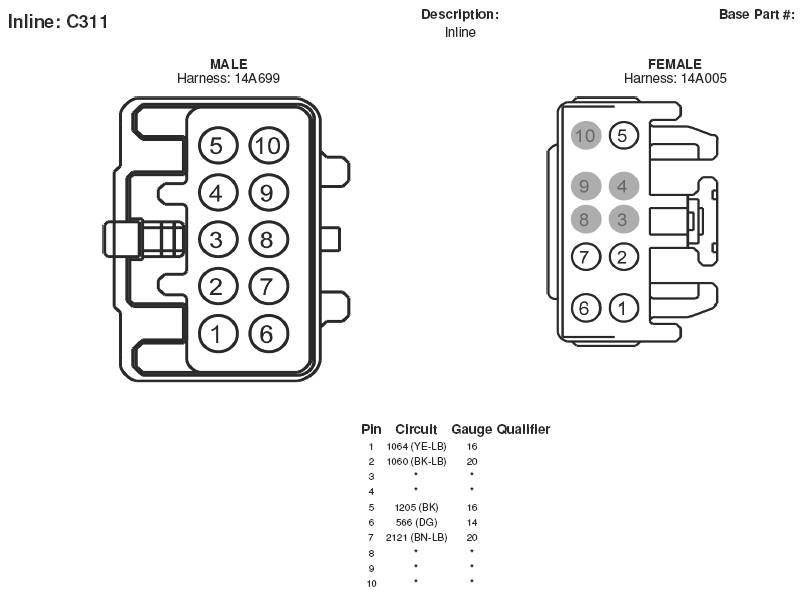

Fig 11: Inline Connector End View (C311)
Courtesy of FORD MOTOR CO.

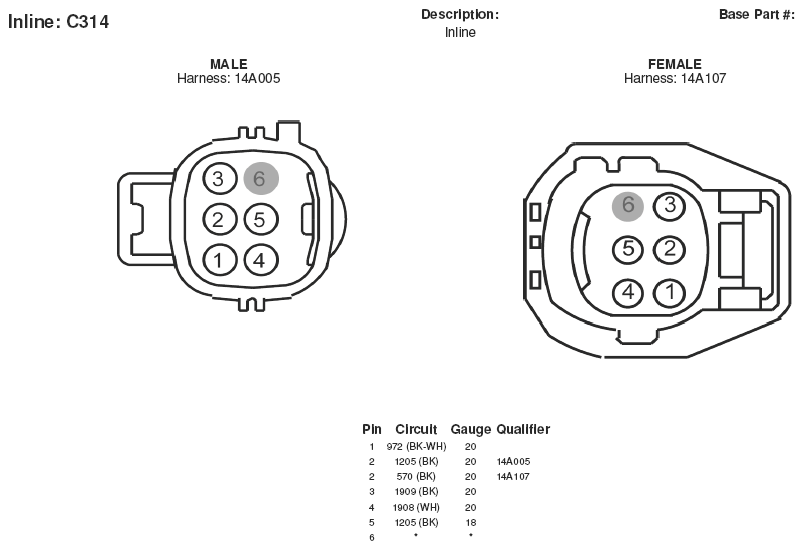

Fig 12: Inline Connector End View (C314)
Courtesy of FORD MOTOR CO.

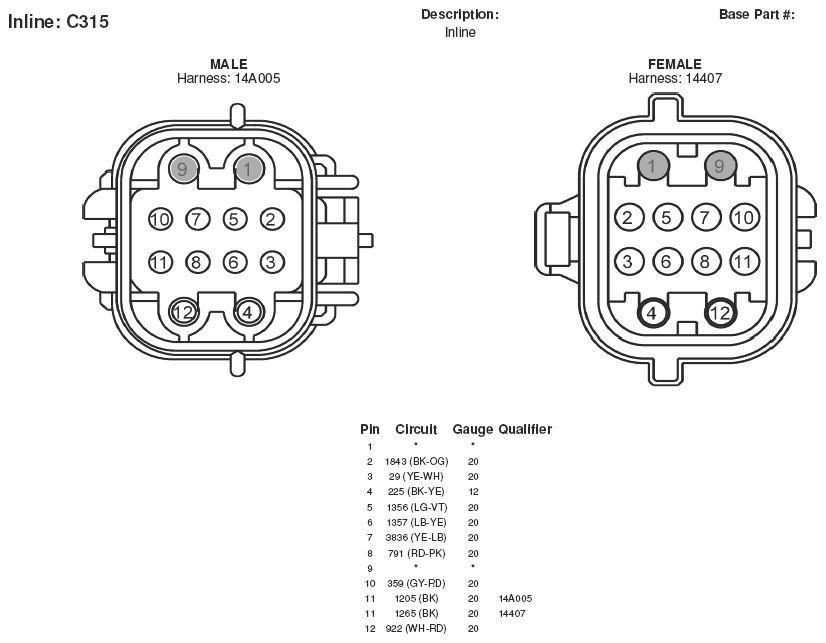

Fig 13: Inline Connector End View (C315)
Courtesy of FORD MOTOR CO.

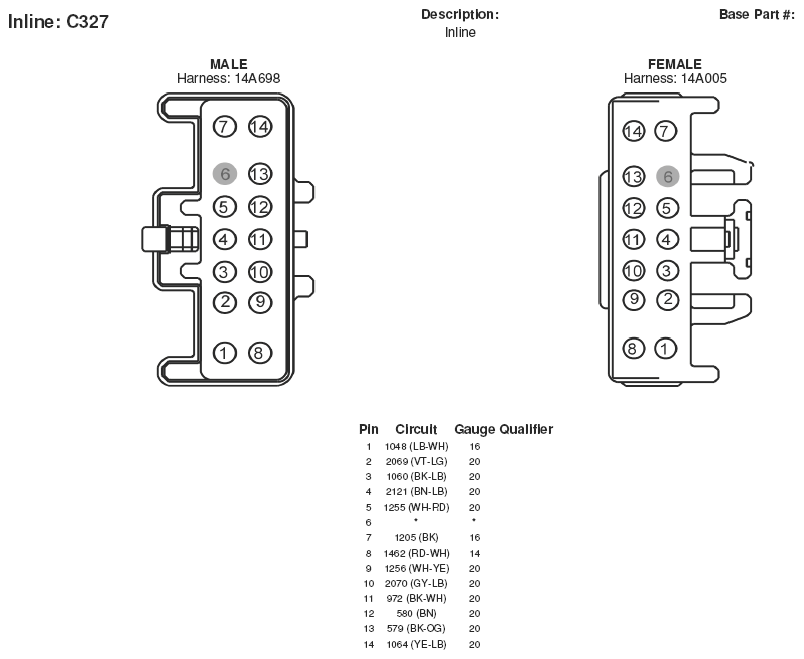

Fig 14: Inline Connector End View (C327)
Courtesy of FORD MOTOR CO.

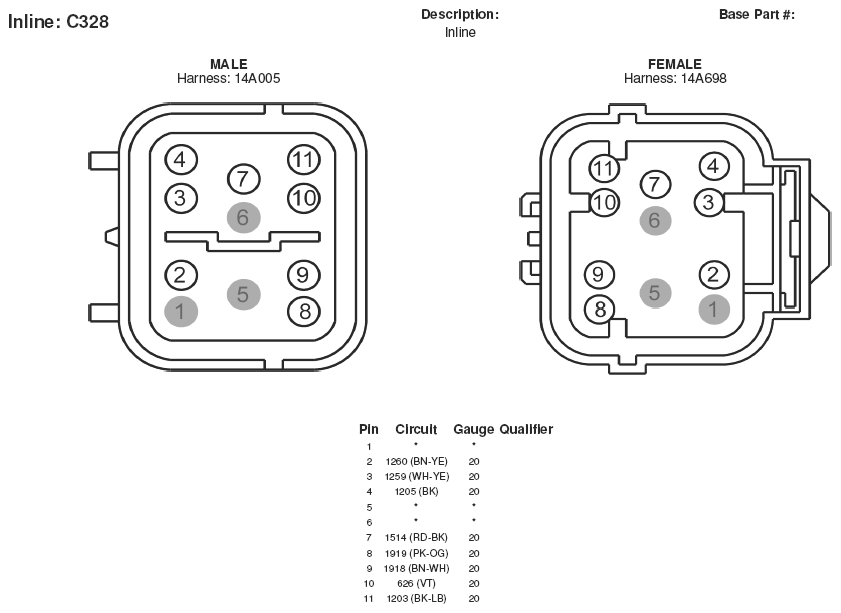

Fig 15: Inline Connector End View (C328)
Courtesy of FORD MOTOR CO.

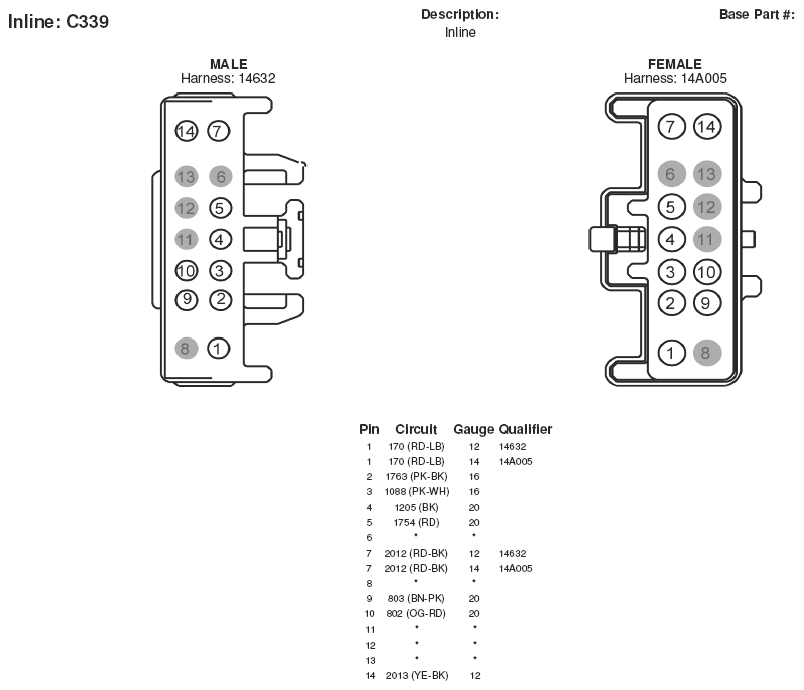

Fig 16: Inline Connector End View (C339)
Courtesy of FORD MOTOR CO.

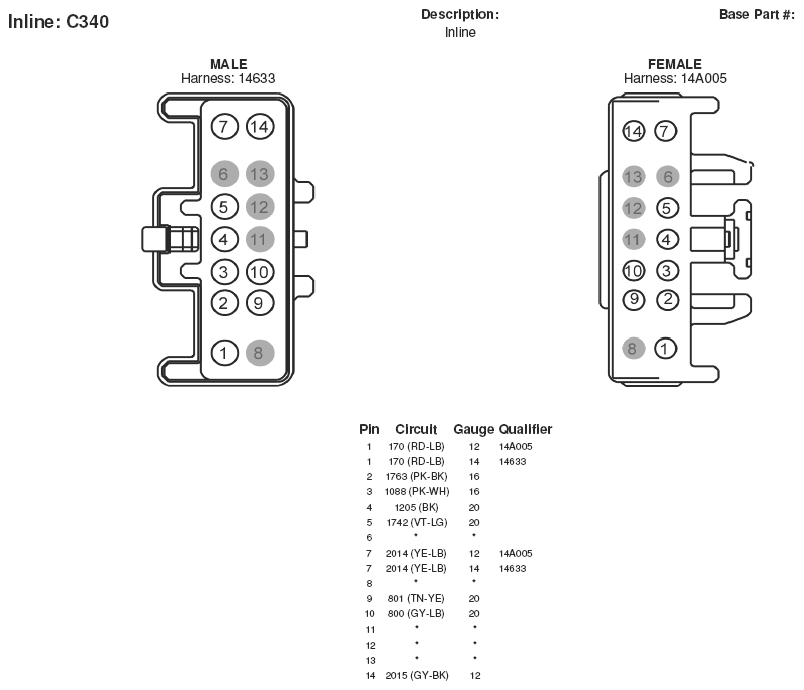

Fig 17: Inline Connector End View (C340)
Courtesy of FORD MOTOR CO.

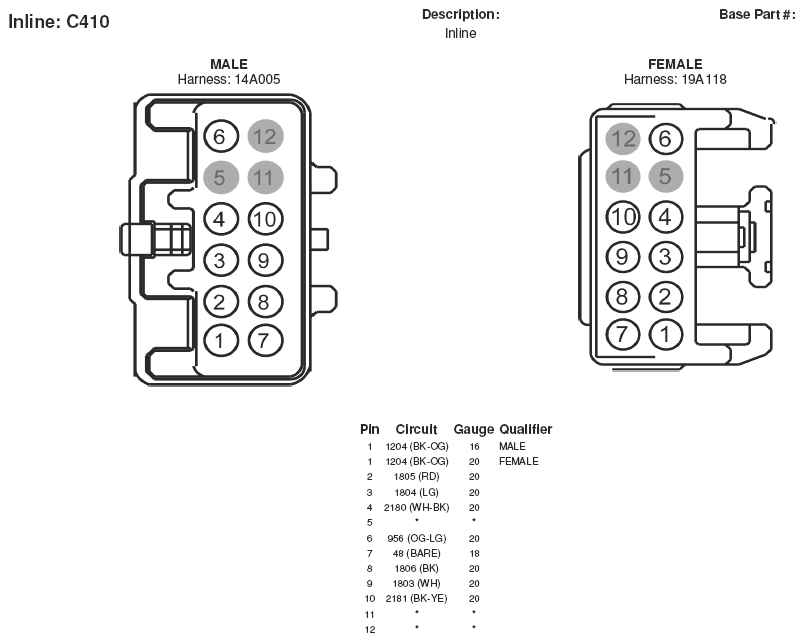

Fig 18: Inline Connector End View (C410)
Courtesy of FORD MOTOR CO.

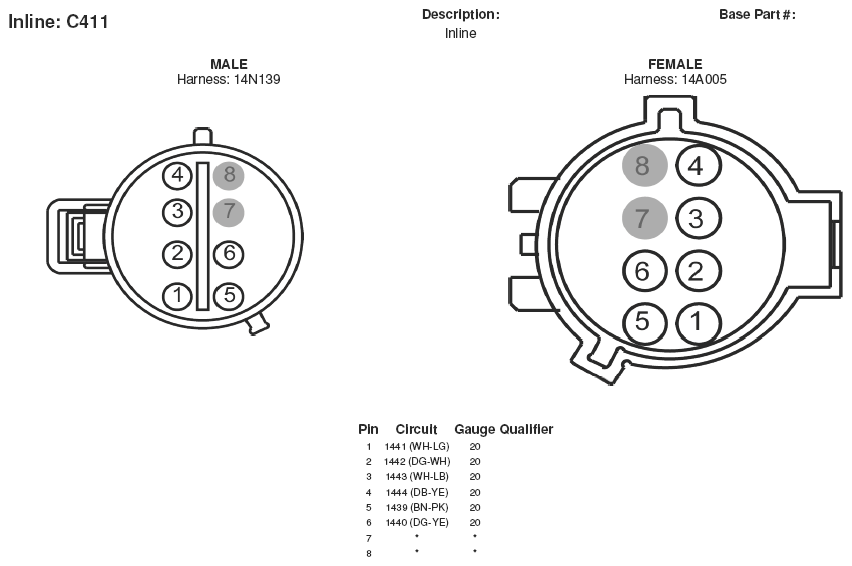

Fig 19: Inline Connector End View (C411)
Courtesy of FORD MOTOR CO.

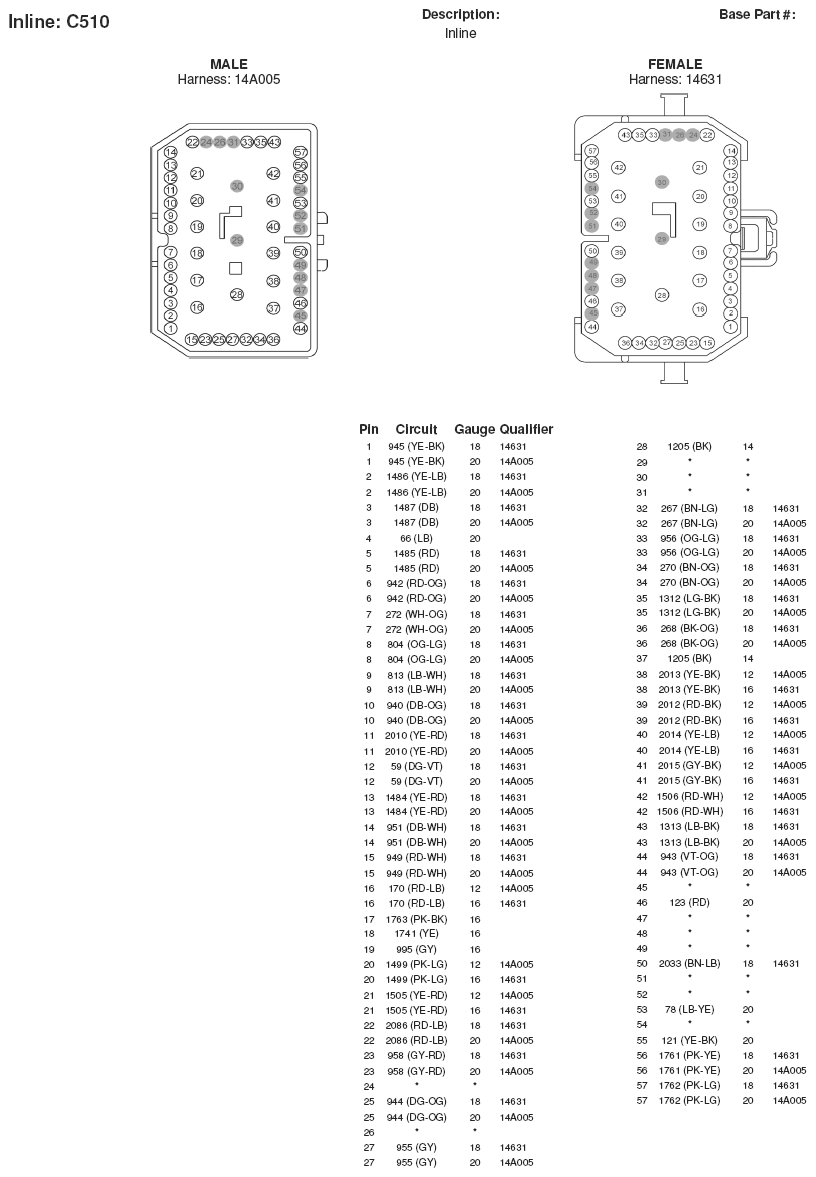

Fig 20: Inline Connector End View (C510)
Courtesy of FORD MOTOR CO.

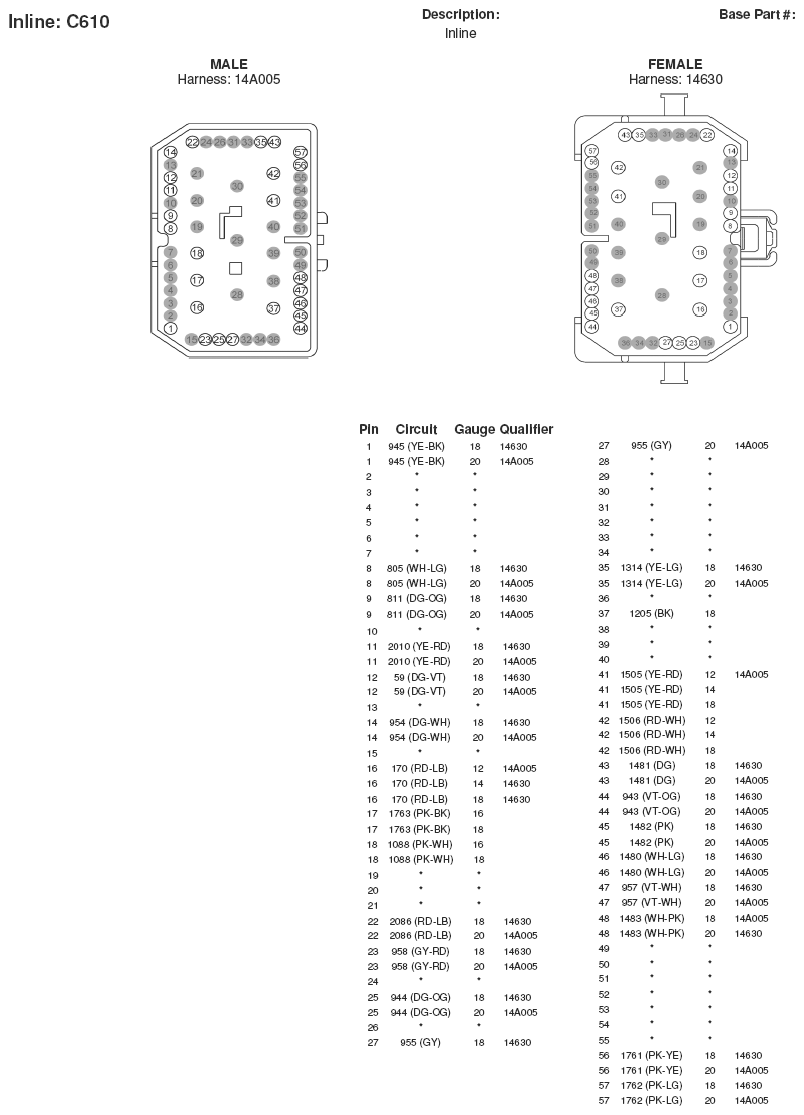

Fig 21: Inline Connector End View (C610)
Courtesy of FORD MOTOR CO.

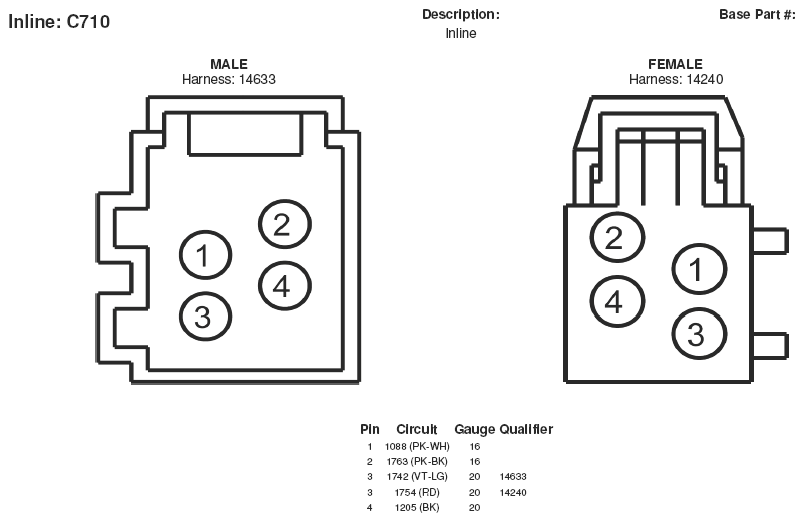

Fig 22: Inline Connector End View (C710)
Courtesy of FORD MOTOR CO.

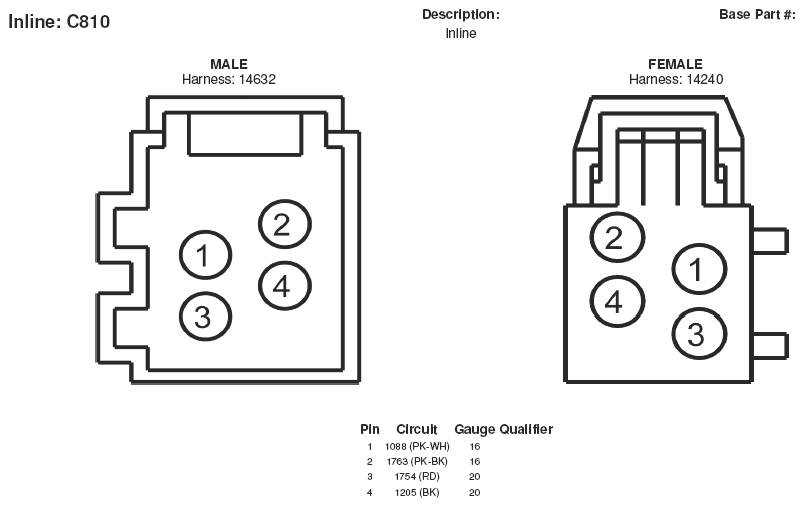

Fig 23: Inline Connector End View (C810)
Courtesy of FORD MOTOR CO.

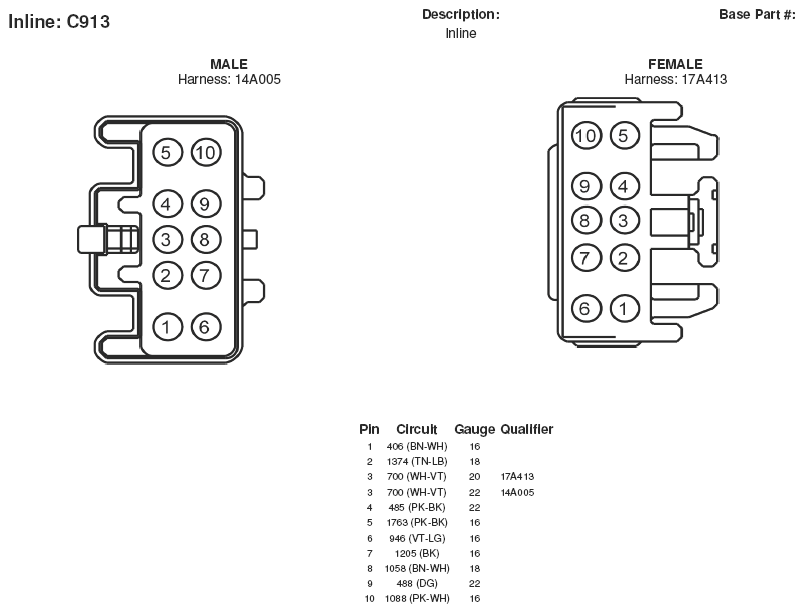

Fig 24: Inline Connector End View (C913)
Courtesy of FORD MOTOR CO.
Fig 25: Inline Connector End View (C919)
Courtesy of FORD MOTOR CO.

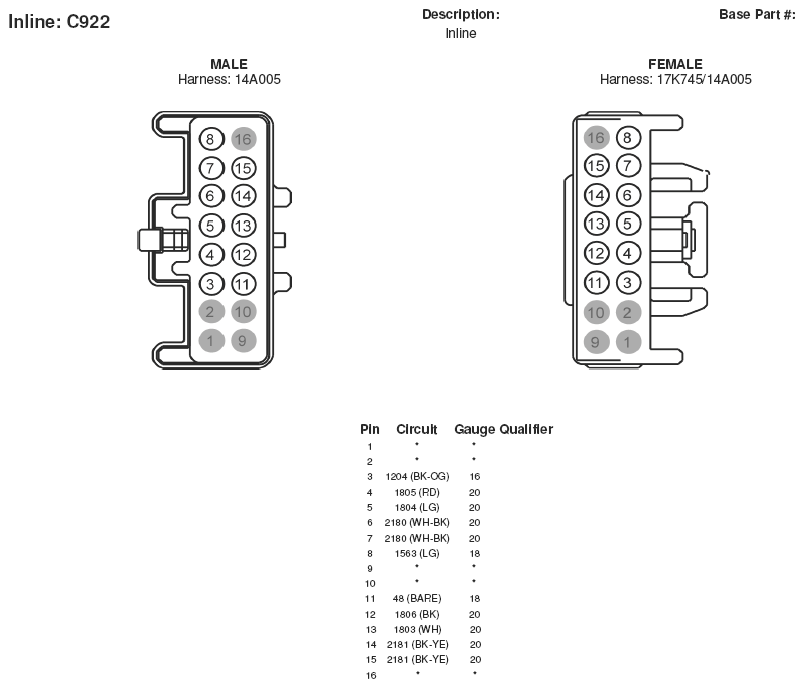

Fig 26: Inline Connector End View (C922)
Courtesy of FORD MOTOR CO.
Fig 27: Inline Connector End View (C925)
Courtesy of FORD MOTOR CO.
Fig 28: Inline Connector End View (C935)
Courtesy of FORD MOTOR CO.

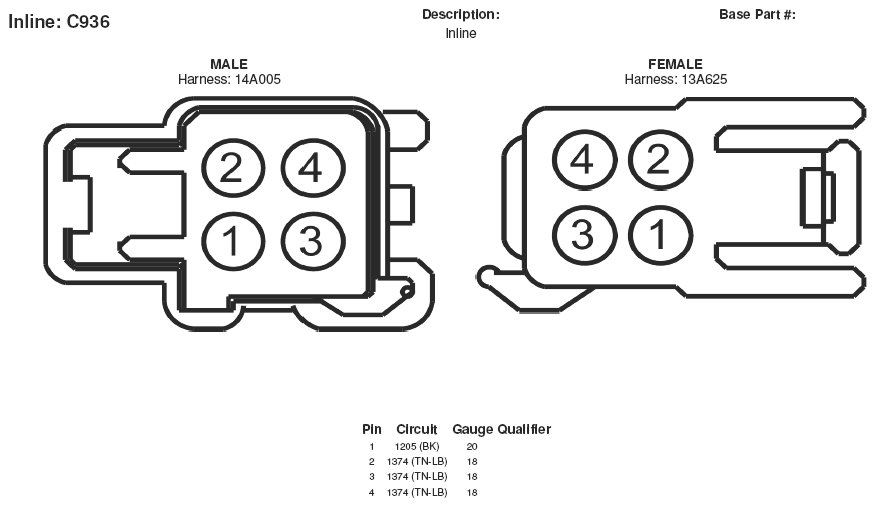

Fig 29: Inline Connector End View (C936)
Courtesy of FORD MOTOR CO.

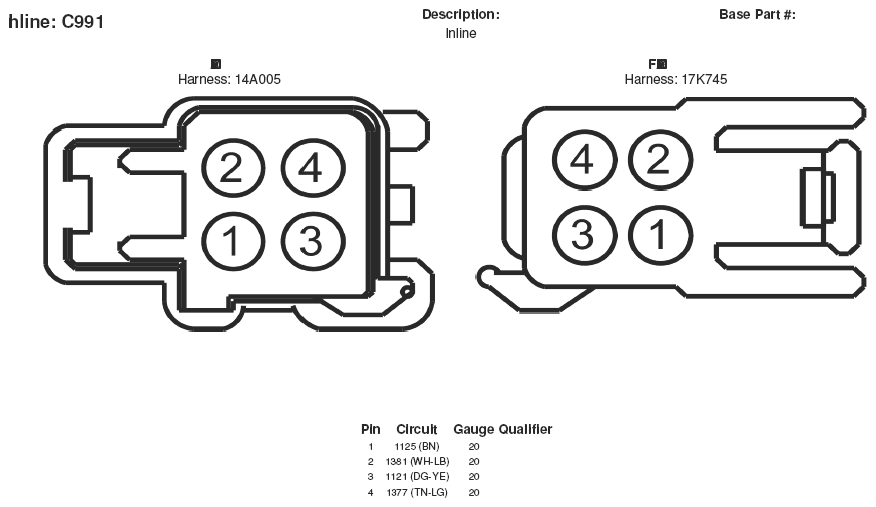

Fig 30: Inline Connector End View (C991)
Courtesy of FORD MOTOR CO.

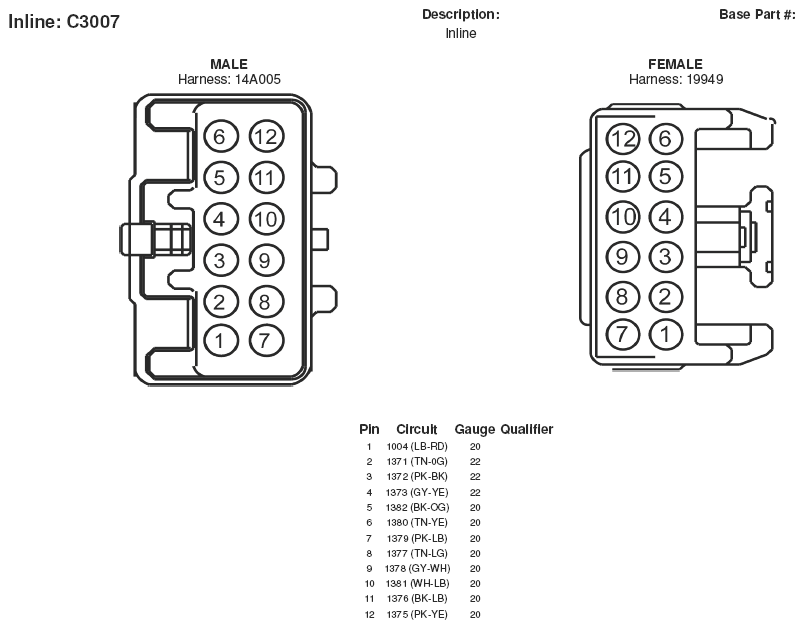

Fig 31: Inline Connector End View (C3007)
Courtesy of FORD MOTOR CO.

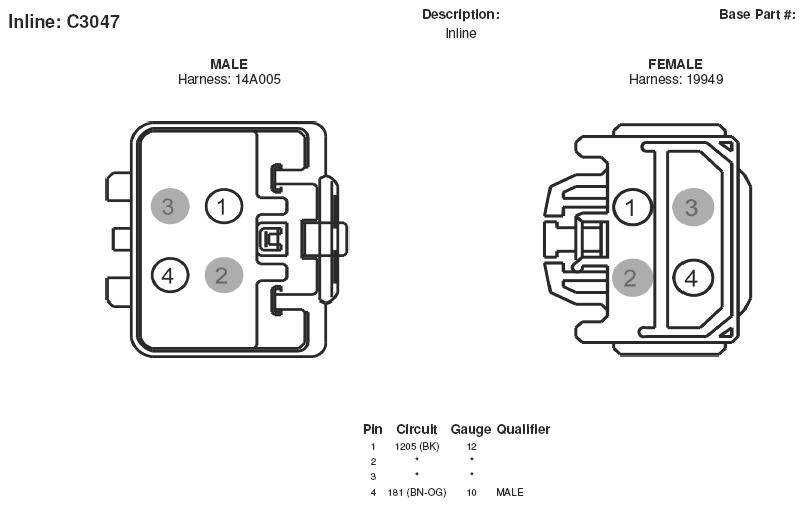

Fig 32: Inline Connector End View (C3047)
Courtesy of FORD MOTOR CO.

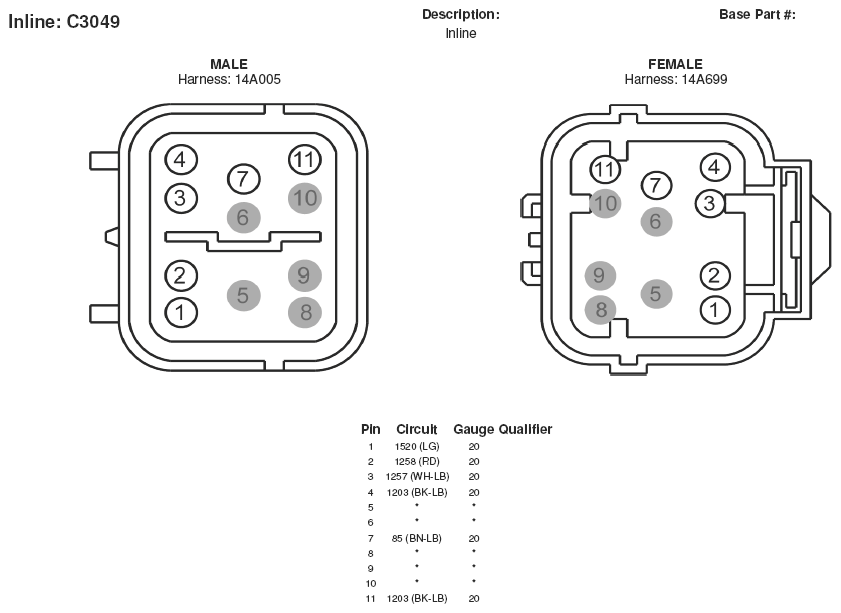

Fig 33: Inline Connector End View (C3049)
Courtesy of FORD MOTOR CO.

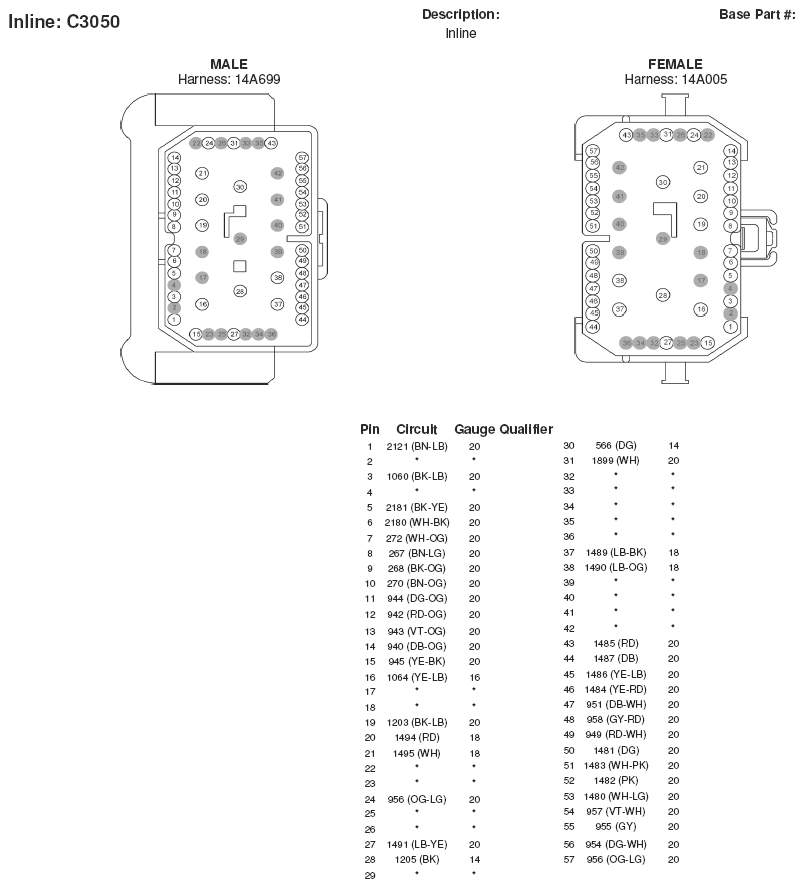

Fig 34: Inline Connector End View (C3050)
Courtesy of FORD MOTOR CO.
