Home >> Mercury >> 2007 >> Montego AWD V6-3.0L VIN 1 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Control Module, CVT

September 30: LEMON manuals is back up on a temporary server! Slowness is possible

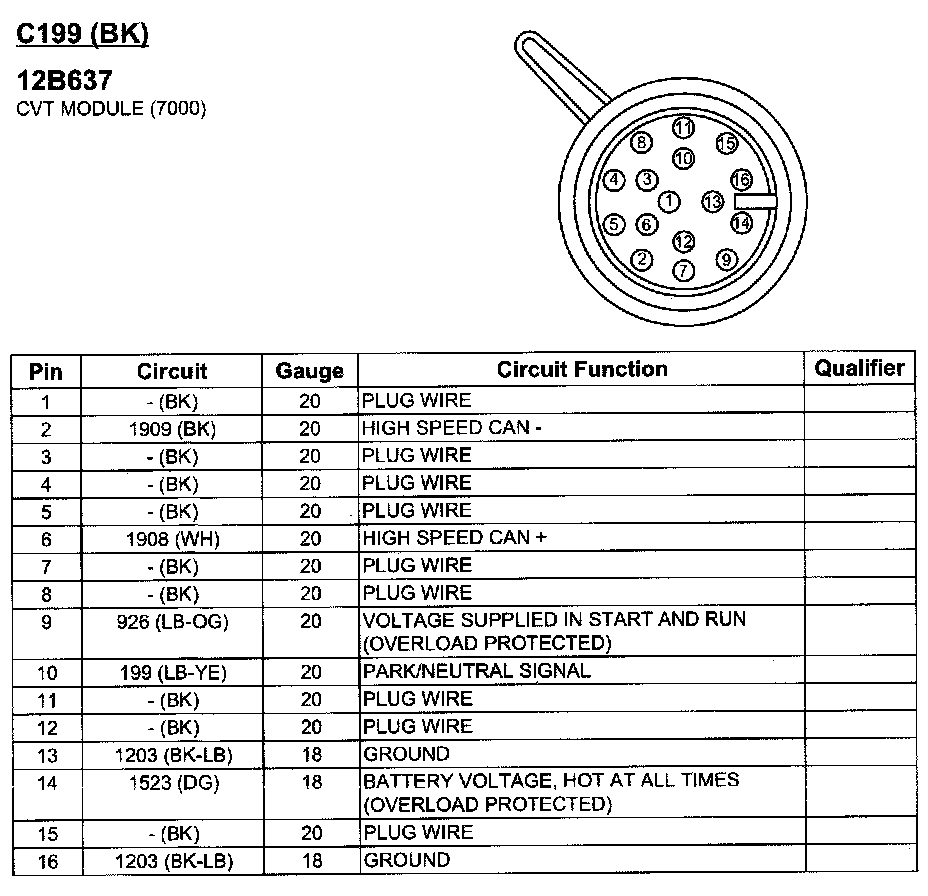

Control Module, CVT

C199:
