Engine Lubrication

Engine Lubrication Components - Exploded View

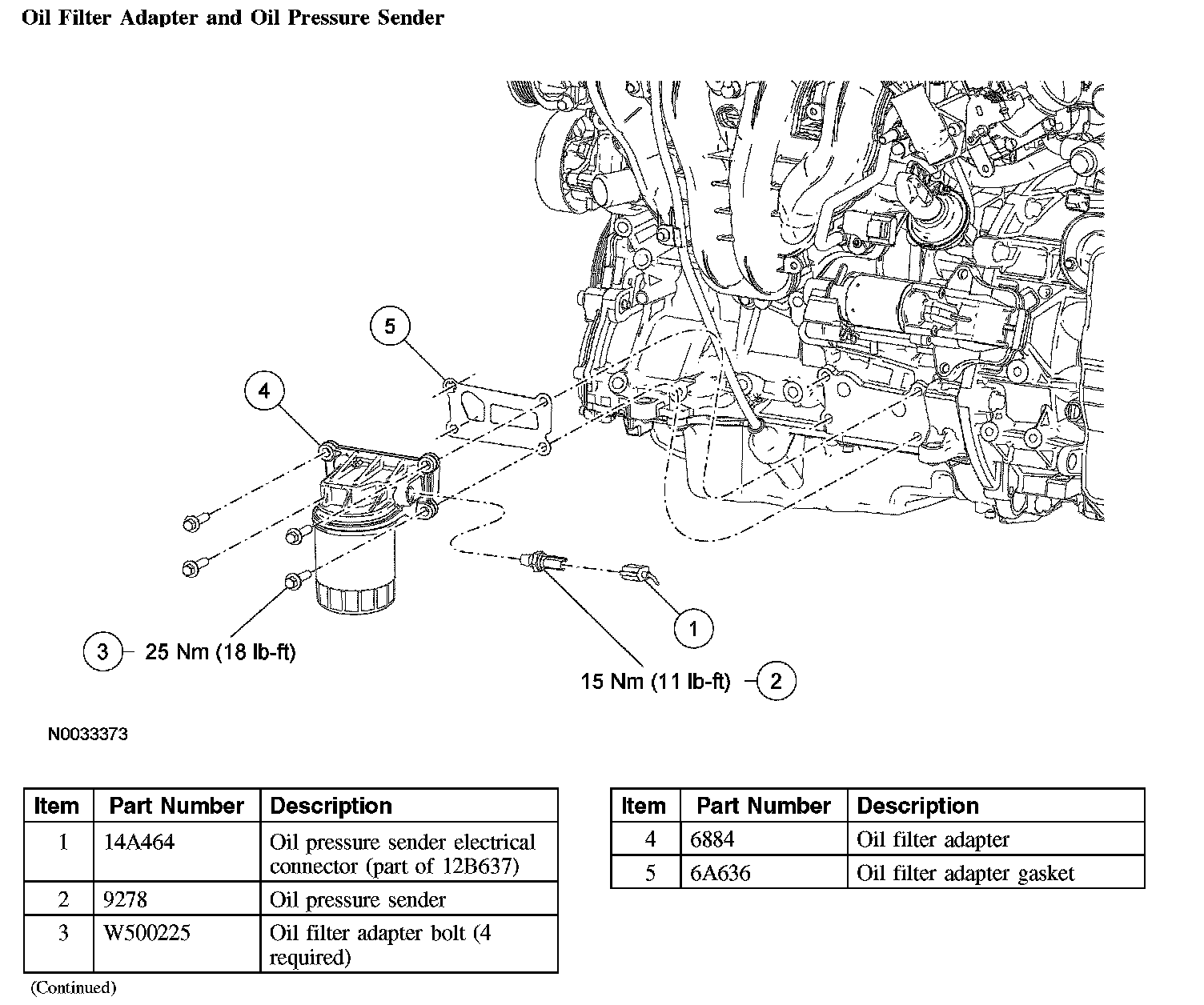

Oil Filter Adapter and Oil Pressure Sender:

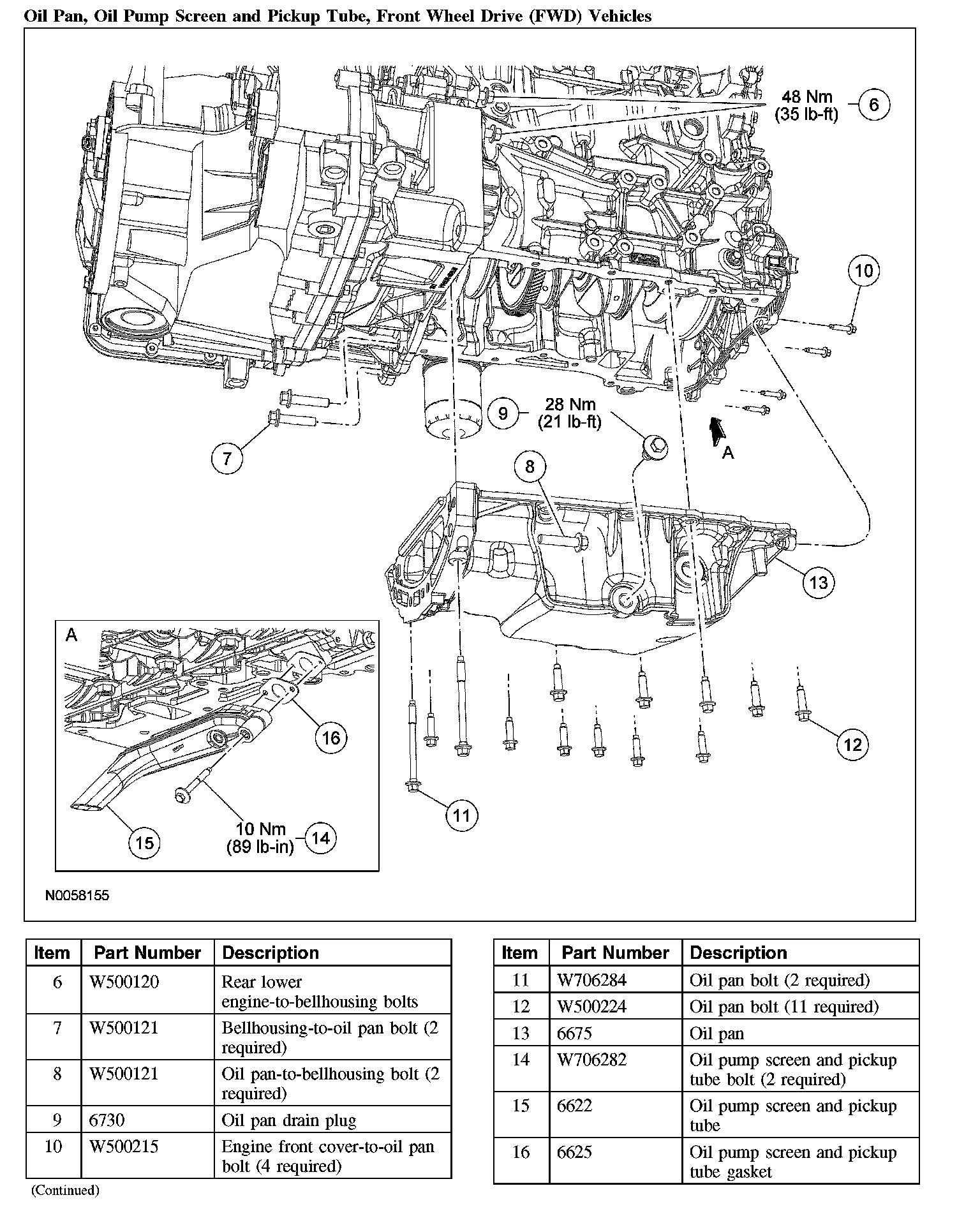

Oil Pan, Oil Pump Screen and Pickup Tube, Front Wheel Drive (FWD) Vehicles:

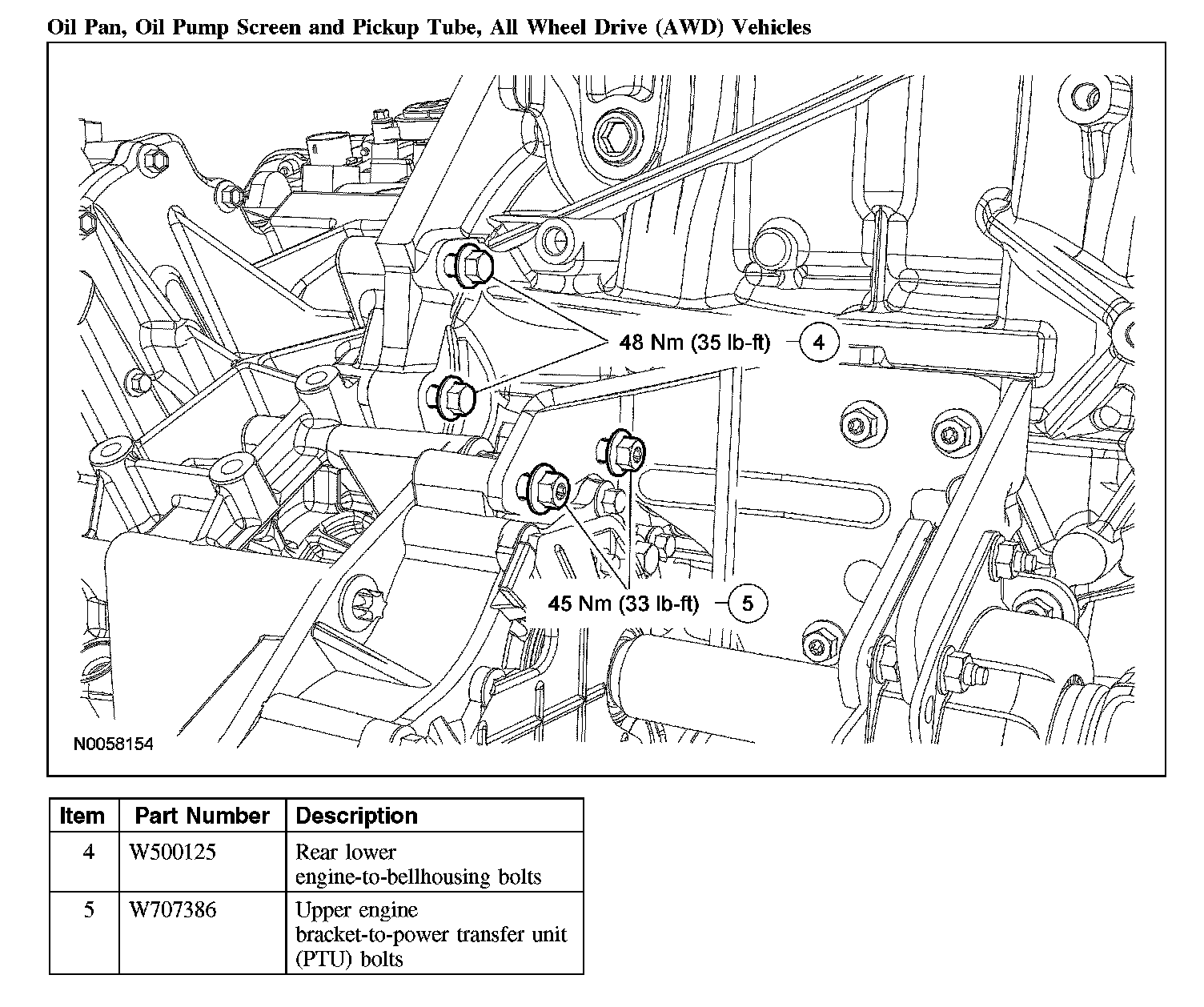

Oil Pan, Oil Pump Screen and Pickup Tube, All Wheel Drive (AWD) Vehicles:

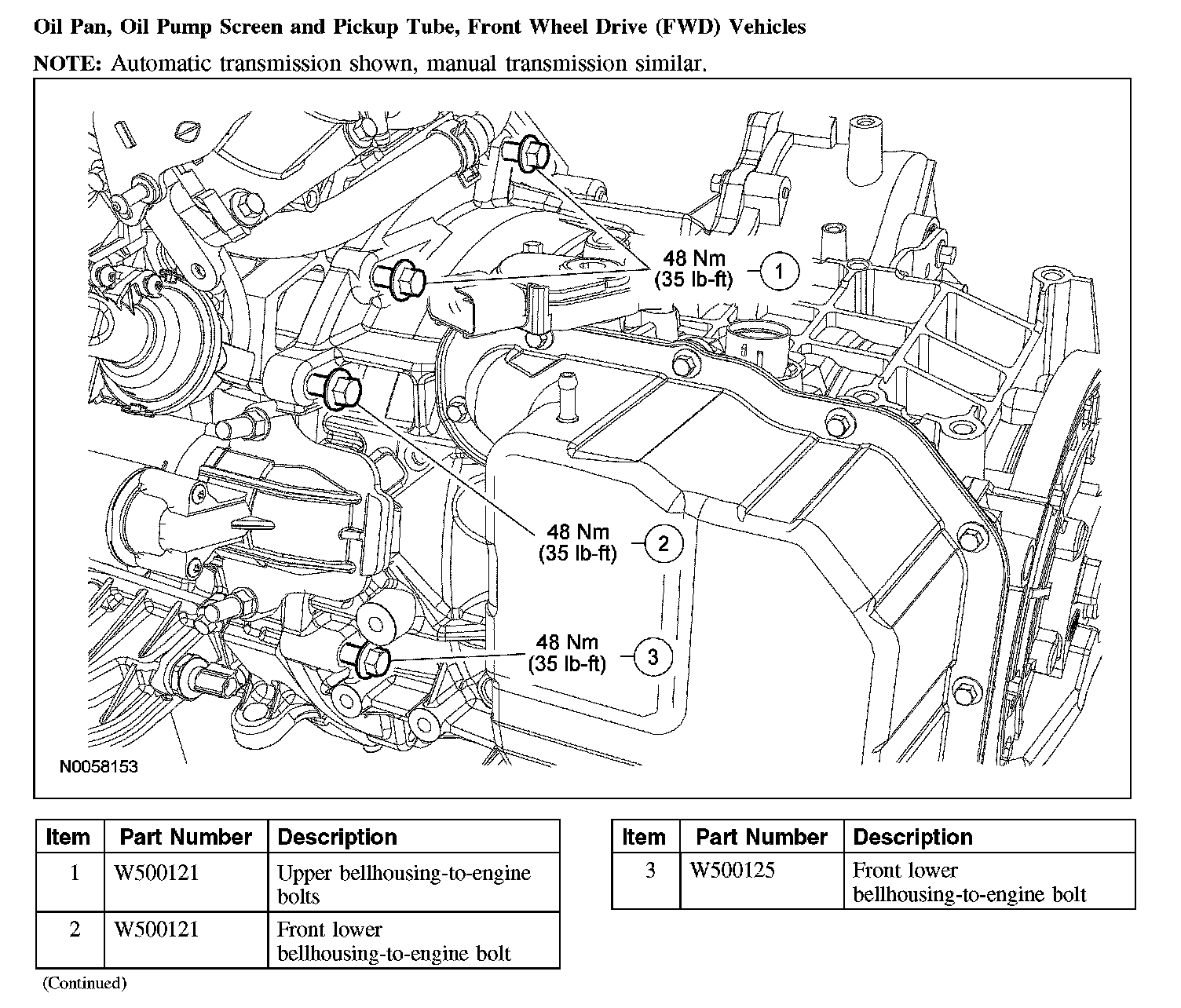

Oil Pan, Oil Pump Screen and Pickup Tube, Front Wheel Drive (FWD) Vehicles:
