Toe Adjustment - Rear
Toe Adjustment - Rear1. Using alignment equipment and the manufacturer's instructions, measure the rear toe.
2. Start the engine and center the steering wheel.
3. Turn the engine OFF and, using a suitable steering wheel holding device, lock the steering wheel in the straight-ahead position.

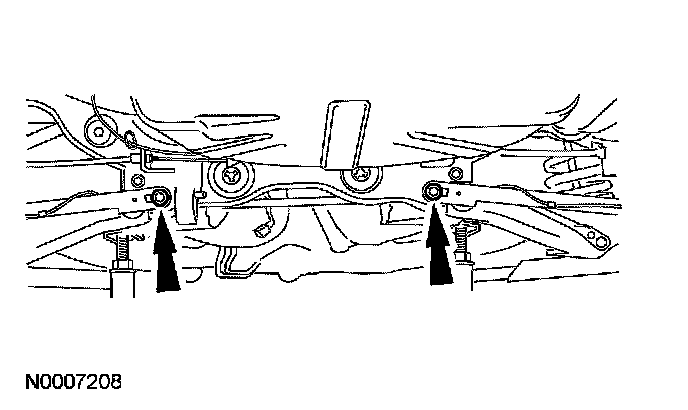

4. Loosen the toe link nut approximately one full turn.
5. From the opposite side, rotate the toe link bolt to achieve the specified toe setting.
6. CAUTION: Make sure that the toe settings are not disturbed while tightening the nuts.
While holding the toe link bolt, tighten the nut to 100 Nm (74 ft. lbs.).
7. Recheck the toe settings and adjust as necessary.
