Digital Transmission Range (TR) Sensor: Removal

  1. Place the transaxle range selector lever in NEUTRAL.
    Fig 1: Placing Transaxle Range Selector Lever In NEUTRAL
    G03956837Courtesy of FORD MOTOR CO.
  2. Disconnect the mass air flow (MAF) sensor and the breather tubes.
    Fig 2: Identifying Mass Air Flow (MAF) Sensor And Breather Tubes
    G03956838Courtesy of FORD MOTOR CO.
  3. Remove the engine air cleaner.
    Fig 3: Identifying Engine Air Cleaner Lid
    G03954569Courtesy of FORD MOTOR CO.
  4. Remove the air filter assembly.
    Fig 4: Identifying Air Filter Assembly
    G03956840Courtesy of FORD MOTOR CO.
  5. Disconnect the connector.
    Fig 5: Identifying Digital Transmission Range (TR) Sensor Electrical Connector
    G03956841Courtesy of FORD MOTOR CO.

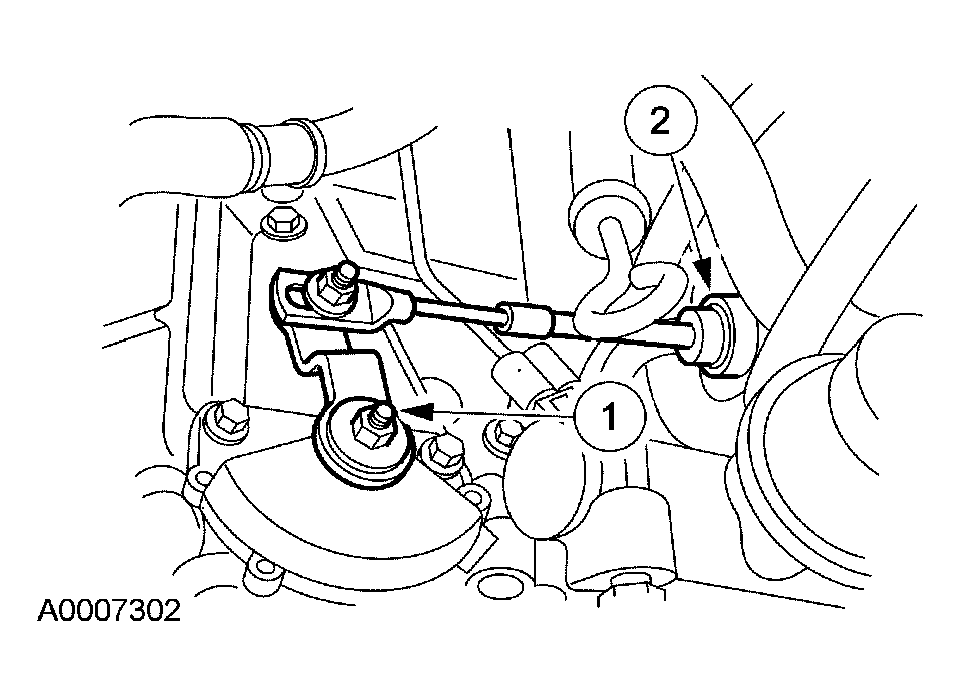

  6. Remove the manual control lever and cable.
    1. Remove the nut.
    2. Remove the manual control lever and cable.
    Fig 6: Removing Manual Control Lever And Cable
    G03956842Courtesy of FORD MOTOR CO.
  7. Remove the digital TR sensor.
    Fig 7: Locating Digital TR Sensor
    G03956843Courtesy of FORD MOTOR CO.
