Planet Assembly: Notes

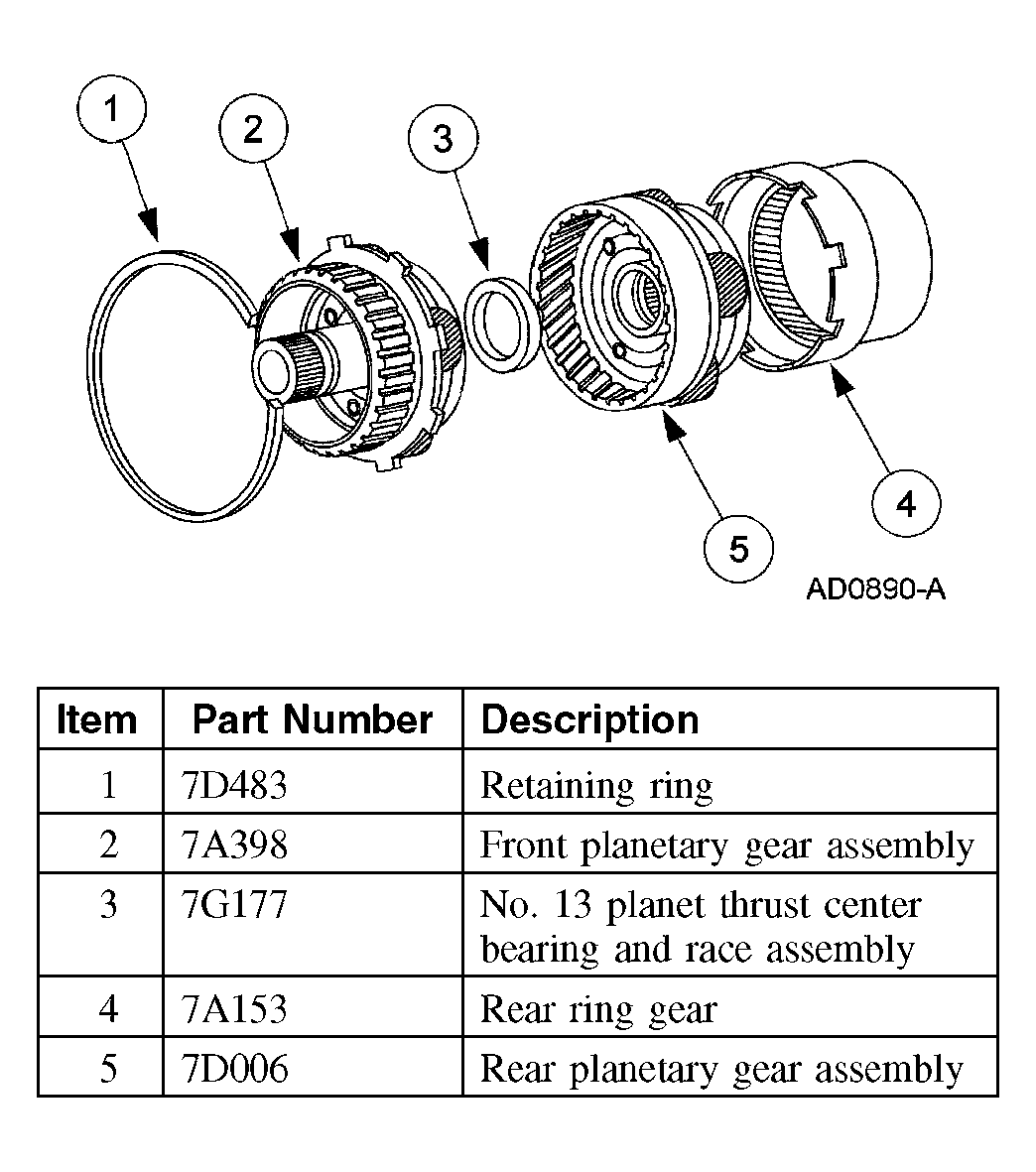

Fig 1: Exploded View Of Planet Assembly
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
