Crankshaft Position (CKP) Sensor: Notes

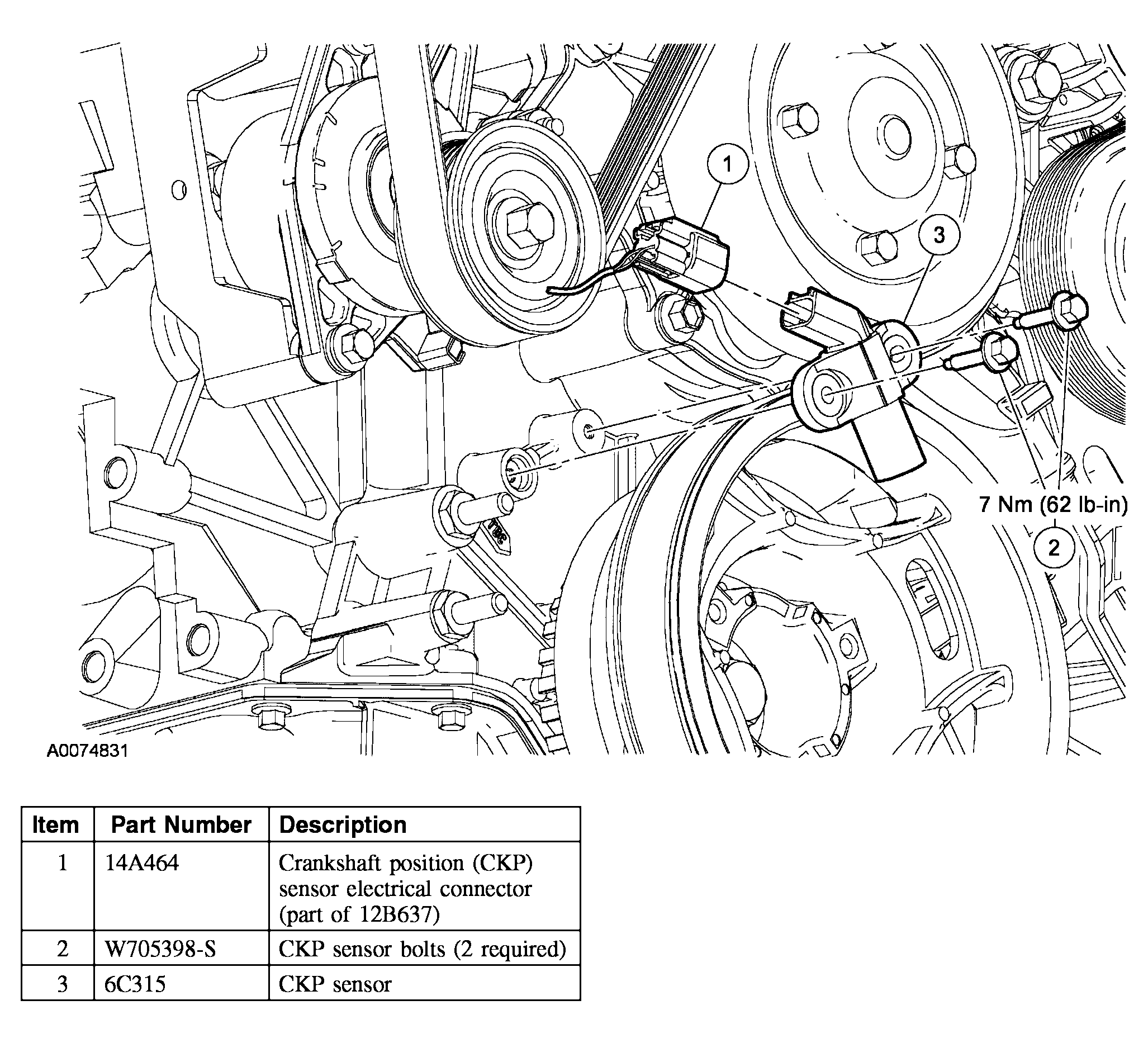

Fig 1: Installing Crankshaft Position Sensor
G04004501Courtesy of FORD MOTOR CO.
