Accelerator Cable - 3.0L (4V): Notes

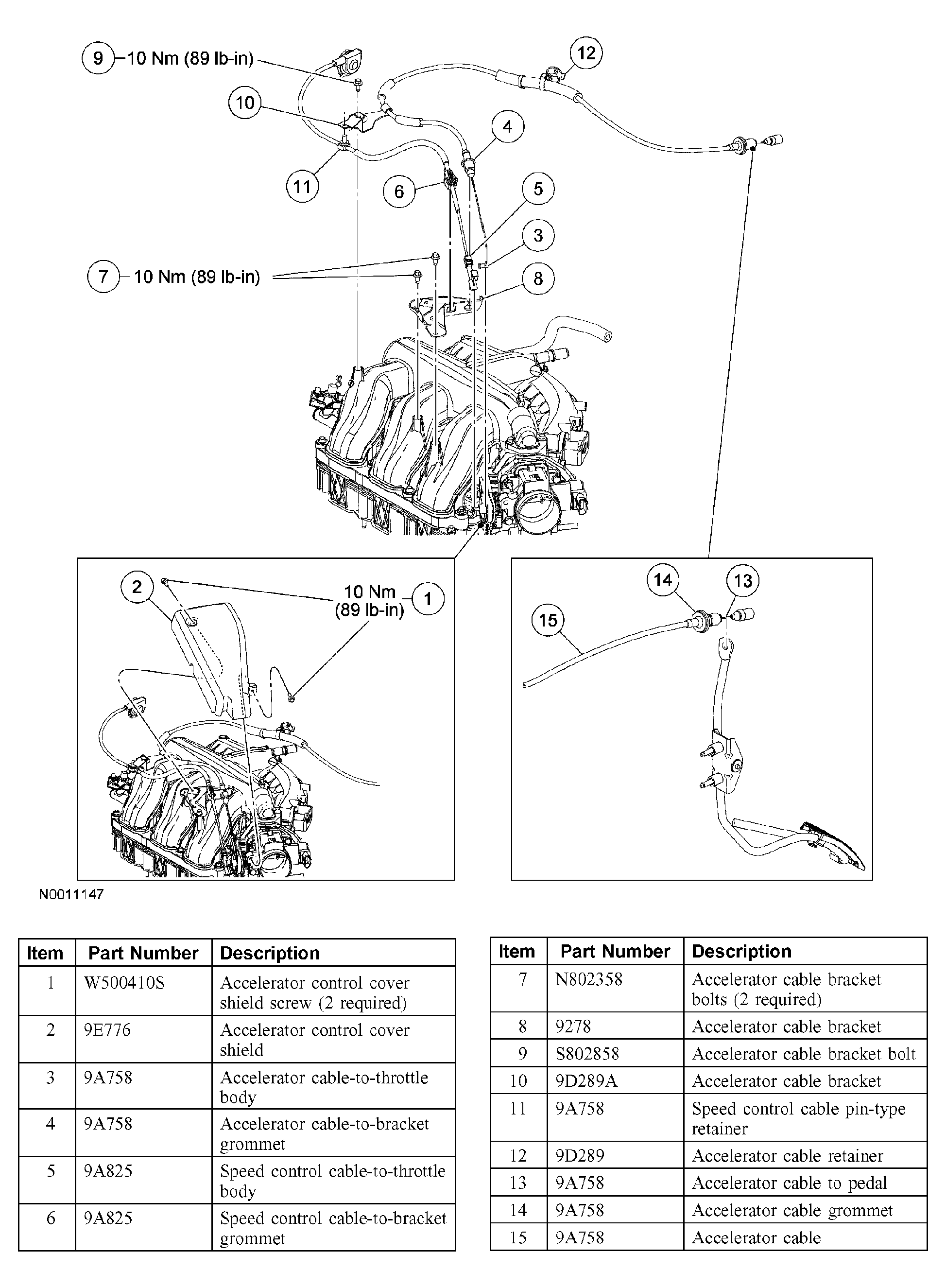

Fig 1: Replacement Components With Torque Specifications Of Accelerator Cable -- 3.0L (4V)
G03902066Courtesy of FORD MOTOR CO.
