Generator C102b

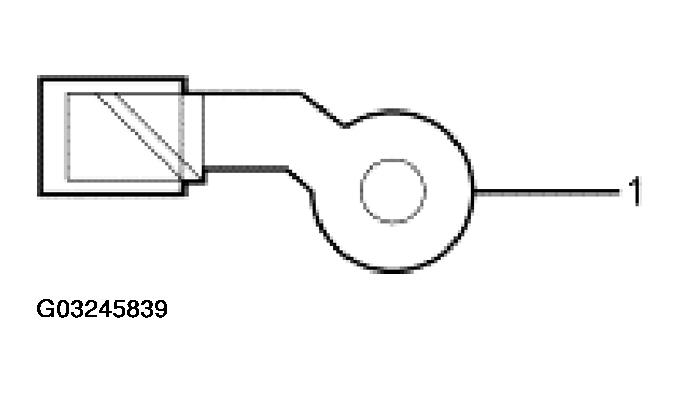

G03245839
Pin Number(s) Circuit Designation/Description Normal Condition/Measurement
1 2037 (RD) B+ from battery. 12 volts with key off 12 volts with the key on, engine off (KOEO), 10-12 volts during start, and 13-15 volts with the key on, engine running (KOER).
