Passenger Climate Controlled Seat Module C3036a

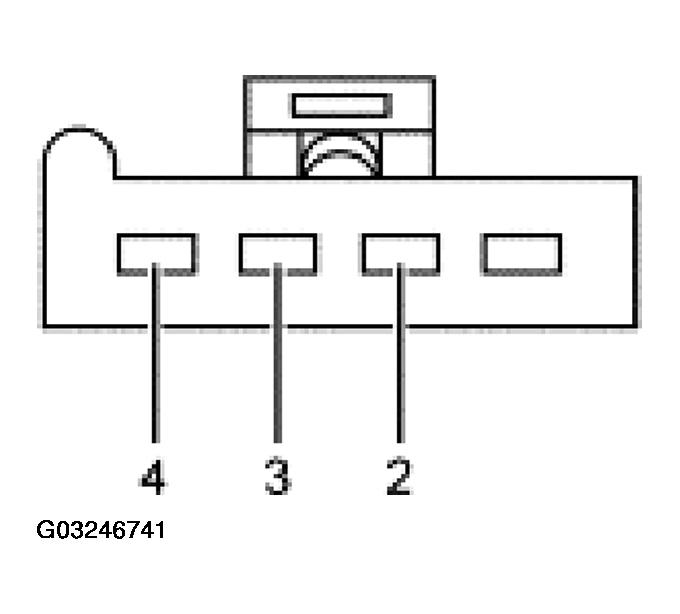

Fig 1: Identifying Passenger Climate Controlled Seat Module C3036a
G03246741Courtesy of FORD MOTOR CO.
PASSENGER CLIMATE CONTROLLED SEAT MODULE C3036A PIN CIRCUIT REFERENCE

Pin Number(s) Circuit Designation/Description Normal Condition/Measurement
2 CKT 294 (PK/YE) Battery voltage from Smart Junction Box (SJB) Greater than 10 volts when switch is in the run position.
3 CKT 1205 (BK) Ground Continuity to ground, less than 5 ohms.
4 CKT 51 (DG) Battery voltage from BEC Greater than 10 volts at all times.
