Pinpoint Test Q: Steering Wheel Control Switch Is Inoperative/Does Not Operate Correctly

WARNING: This page is about a different car, the 2003 Mercury Marauder, 2003 Mercury Grand Marquis, and 2003 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.

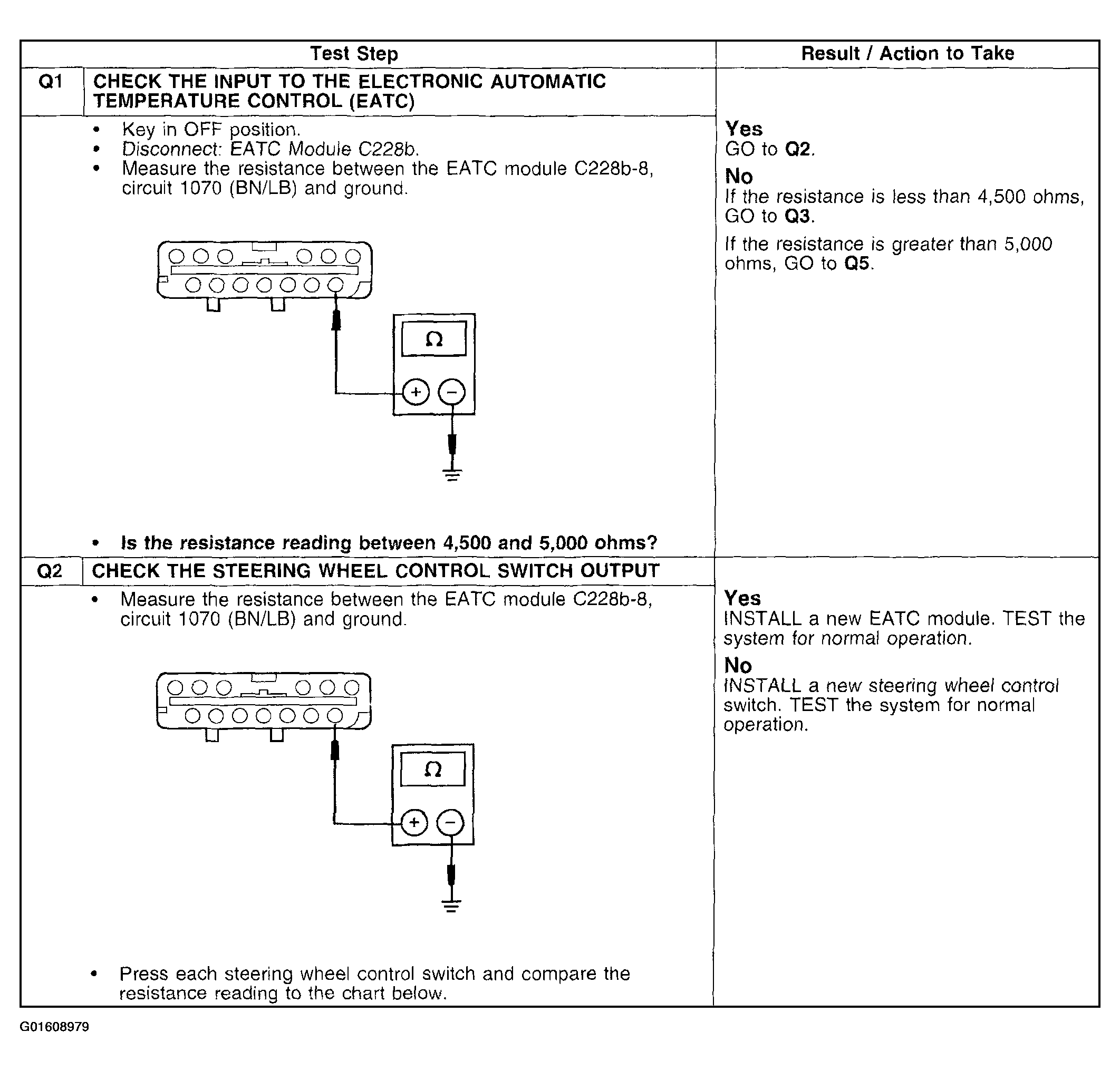

Fig 1: Pinpoint Test Q: Steering Wheel Control Switch Is Inoperative/Does Not Operate Correctly (Q1-Q2)
G01608979Courtesy of FORD MOTOR CO.

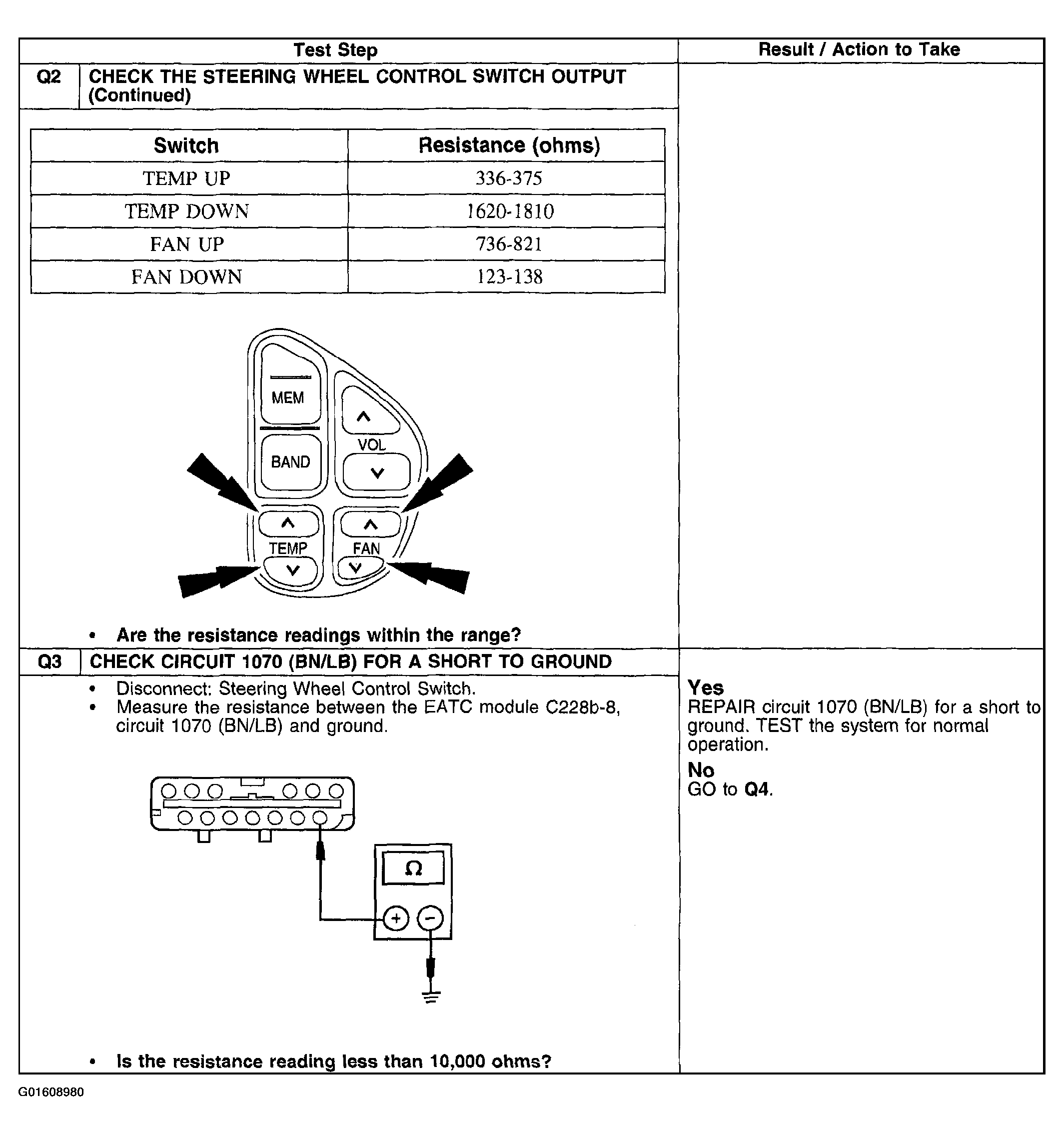

Fig 2: Pinpoint Test Q: Steering Wheel Control Switch Is Inoperative/Does Not Operate Correctly (Q2 Cont.-Q3)
G01608980Courtesy of FORD MOTOR CO.

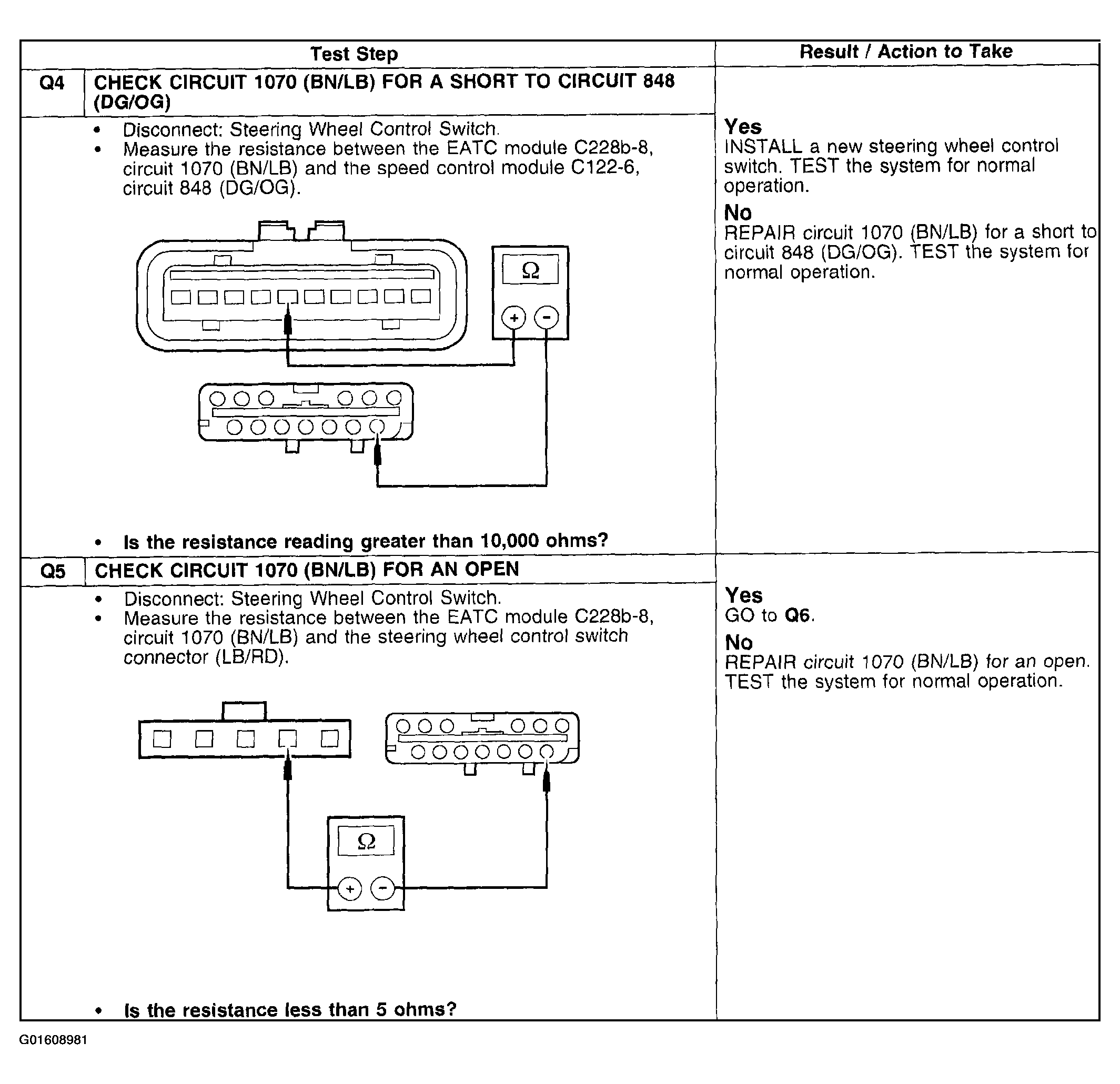

Fig 3: Pinpoint Test Q: Steering Wheel Control Switch Is Inoperative/Does Not Operate Correctly (Q4-Q5)
G01608981Courtesy of FORD MOTOR CO.

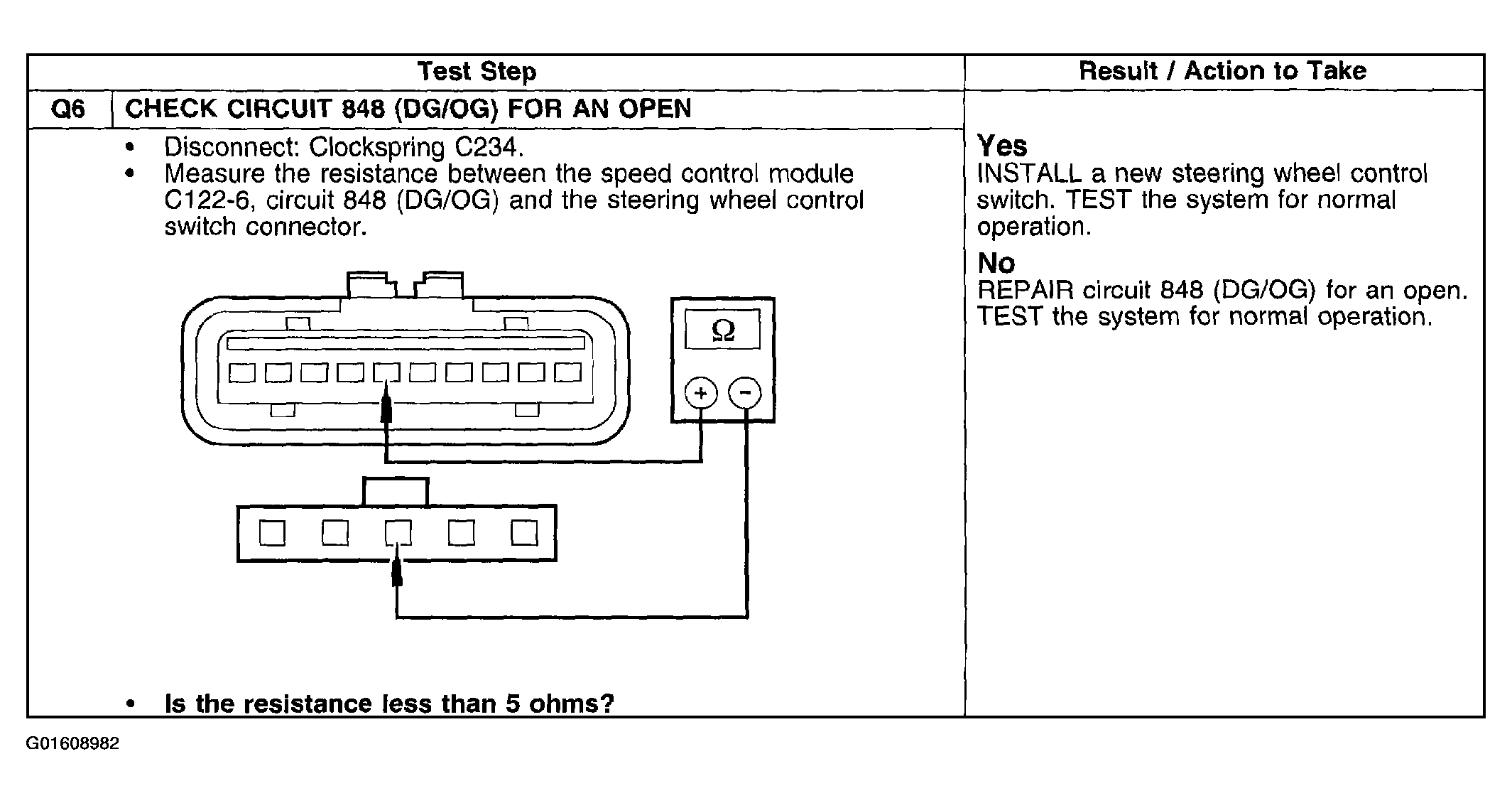

Fig 4: Pinpoint Test Q: Steering Wheel Control Switch Is Inoperative/Does Not Operate Correctly (Q6)
G01608982Courtesy of FORD MOTOR CO.
