Symptom Chart

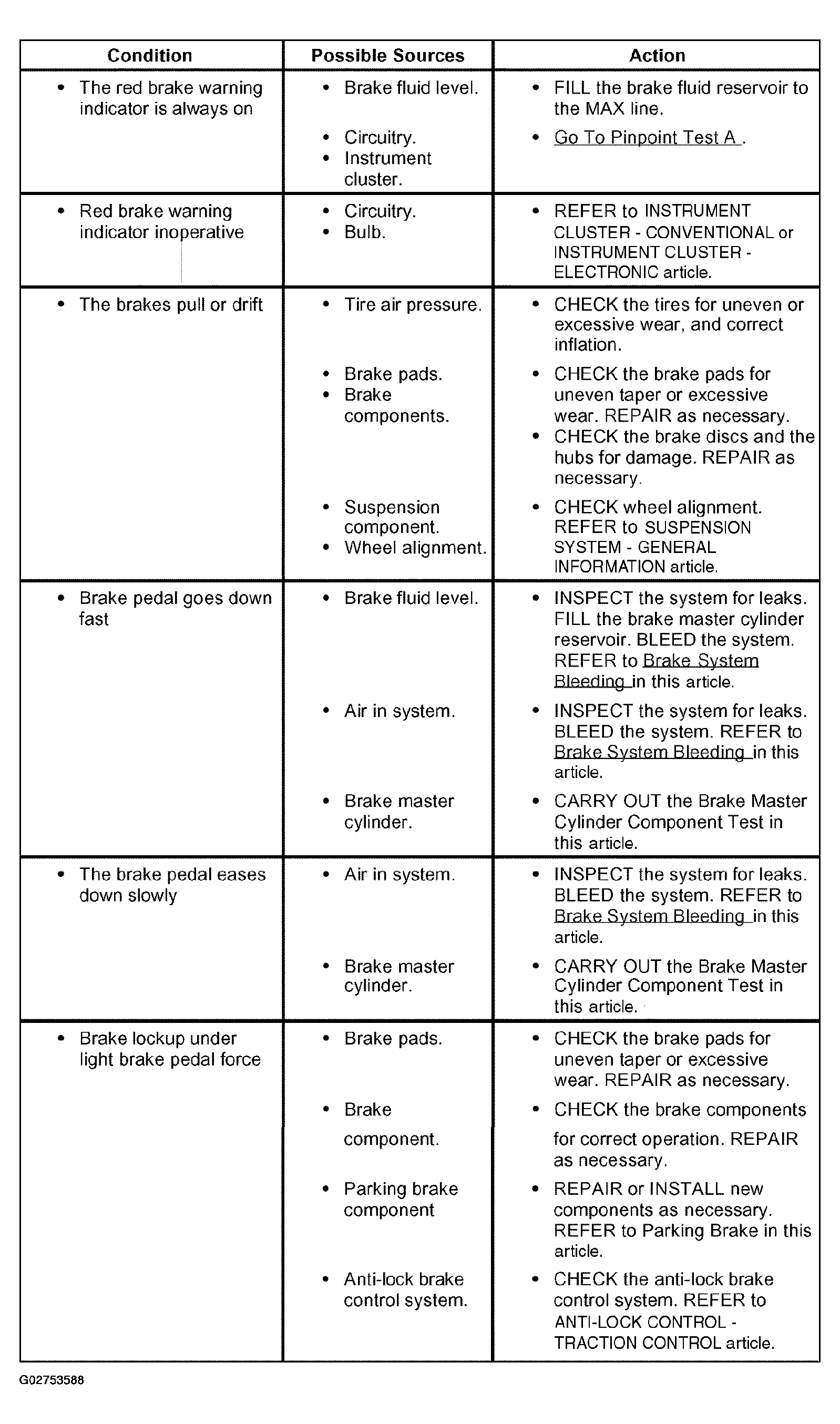

Fig 1: Symptom Chart (1 of 3)
G02753588Courtesy of FORD MOTOR CO.

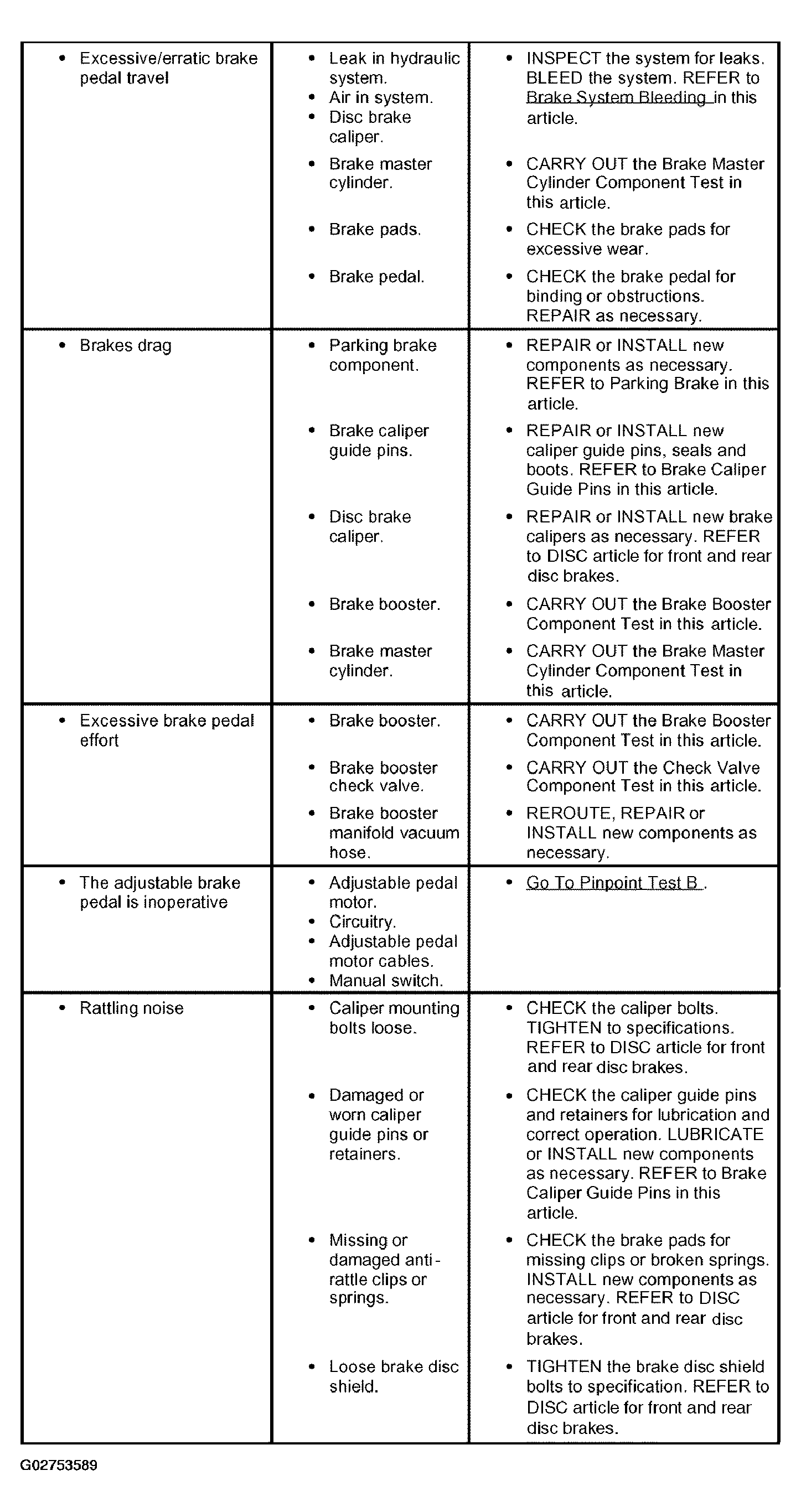

Fig 2: Symptom Chart (2 of 3)
G02753589Courtesy of FORD MOTOR CO.

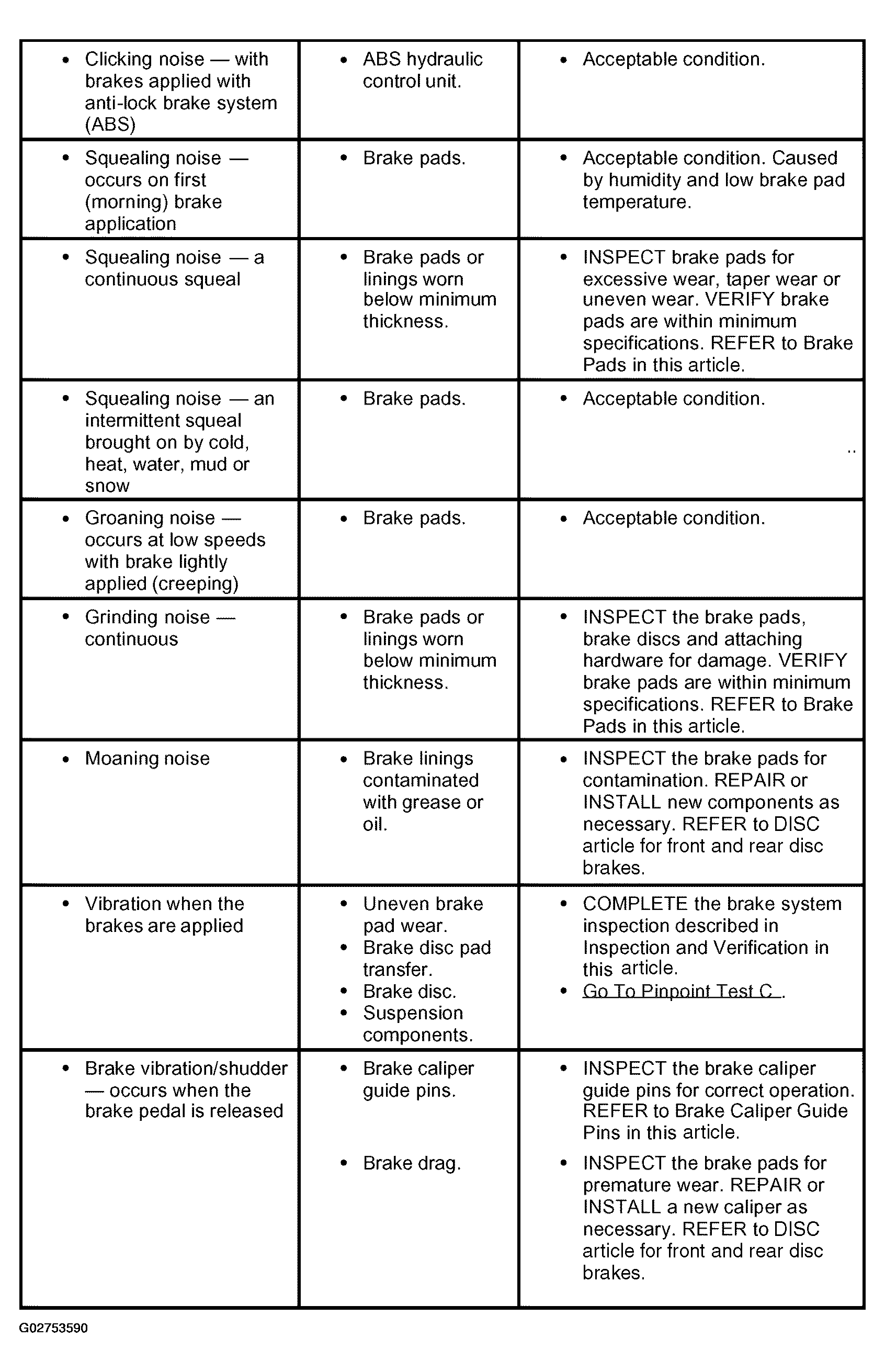

Fig 3: Symptom Chart (3 of 3)
G02753590Courtesy of FORD MOTOR CO.
