Pinpoint Test C: Control Linkage Is Binding

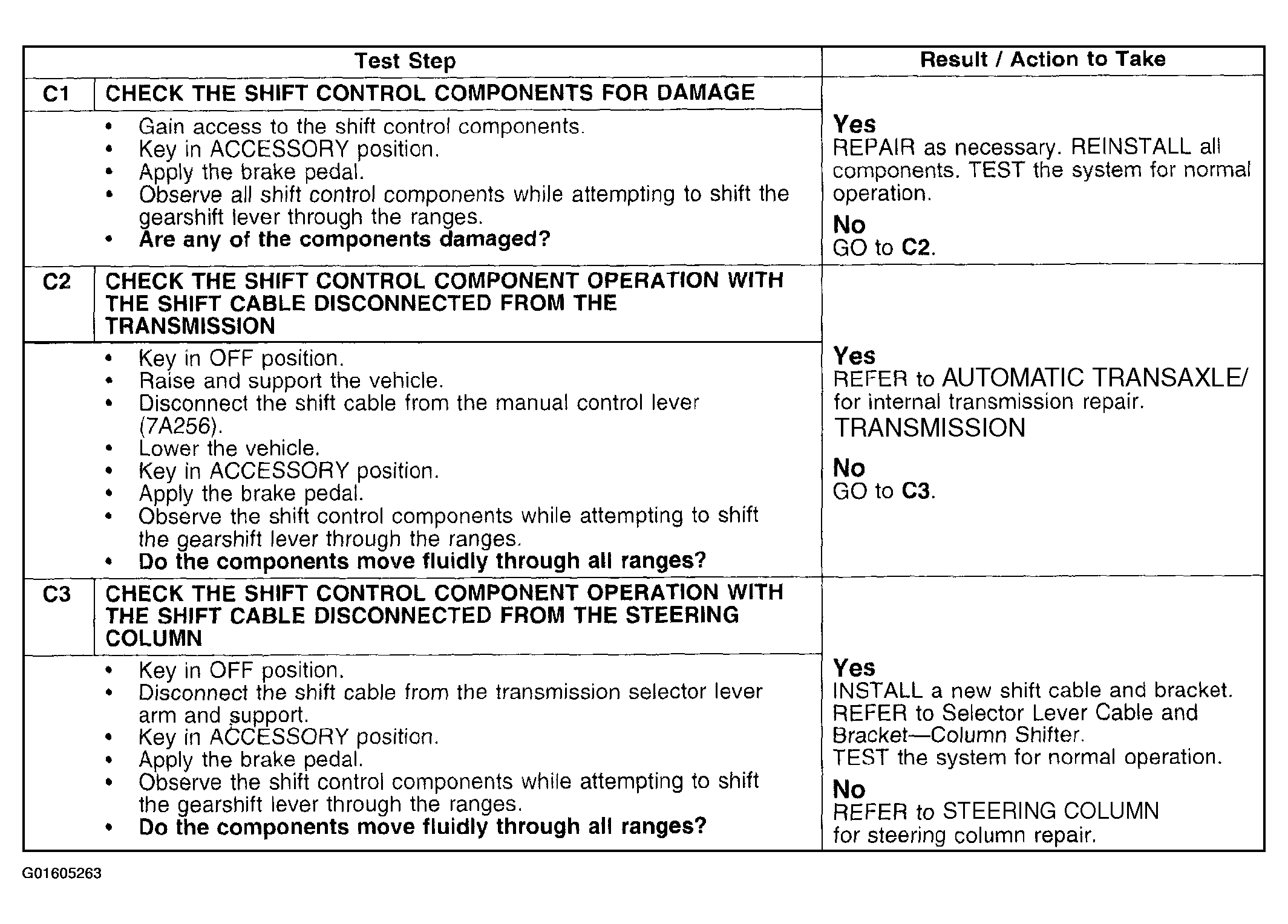

Fig 1: Pinpoint Test C: Control Linkage Is Binding
G01605263Courtesy of FORD MOTOR CO.
