Hydraulic System: Notes

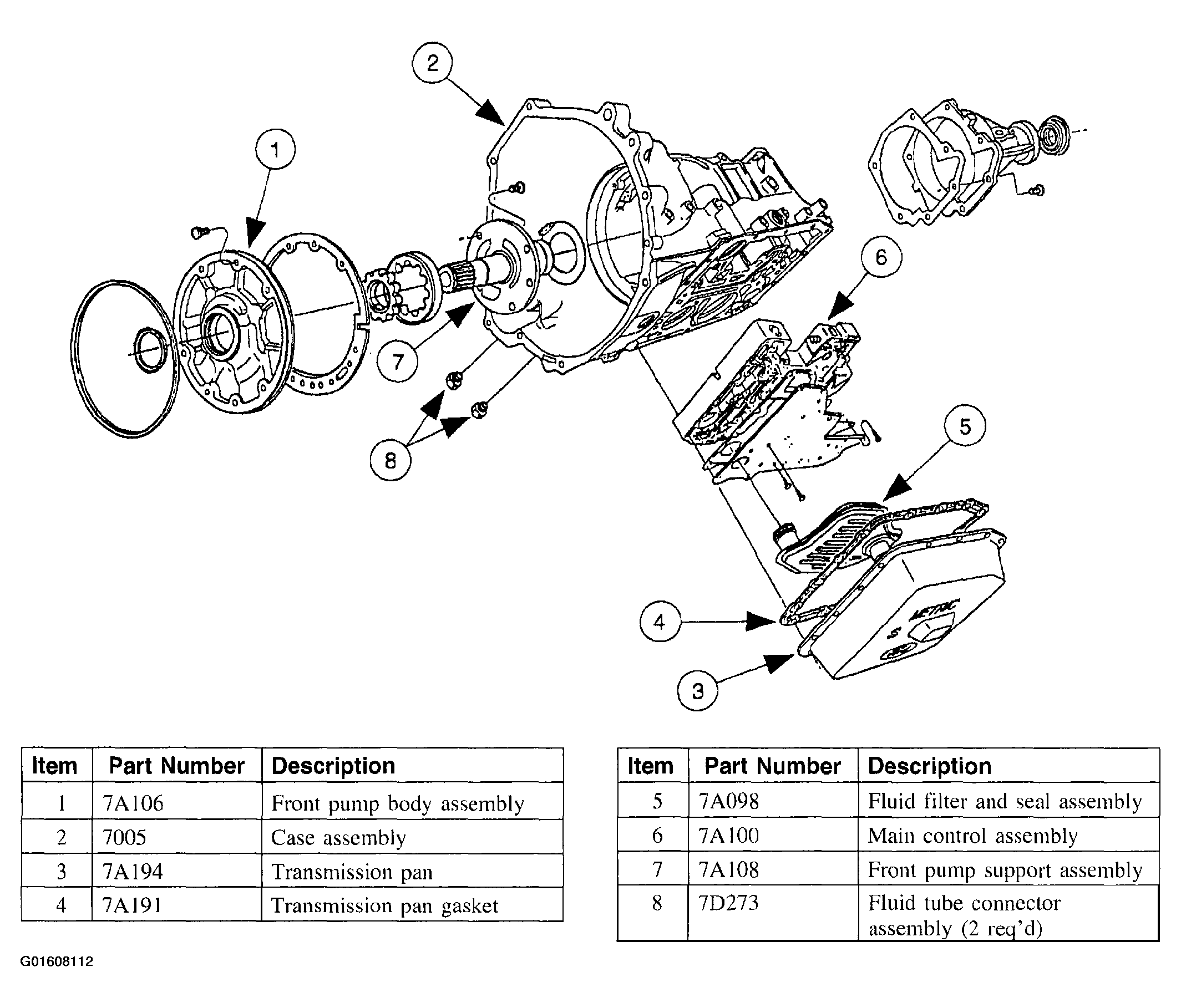

Fig 1: Identifying Hydraulic System Components

G01608112

Courtesy of FORD MOTOR CO.
