Possible Causes

WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

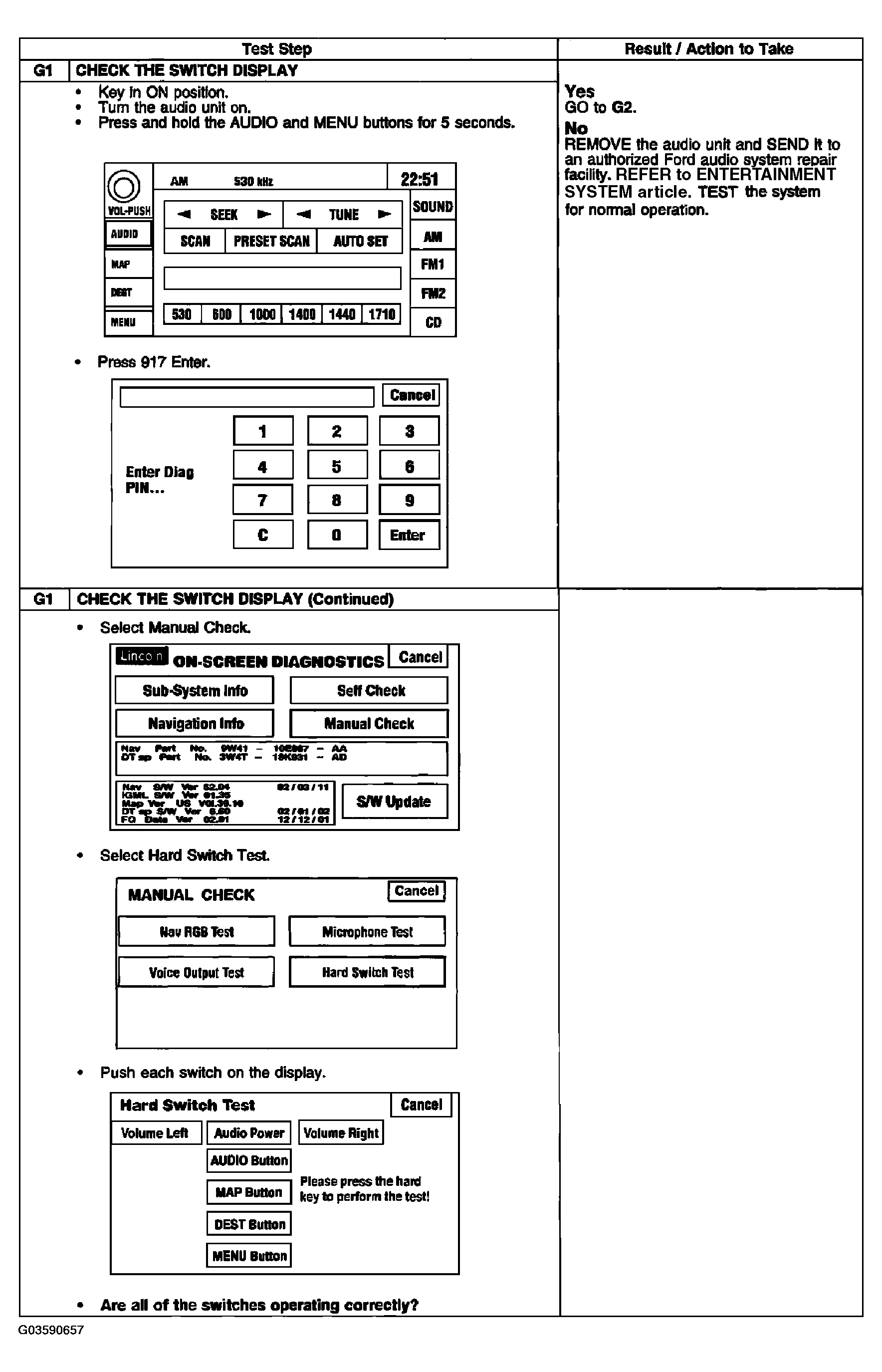

Fig 1: Pinpoint Test G: Navigation System Does Not Operate Correctly - Navigation Screen Is Inoperative (Step G1)
G03590657Courtesy of FORD MOTOR CO.

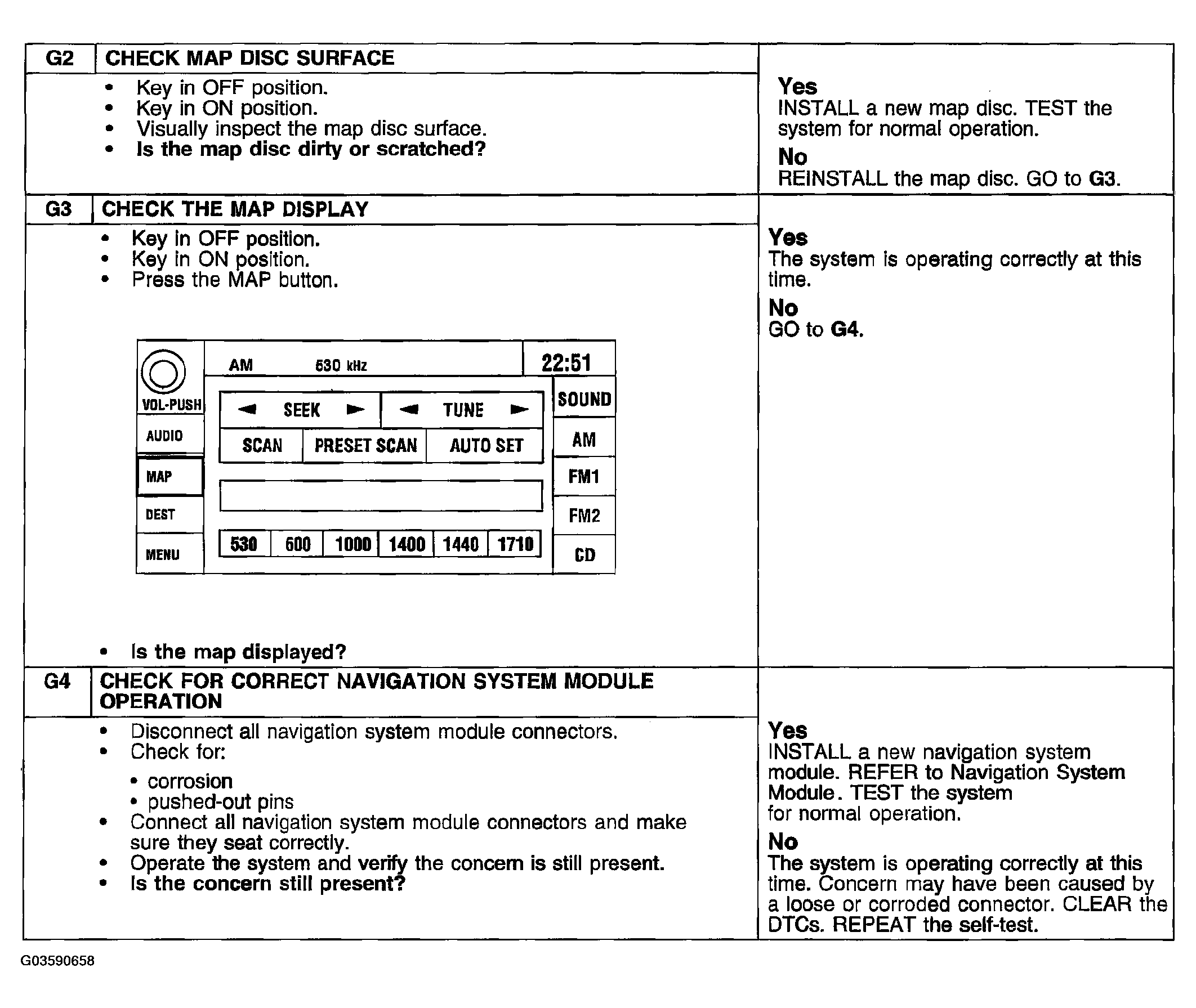

Fig 2: Pinpoint Test G: Navigation System Does Not Operate Correctly - Navigation Screen Is Inoperative (Step G2-G4)
G03590658Courtesy of FORD MOTOR CO.
