Transaxle Fluid Drain and Refill: Draining

  1. Raise and support the vehicle. .
  2. Position a suitable drain pan under the transaxle drain plug.
    3. NOTE: Measure the fluid removed to aid in transaxle filling.

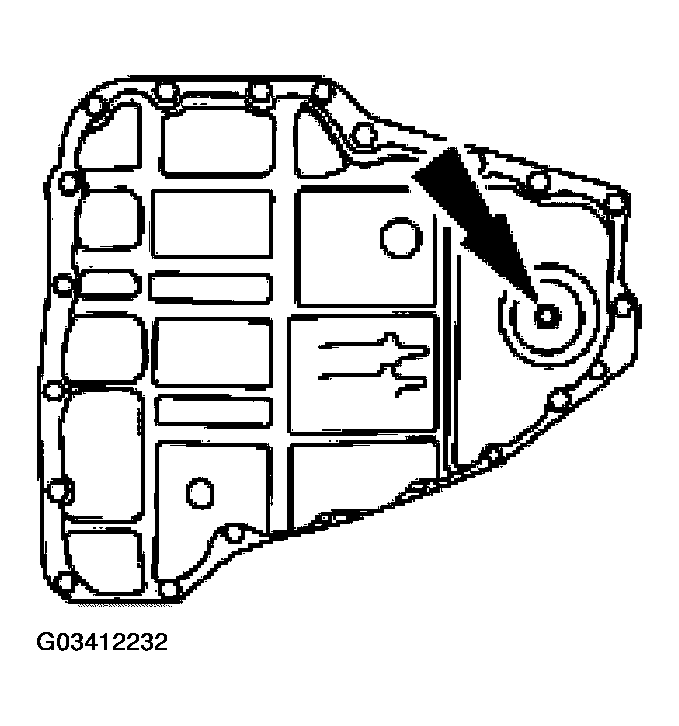

    Fig 1: Identifying Drain Transaxle Fluid
    G03412232Courtesy of FORD MOTOR CO.
  3. Drain the transaxle fluid.
  4. Remove the drain plug gasket.
