Pinpoint Test B: Steering Is Very Difficult/Very Easy

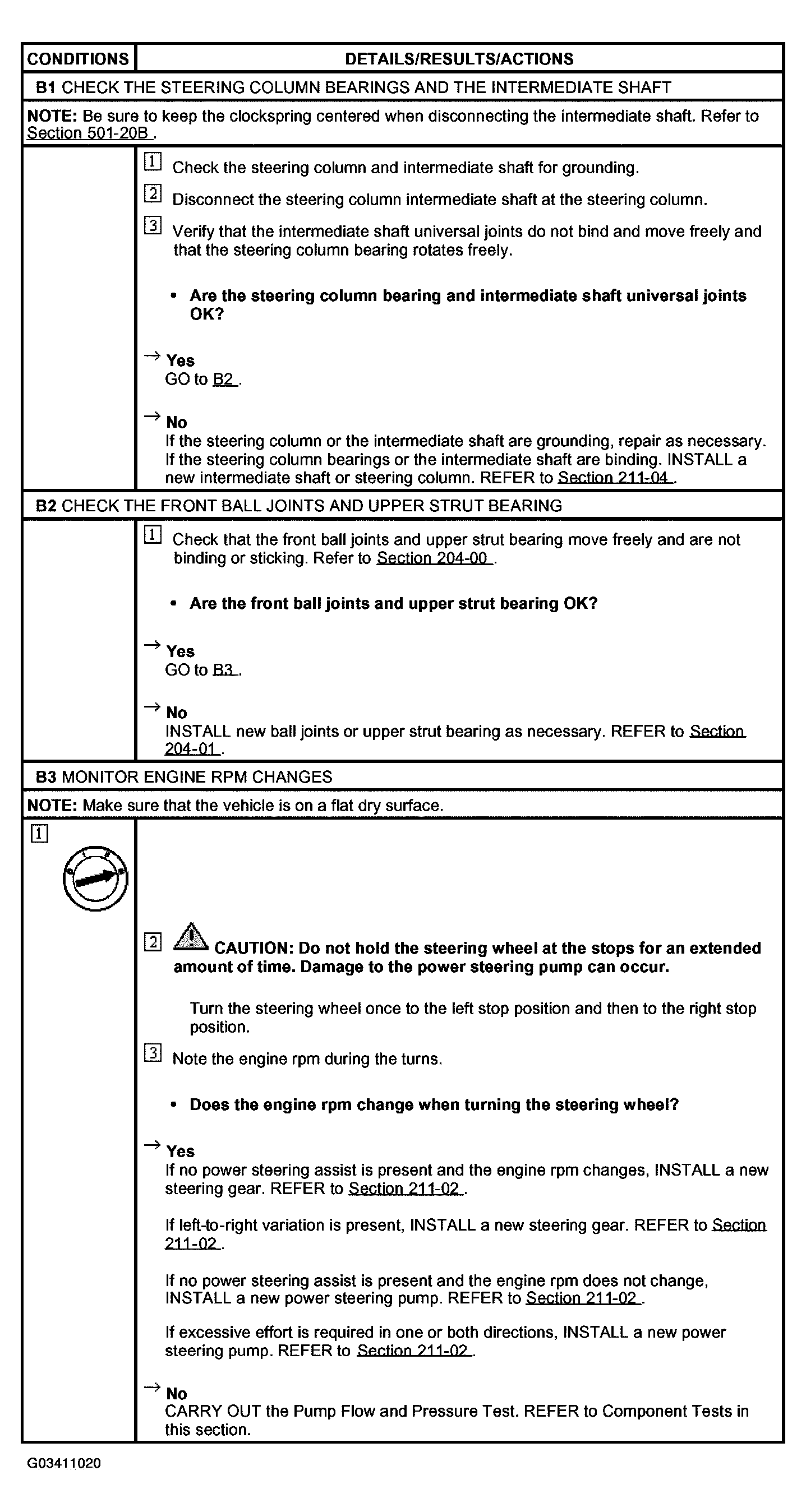

Fig 1: Pinpoint Test B: Steering Is Very Difficult/Very Easy
G03411020Courtesy of FORD MOTOR CO.
