Special Tool(s)

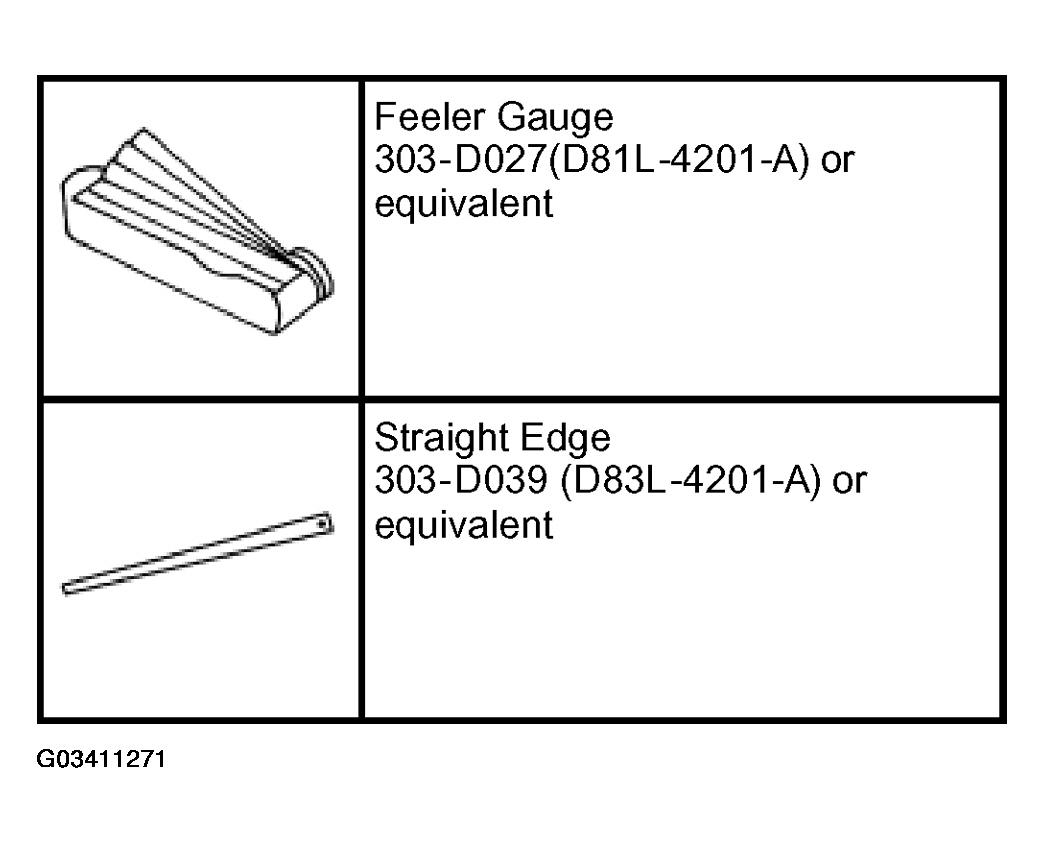

Fig 1: Identifying Intake Manifold Inspection Special Tool
G03411271Courtesy of FORD MOTOR CO.
  1. Inspect the intake manifold for flatness using a straight edge and a feeler gauge.

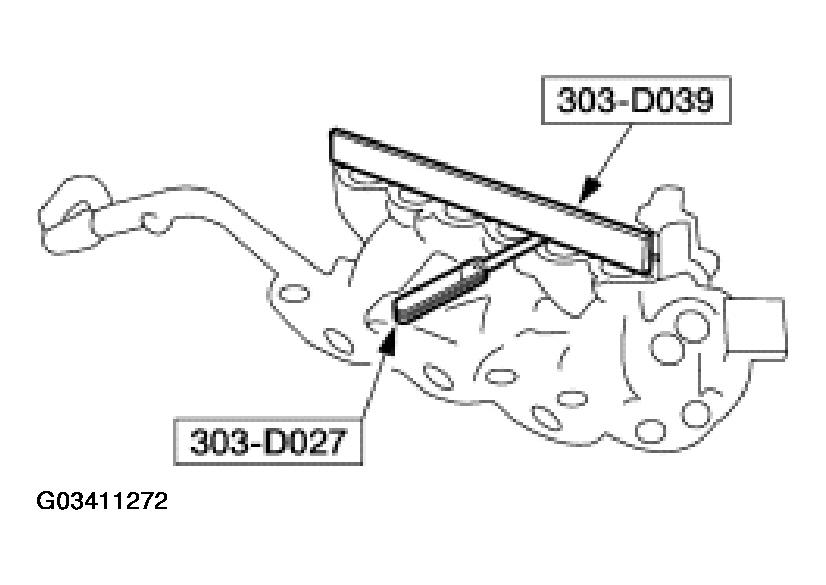

    Fig 2: Inspecting Intake Manifold For Flatness Using Feeler Gauge
    G03411272Courtesy of FORD MOTOR CO.
