Seat-Track, Third Row Bench: Removal

NOTE: RH shown; LH similar.
  1. Remove the third row bench seat. For additional information, refer to SEAT-THIRD ROW BENCH .
  2. Remove the liftgate scuff plate.
    Fig 1: Removing Liftgate Scuff Plate
    G03413394Courtesy of FORD MOTOR CO.
  3. Remove the sliding door scuff plate.

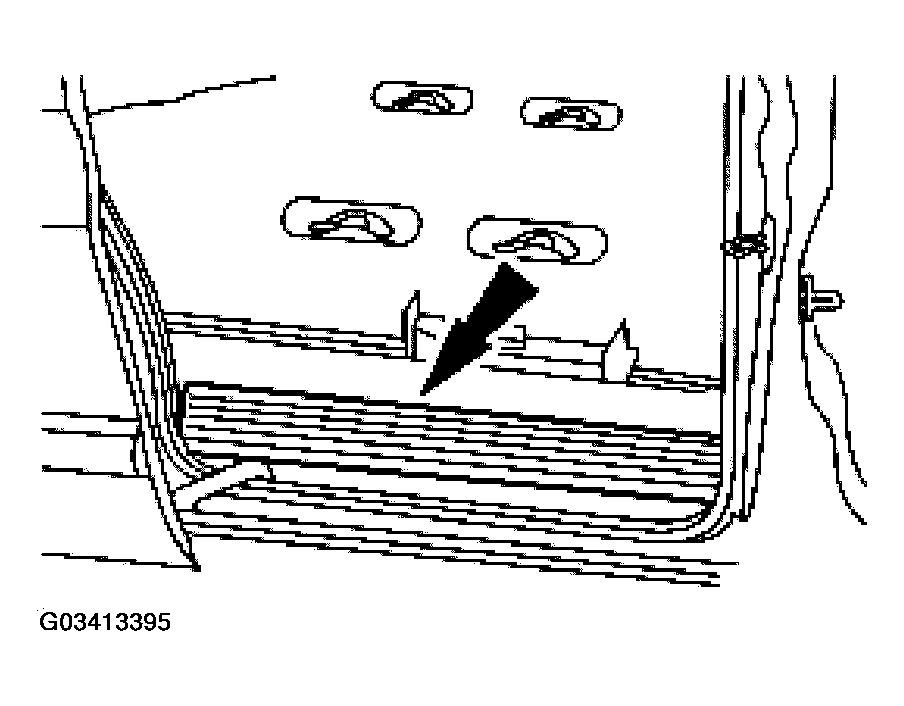

    Fig 2: Removing Sliding Door Scuff Plate
    G03413395Courtesy of FORD MOTOR CO.
  4. Position the carpet aside.

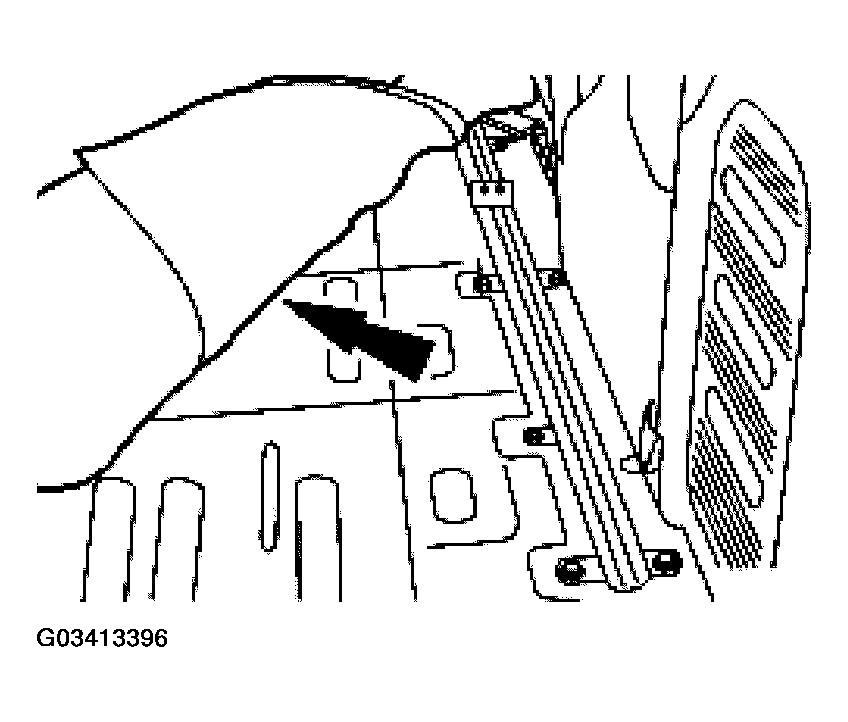

    Fig 3: Positioning Carpet Aside
    G03413396Courtesy of FORD MOTOR CO.
  5. Remove the seat track.
    1. Remove the bolts.
    2. Remove the seat track.

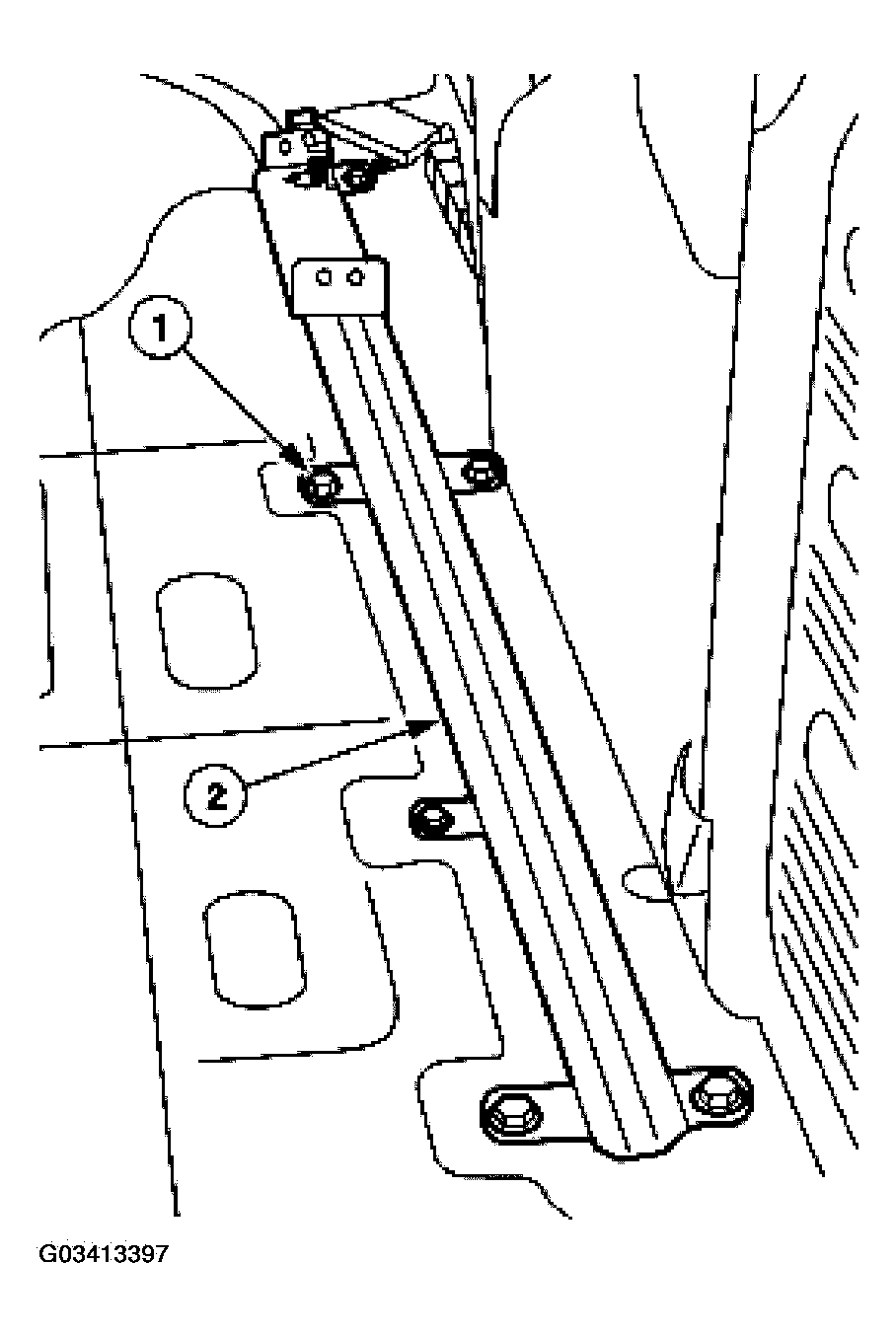

      Fig 4: Removing Seat Track
      G03413397Courtesy of FORD MOTOR CO.
