Seat-Second Row: Removal

CAUTION: Removal of the second row bench seat requires two technicians.
NOTE: Second row bench seat shown; second row bucket seat similar.
  1. Tilt the seat forward.
    1. Release the anti-chuck hook by pulling the straps.
    2. Tilt the seat forward.

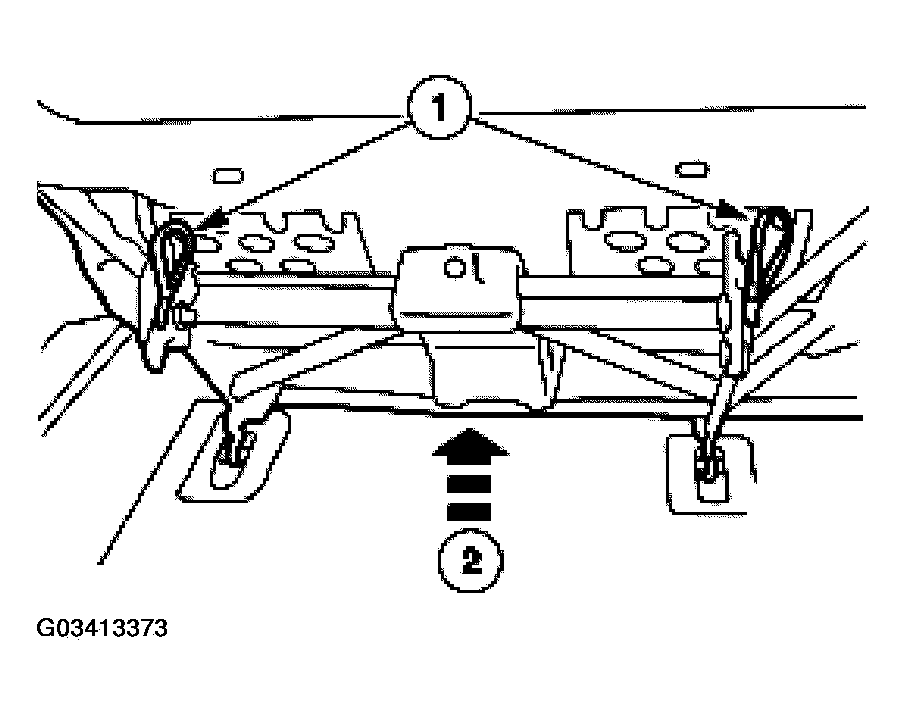

      Fig 1: Releasing Anti-Chuck Hook By Pulling Straps
      G03413373Courtesy of FORD MOTOR CO.
    2. CAUTION: Do not damage the anti-chuck hook while removing or storing the second row seat. The weight of the seat should never rest on the anti-chuck hook, as damage to the hook may occur.
  2. Remove the second row seat.
