Seat-Cushion, Second Row Bench: Disassembly

  1. Remove the seat back. For additional information, refer to SEAT BACKREST-SECOND ROW BENCH .
  2. Remove the cup holder.
    1. Remove the screws.
    2. Remove the cup holder.
      Fig 1: Removing Cup Holder
      G03413431Courtesy of FORD MOTOR CO.
  3. Remove the safety belt buckles.
    1. Using the special tool, remove the bolt.
    2. Remove the safety belt buckles.
      Fig 2: Removing Safety Belt Buckles
      G03413432Courtesy of FORD MOTOR CO.
    4. NOTE: RH shown; LH similar.
  4. Remove the anti-chuck hooks.
    1. Remove the bolts (two per hook).
    2. Remove the anti-chuck hooks.
      Fig 3: Removing Anti-Chuck Hooks
      G03413433Courtesy of FORD MOTOR CO.
    5. NOTE: RH shown; LH similar.
  5. Remove the seat back hinges.
    1. Remove the bolts (three per side).
    2. Remove the seat back hinges.
      Fig 4: Removing Seat Back Hinges
      G03413434Courtesy of FORD MOTOR CO.
  6. Remove the hinge link rod.
    Fig 5: Removing Hinge Link Rod
    G03413435Courtesy of FORD MOTOR CO.
  7. Unhook the seat cushion trim cover J-clips.
    Fig 6: Unhooking Seat Cushion Trim Cover J-Clips
    G03413436Courtesy of FORD MOTOR CO.
  8. Remove the seat cushion trim cover front hog rings.

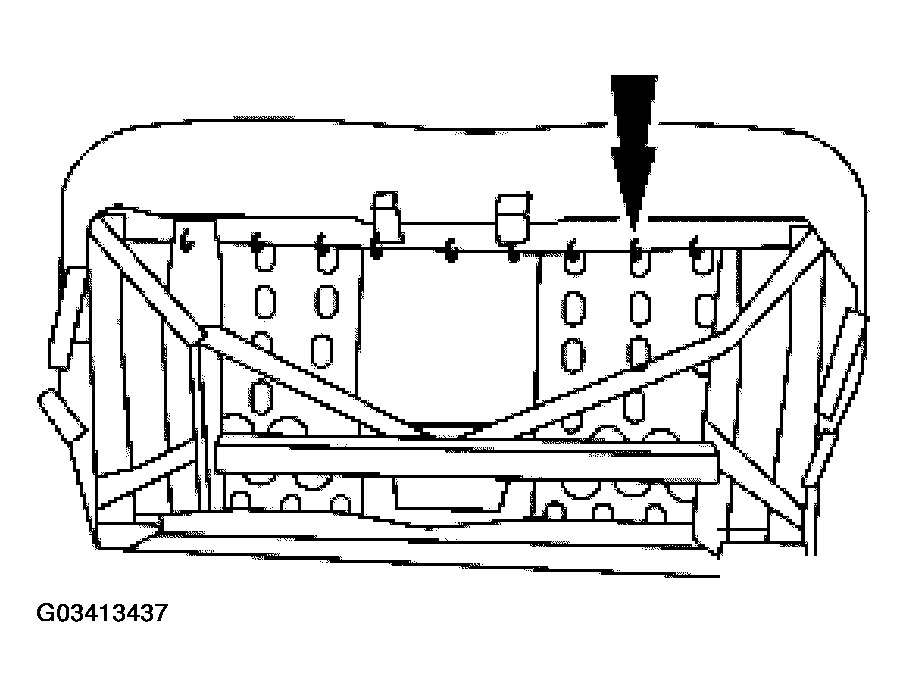

    Fig 7: Removing Seat Cushion Trim Cover Front Hog Rings
    G03413437Courtesy of FORD MOTOR CO.
  9. Remove the safety belt buckle opening hog rings.
    Fig 8: Removing Safety Belt Buckle Opening Hog Rings
    G03413438Courtesy of FORD MOTOR CO.
  10. Remove the seat cushion frame from the seat cushion and trim cover.
    1. Remove the twelve seat cushion trim cover rear hog rings.
    2. Remove the seat cushion frame from the seat cushion and trim cover.

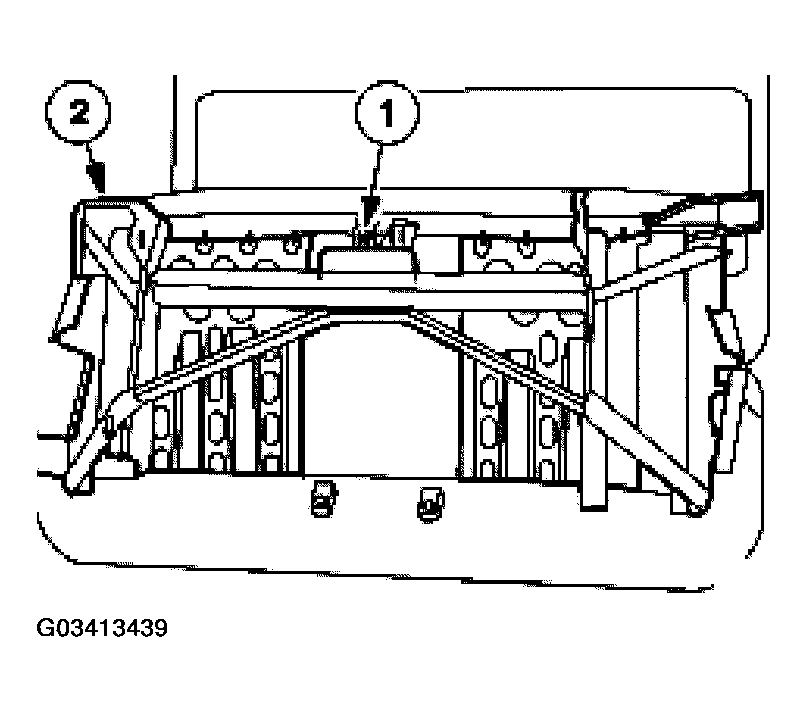

      Fig 9: Removing Seat Cushion Frame From Seat Cushion And Trim Cover
      G03413439Courtesy of FORD MOTOR CO.
