Actuator - Speed Control Servo: Installation

  1. To install, reverse the removal procedure.

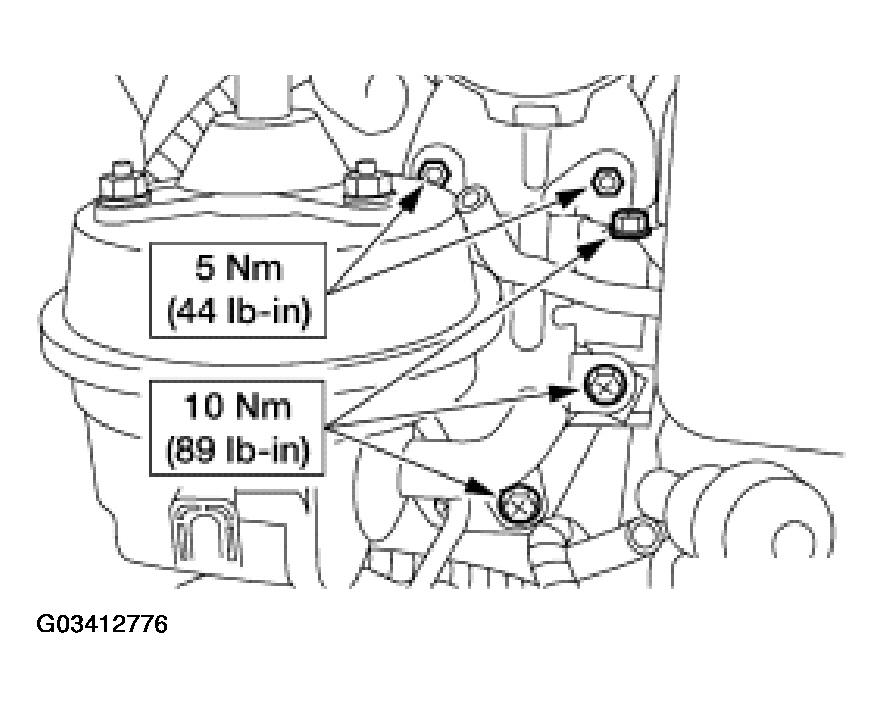

    Fig 1: Installing Speed Control Servo
    G03412776Courtesy of FORD MOTOR CO.

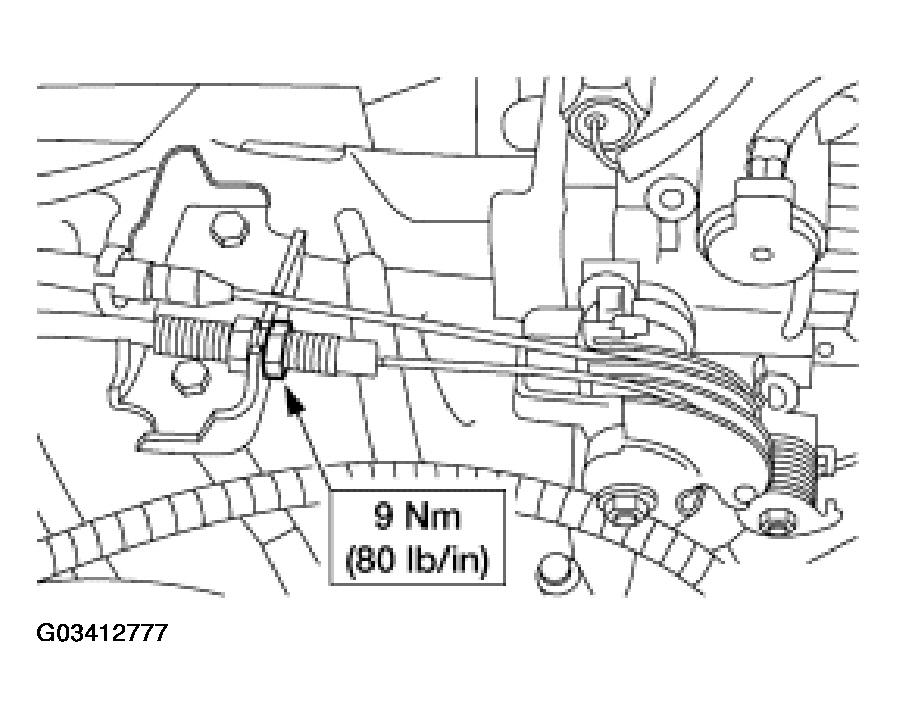

    Fig 2: Installing Speed Control Actuator Cable From Throttle
    G03412777Courtesy of FORD MOTOR CO.
