Switch Adjustment - Deactivator

    NOTE: Make sure the brake pedal is properly adjusted and at the proper height.
  1. Loosen the speed control deactivator switch locknut.
    1. Measure the distance between the brake pedal stopper and the threaded end of the speed control deactivator switch.
    2. Adjust the speed control deactivator switch to specification.
    3. Secure the speed control deactivator locknut.

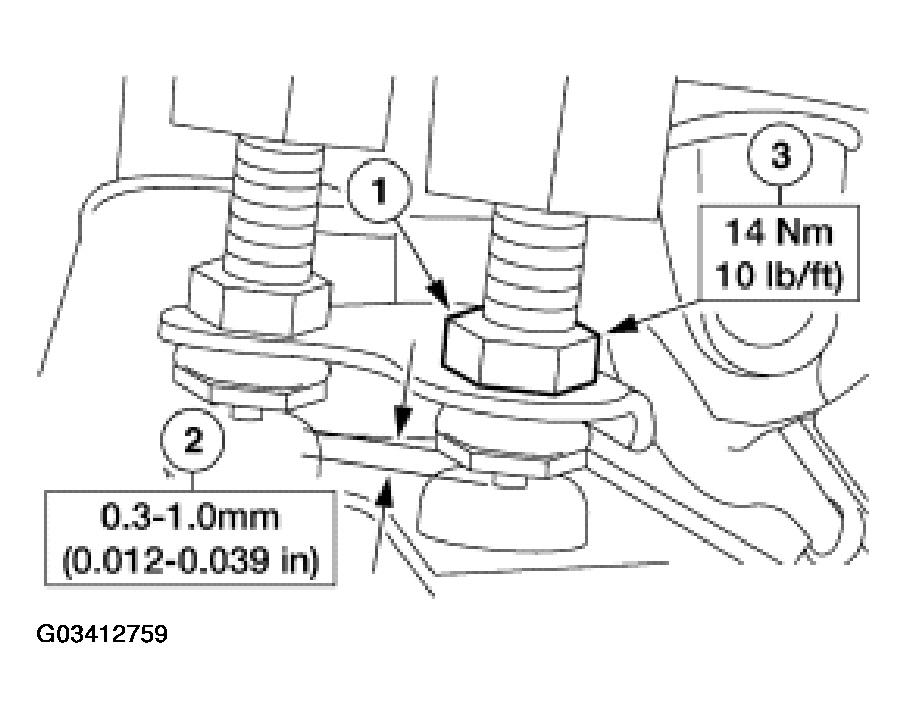

      Fig 1: Loosening Speed Control Deactivator Switch Locknut
      G03412759Courtesy of FORD MOTOR CO.
