Pinpoint Test A: The Speed Control Is Inoperative

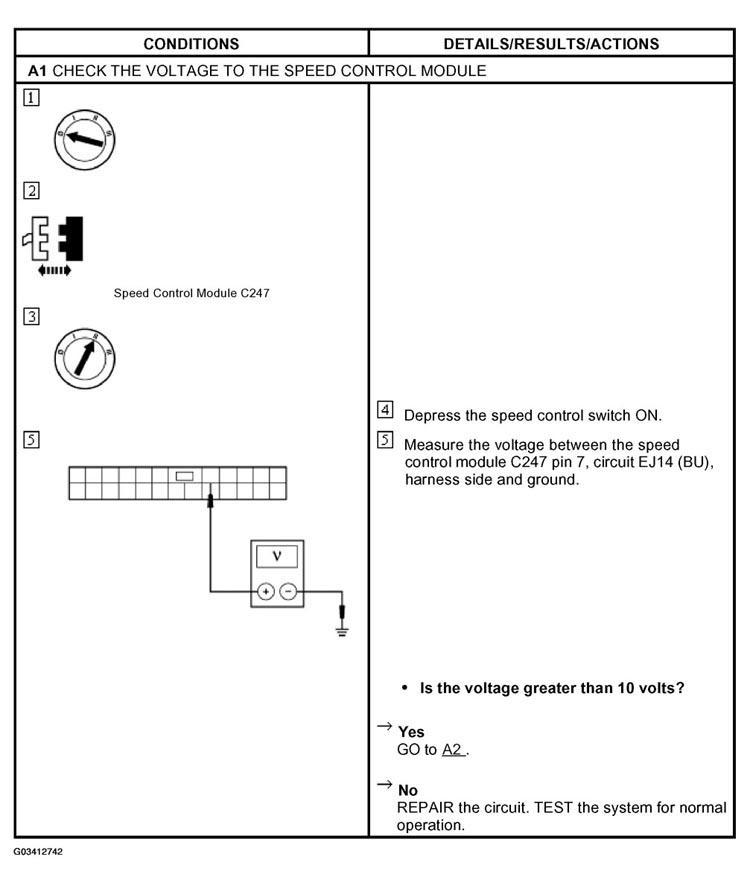

Fig 1: Pinpoint Test A: Speed Control Is Inoperative (Test A1)

Courtesy of FORD MOTOR CO.

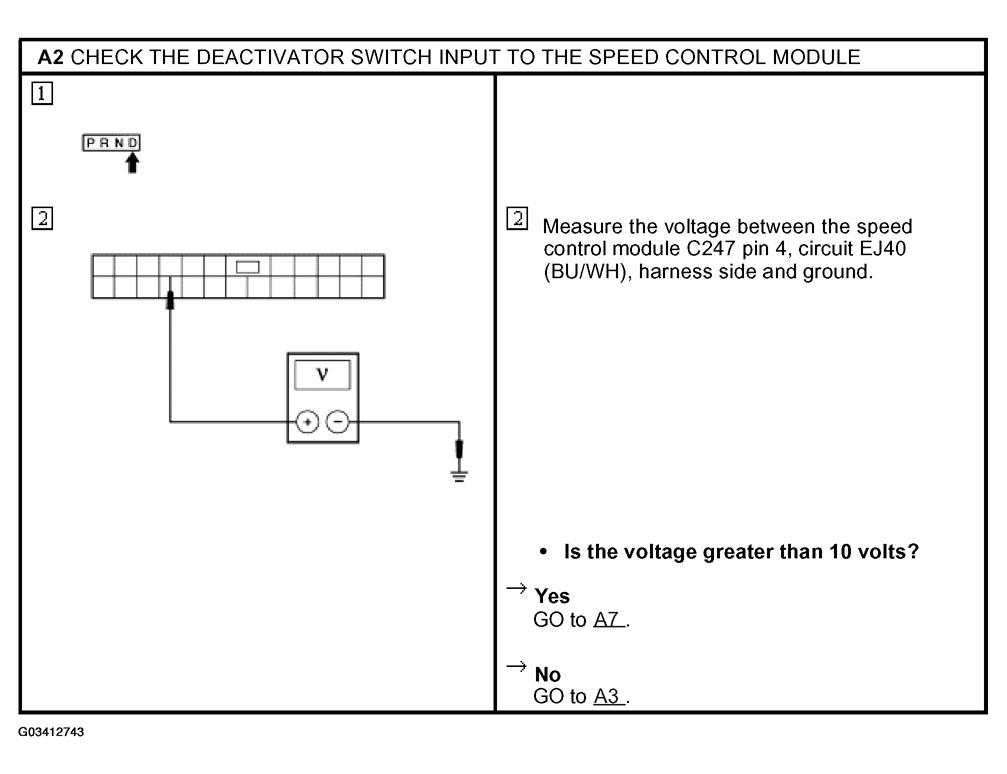

Fig 2: Pinpoint Test A: Speed Control Is Inoperative (Test A2)

Courtesy of FORD MOTOR CO.

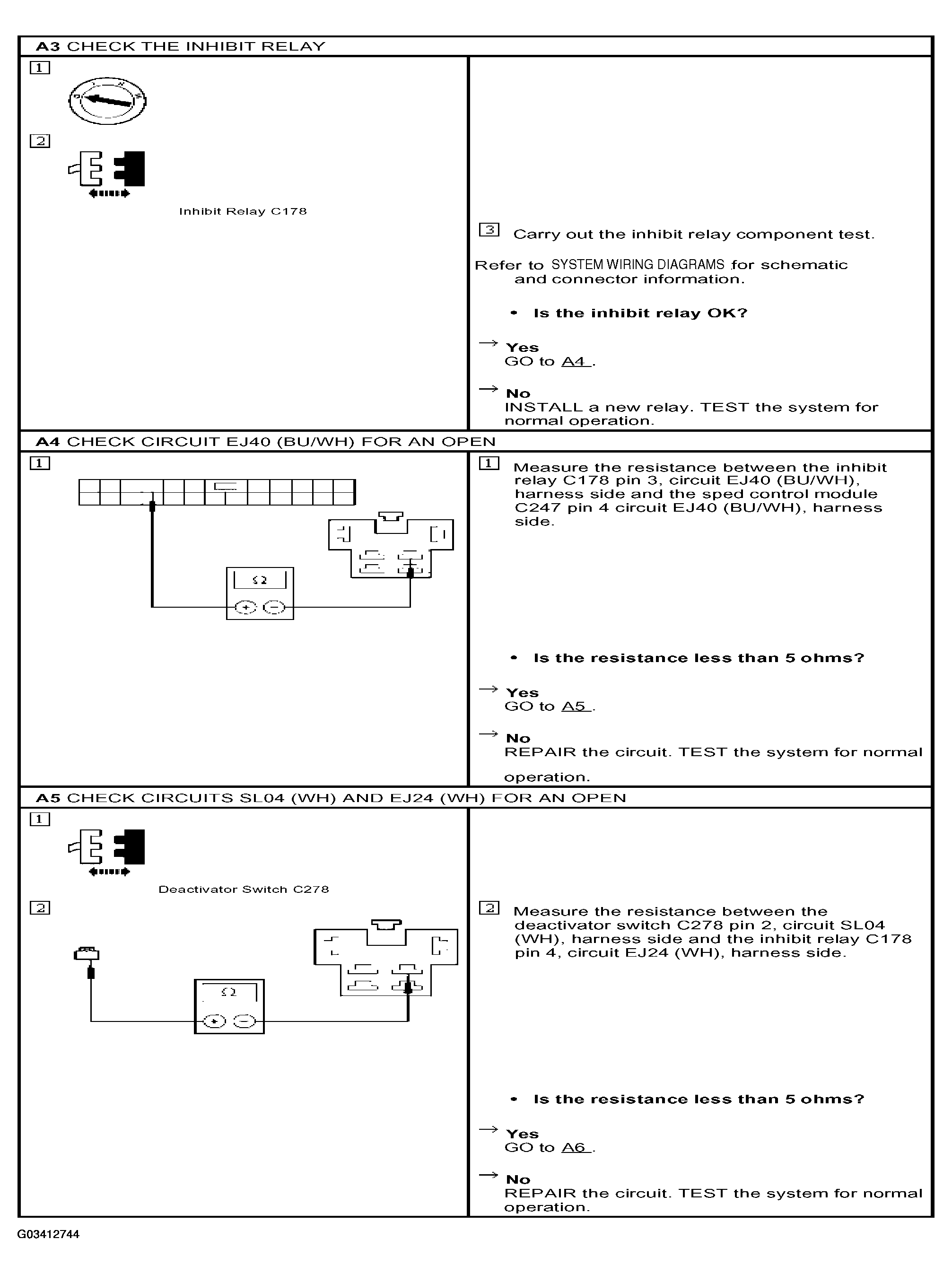

Fig 3: Pinpoint Test A: Speed Control Is Inoperative (Test A3 - A5)

Courtesy of FORD MOTOR CO.

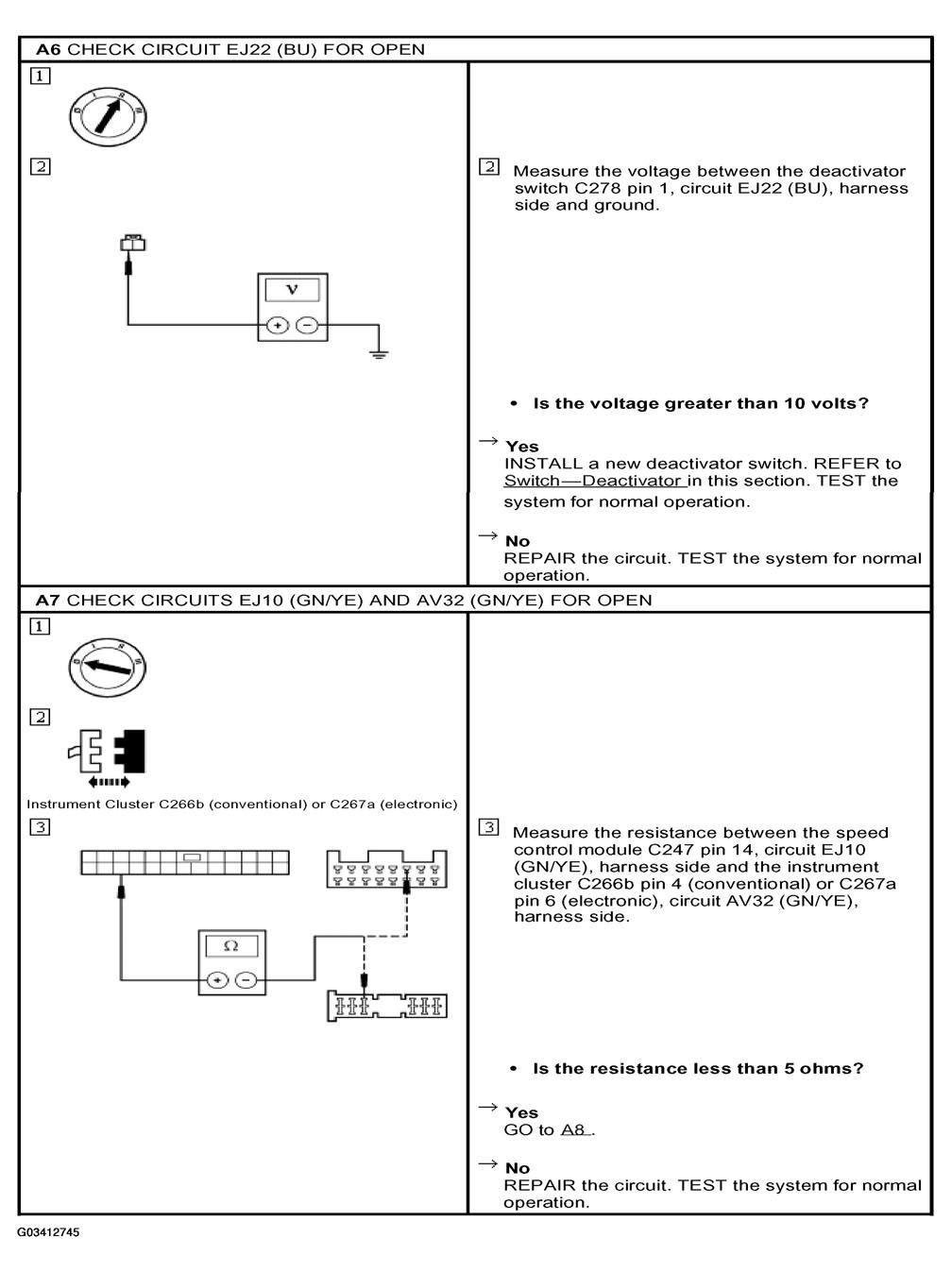

Fig 4: Pinpoint Test A: Speed Control Is Inoperative (Test A6 - A7)

Courtesy of FORD MOTOR CO.

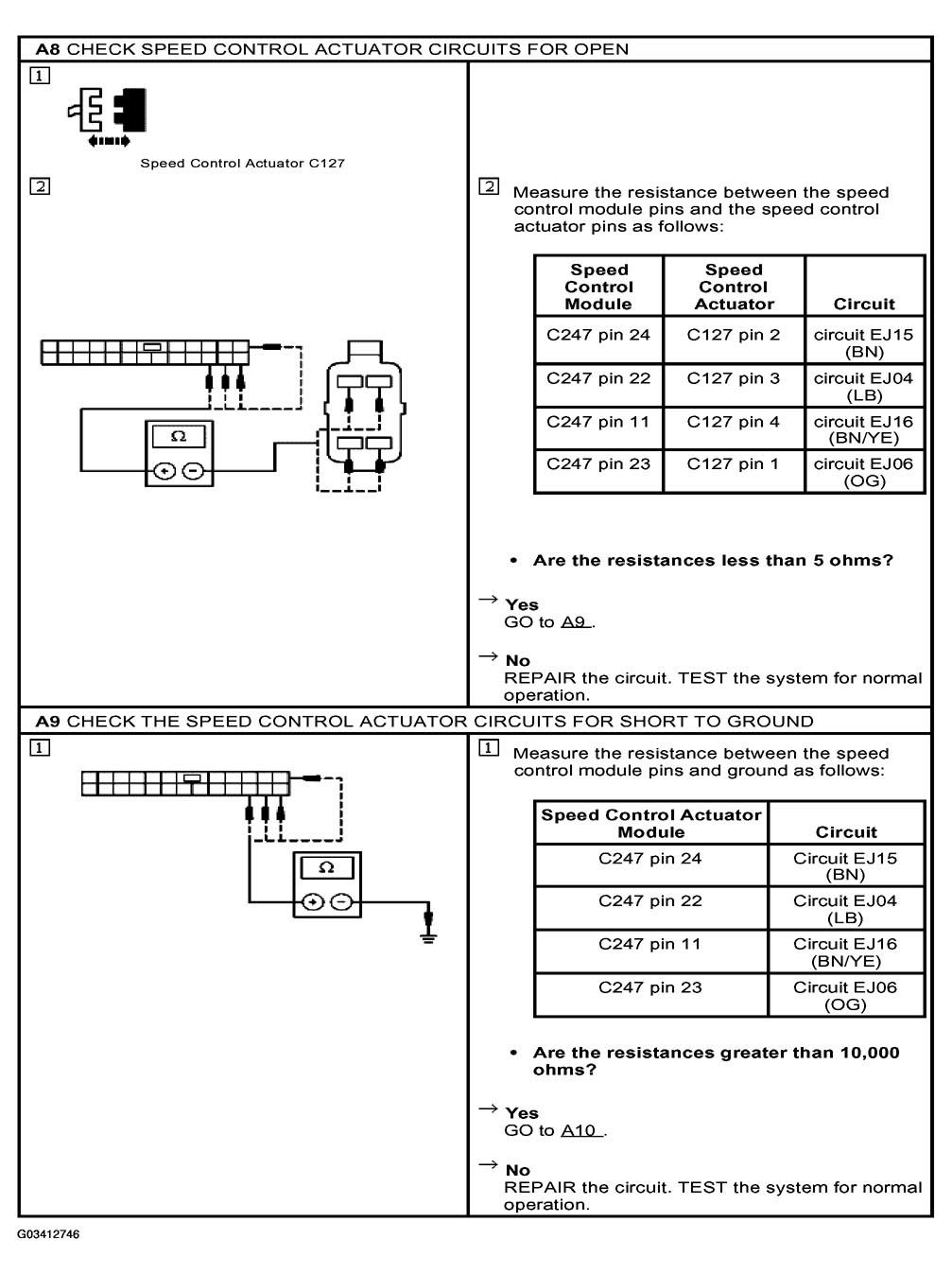

Fig 5: Pinpoint Test A: Speed Control Is Inoperative (Test A8 - A9)

Courtesy of FORD MOTOR CO.

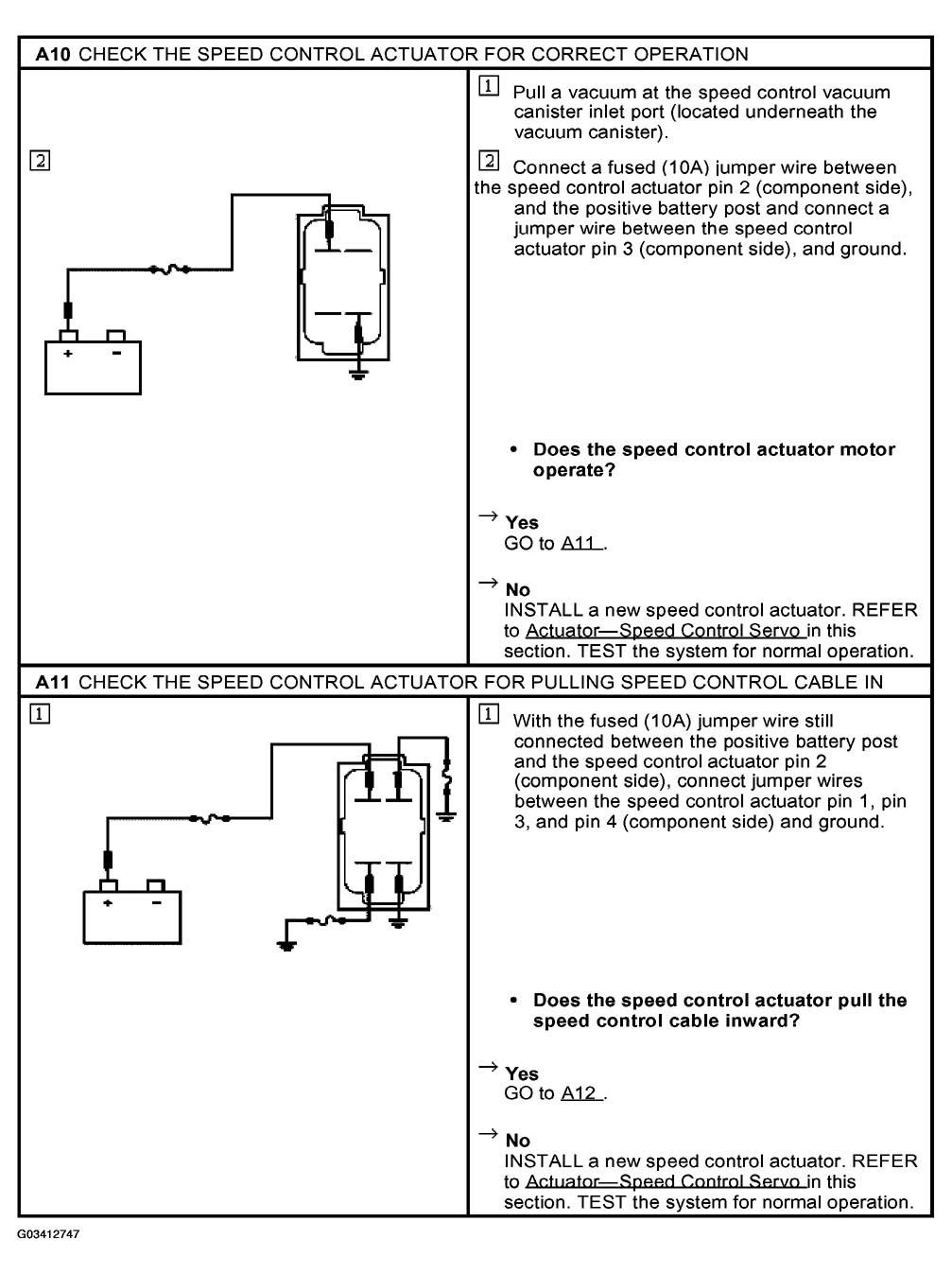

Fig 6: Pinpoint Test A: Speed Control Is Inoperative (Test A10 - A11)

Courtesy of FORD MOTOR CO.

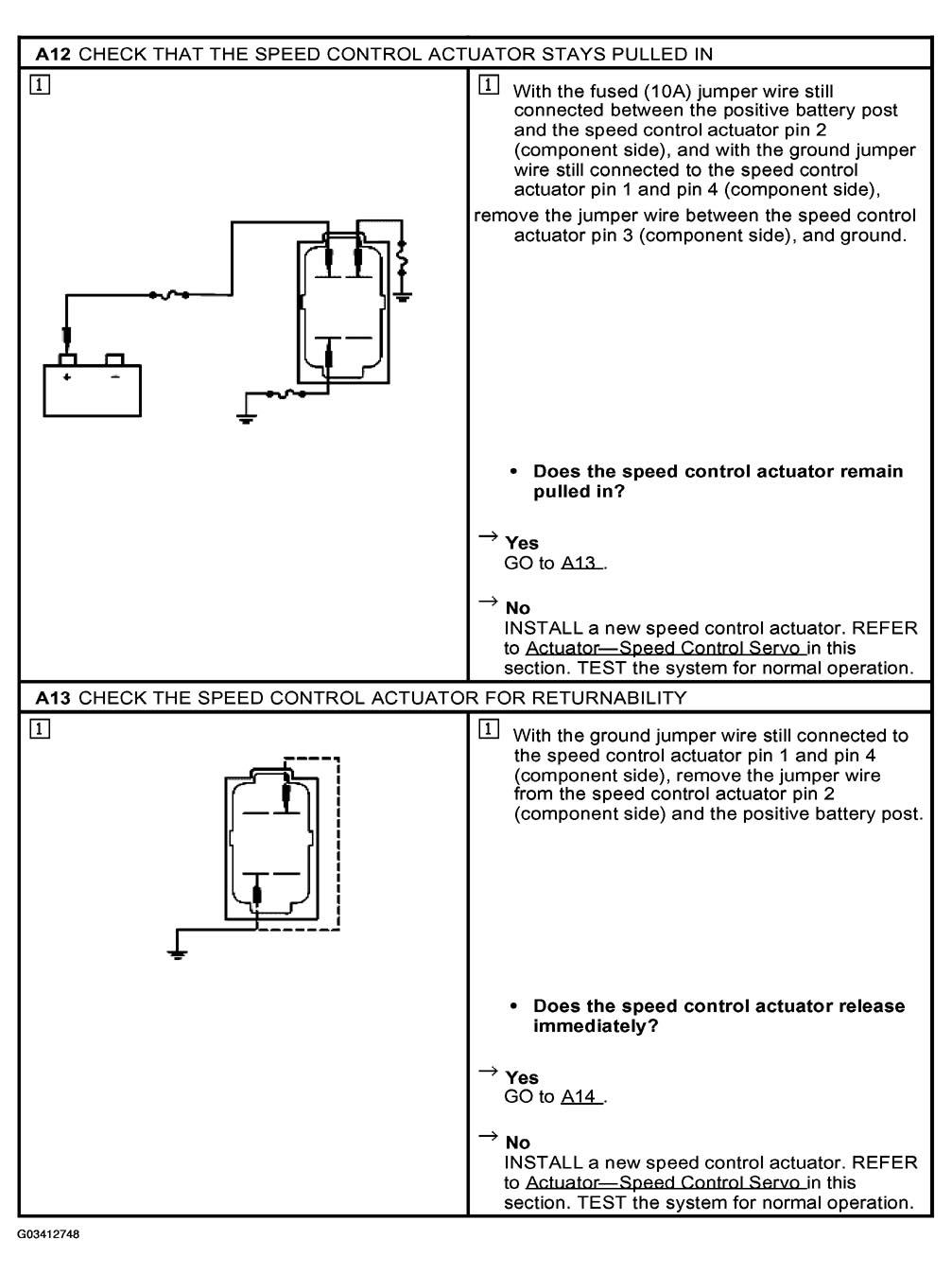

Fig 7: Pinpoint Test A: Speed Control Is Inoperative (Test A12 - A13)

Courtesy of FORD MOTOR CO.

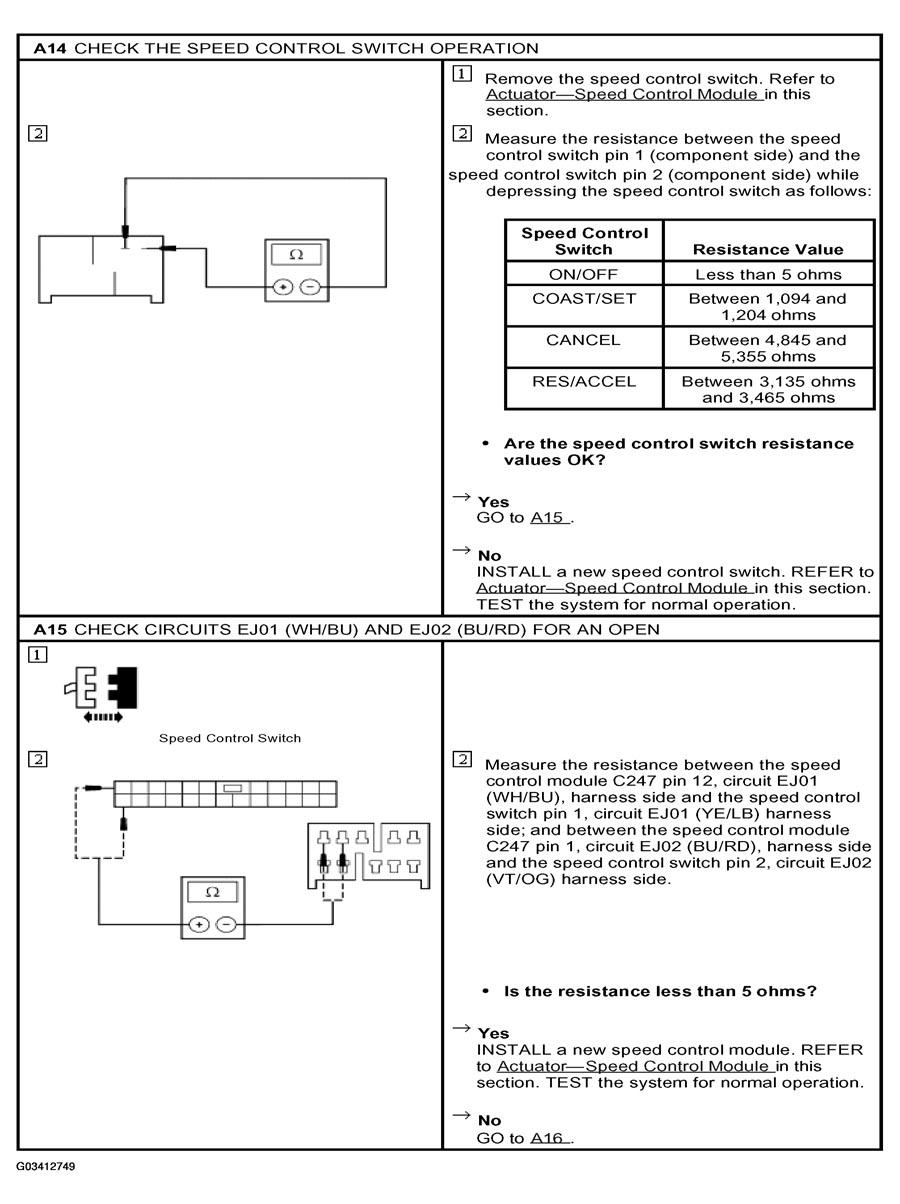

Fig 8: Pinpoint Test A: Speed Control Is Inoperative (Test A14 - A15)

Courtesy of FORD MOTOR CO.

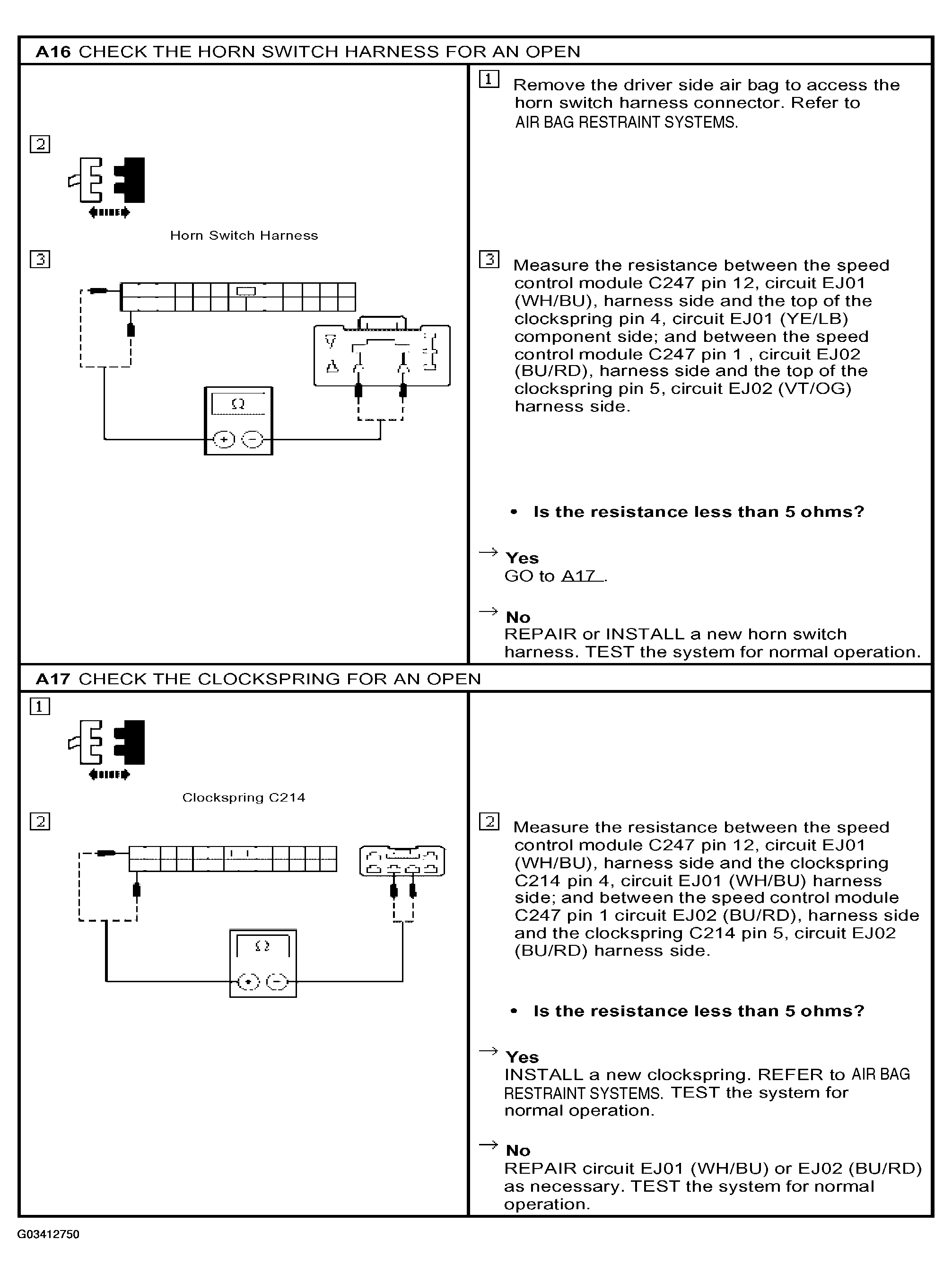

Fig 9: Pinpoint Test A: Speed Control Is Inoperative (Test A16 - A17)

Courtesy of FORD MOTOR CO.
