Mercury
>>
2002
>>
Cougar 2.5 L, Automatic
>>
Repair and Diagnosis
>>
Transmission
>>
Automatic Trans
>>
Transaxle/Transmission Cooling
>>
Diagnosis And Testing
>>
Symptom Chart
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Symptom Chart

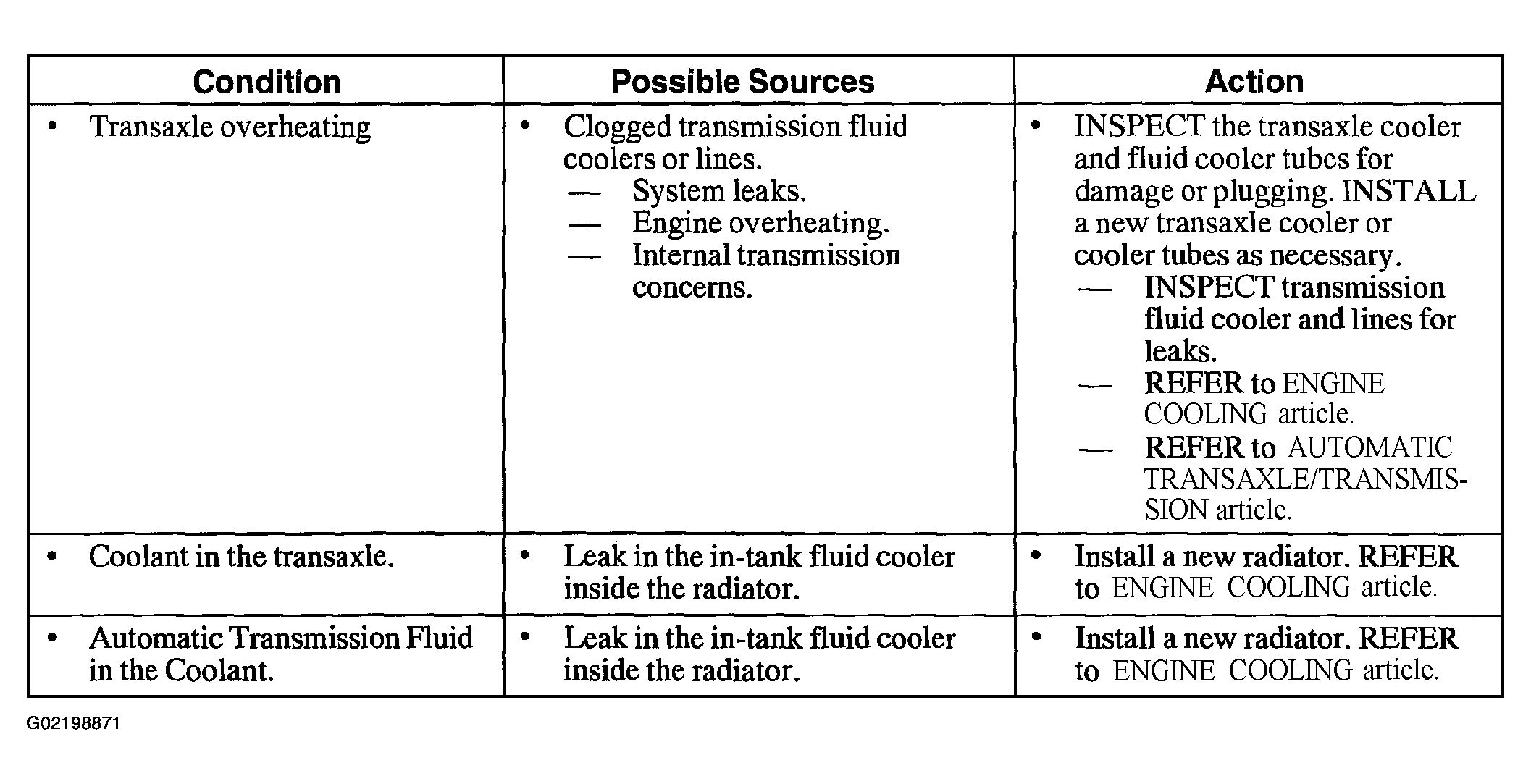

Fig 1: Transaxle/Transmission Cooling Symptom Chart
Courtesy of FORD MOTOR CO.
