Pinpoint Test D: DTC B1484, Brake Pedal Input Open Circuit

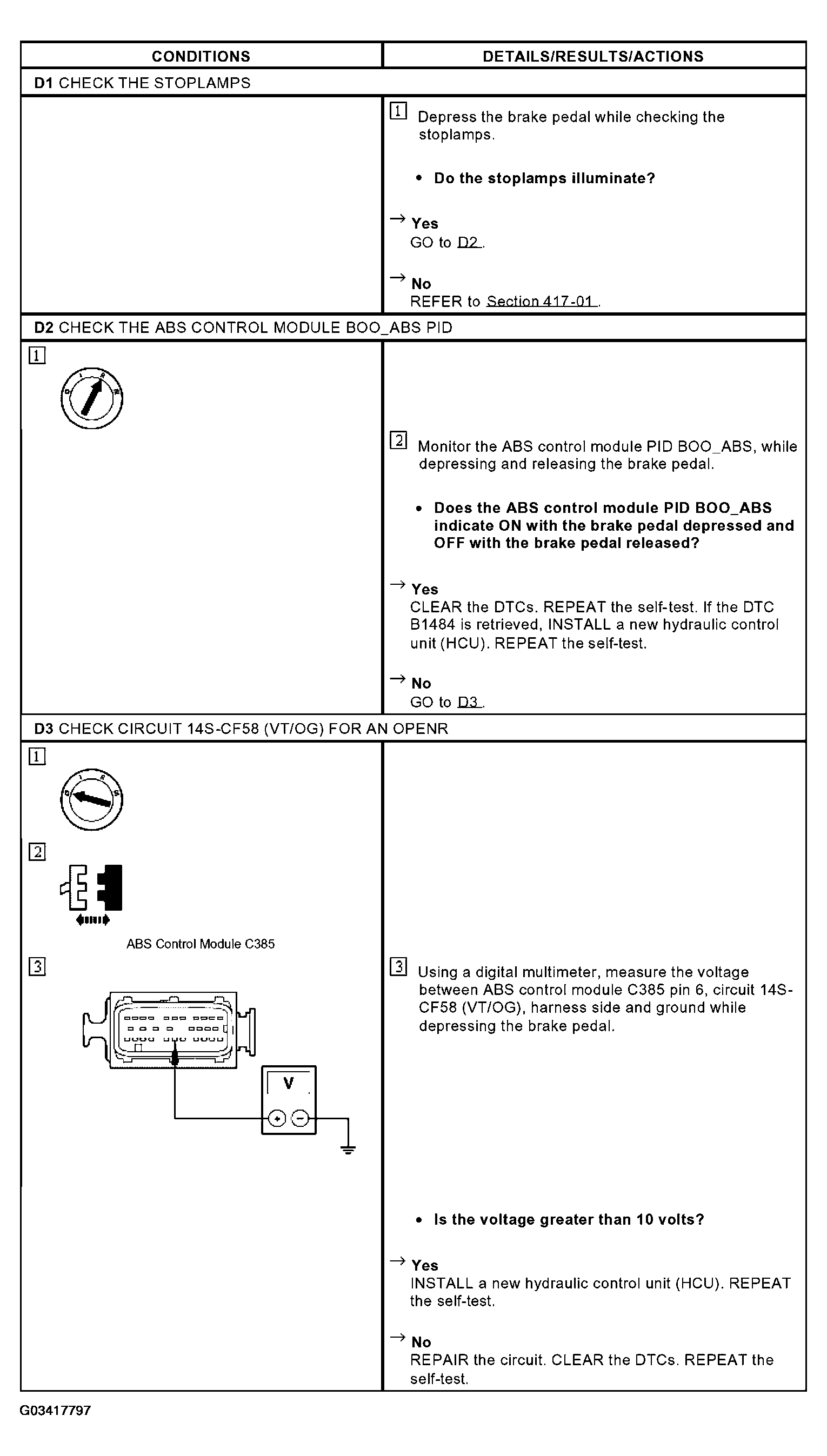

Fig 1: Pinpoint Test D: DTC B1484, Brake Pedal Input Open Circuit (D1 - D3)
G03417797Courtesy of FORD MOTOR CO.
