Blower Motor: Service and Repair

REMOVAL







1. Remove pin-type retainers and the right instrument panel insulator.

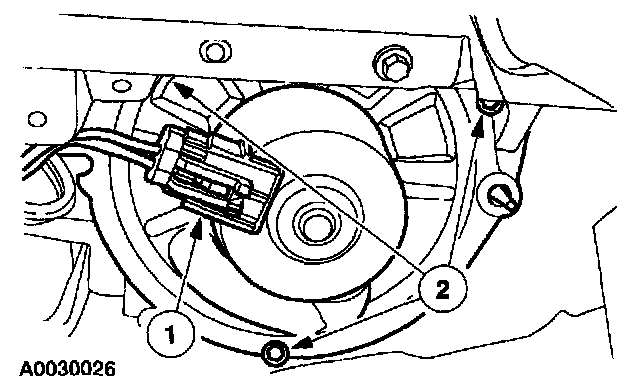

2. Remove the blower motor.
1 Disconnect the electrical connector
2 Remove the screws and remove the blower motor.

INSTALLATION
1. To install, reverse the removal procedure.
