Audible Warning Device Control Module: Locations

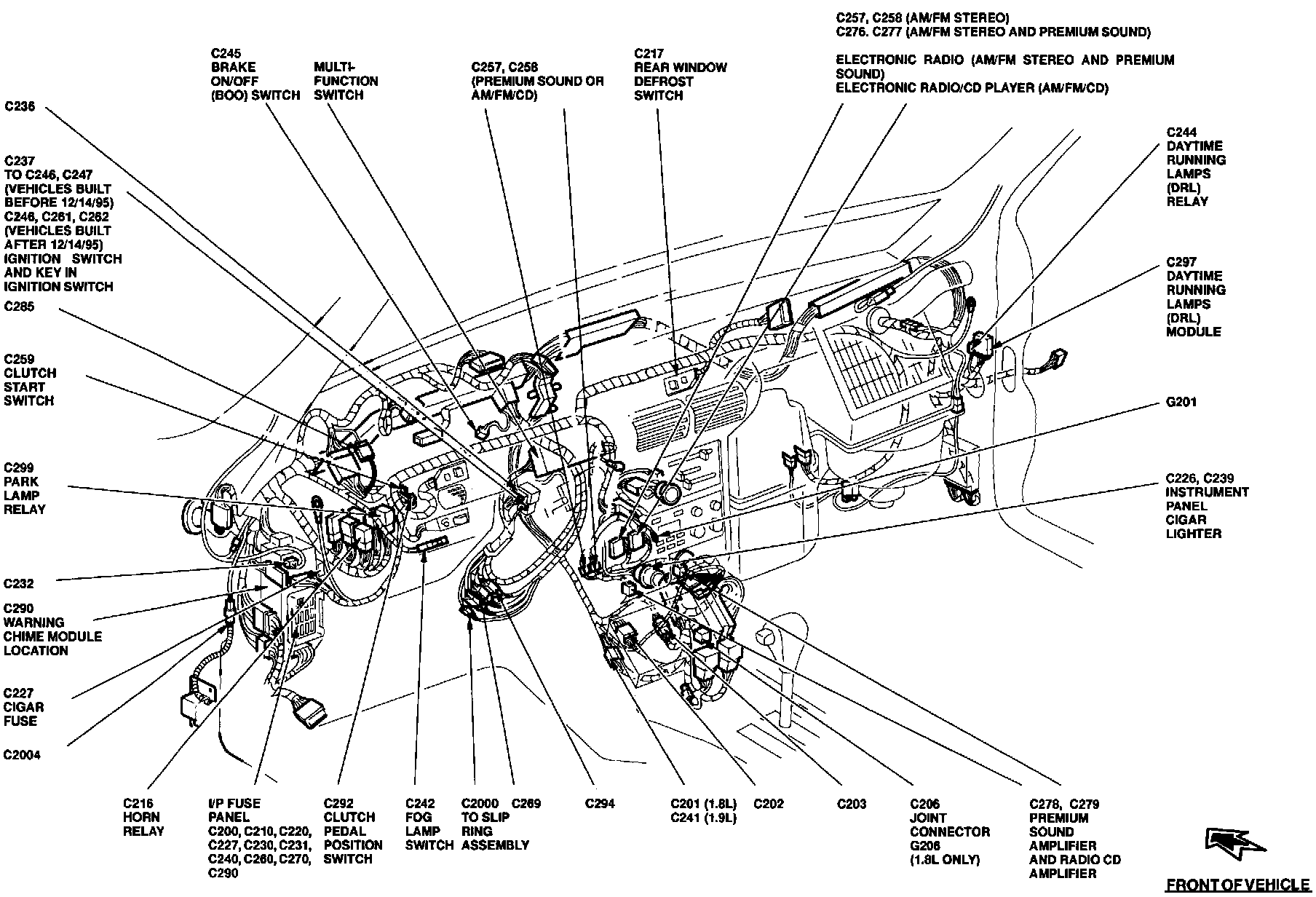

Behind Instrument Panel View:





The Warning Chime Module is located behind LH side of the Instrument Panel (I/P), on rear of the I/P fuse panel.
