Antenna Control Module: Service and Repair

Removal and Installation

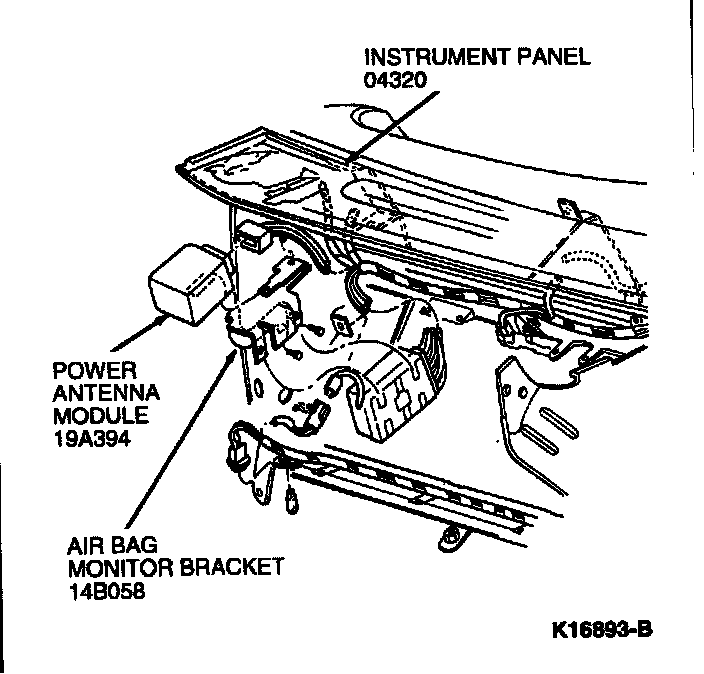

Power Antenna Module:




1. Push in on sides of glove compartment door and place in hinged downward position.

2. Remove power antenna module from air bag monitor bracket.

3. Disconnect wire assembly from power antenna module.

4. To install reverse Removal procedure.
