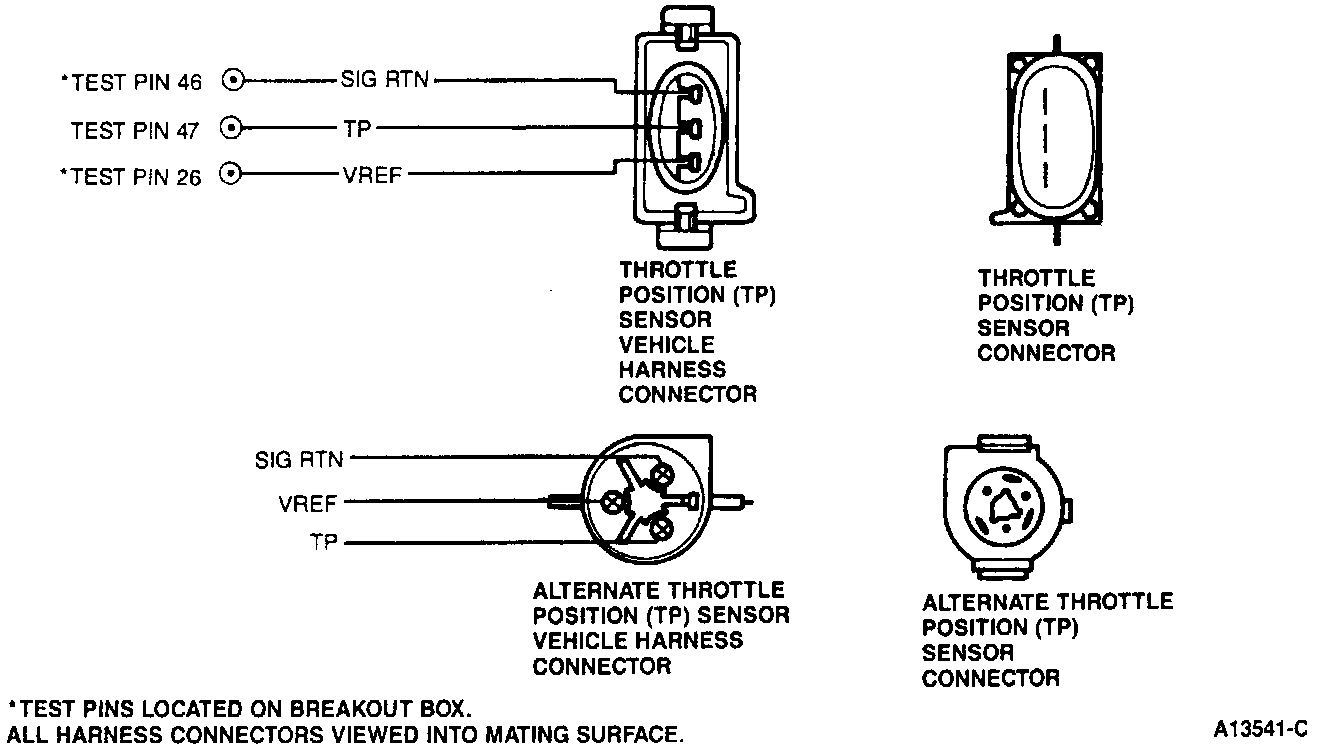

DH - Test Schematic

TP Sensor Connector View:






CIRCUIT / PIN / WIRE COLOR

SIG RTN / 46 / gray/red

VREF / 26 / brown/white

TP / 46 / gray/white
