Boost Pressure Sensor: Removal

WARNING: This page is about a different car, the 2004 Dodge Sprinter. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Unplug the electrical connector.
Remove the sensor retaining bolts, remove the sensor (Fig 1 ) and O-ring.

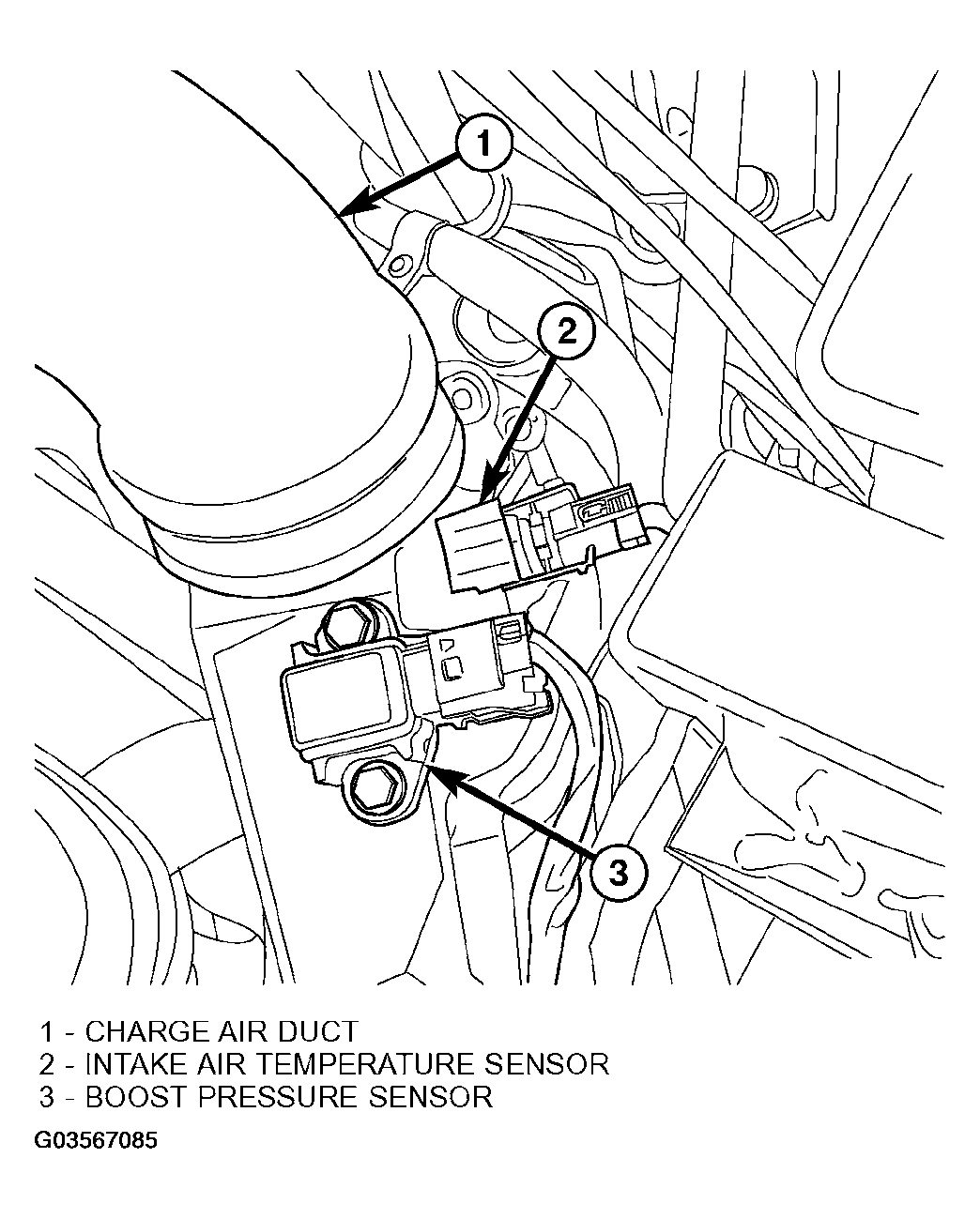

Fig 1: Locating Boost Pressure And Inlet Air Temperature Sensors

Courtesy of DAIMLERCHRYSLER CORP.
