PS13: Check Passenger Motor Assembly
- Disconnect the passenger motor assembly connector.

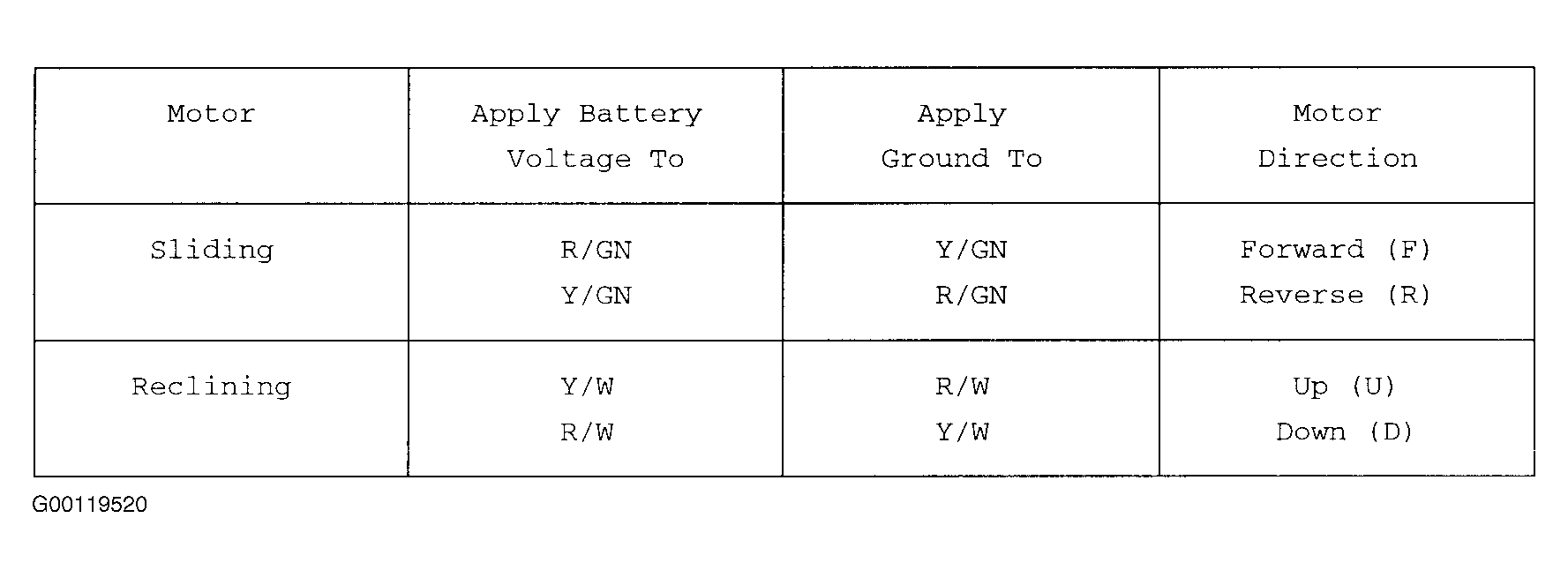

- Apply Battery voltage and ground to the wire terminals on the passenger motor assembly connector as indicated. See Fig 1 .
- Dose the motor in question operate as indicated? If yes, (sliding motor) service the "O" and /or "GN" wire(s) between the passenger motor assembly and the passenger power seat switch. (Reclining motor) service the "GY" and/or "Y" wire(s) between the passenger motor assembly and the passenger power seat switch. If no, replace the passenger motor assembly.
