Manual Transaxle

1. Disconnect sensor connector.

Throttle Sensor Testing (M/T):

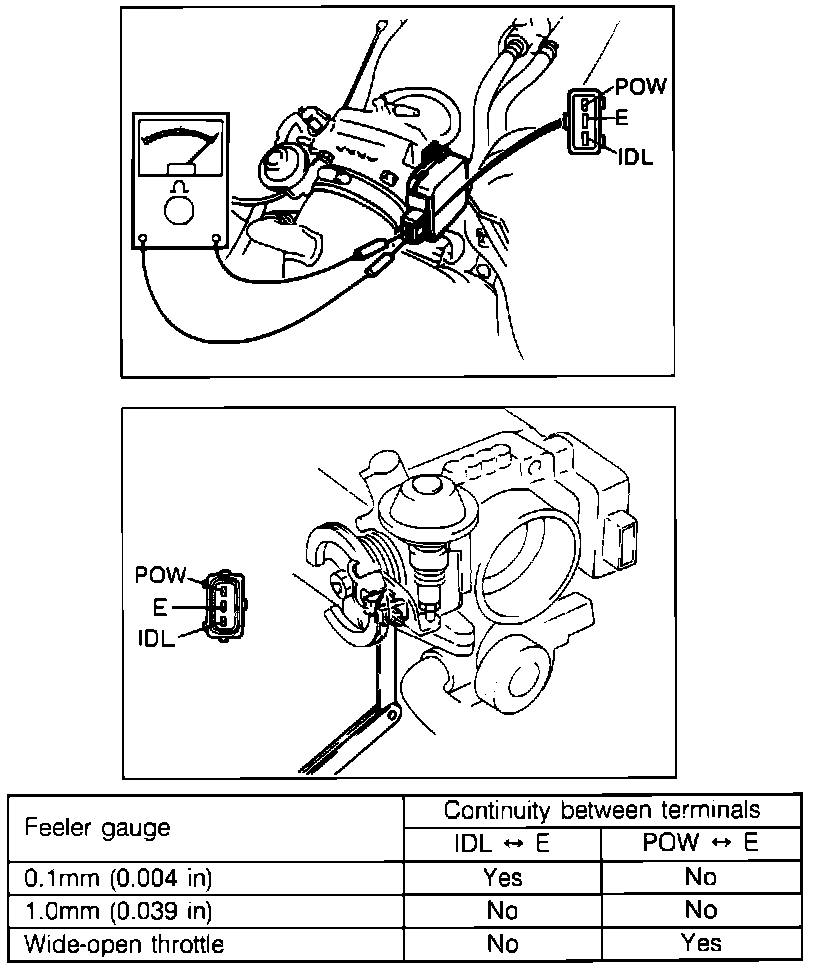

2. Check continuity between terminals with appropriate feeler gauge inserted between throttle stop screw and stop lever as described on image chart.

3. If correct specifications cannot be obtained, adjust sensor. Refer to Adjustments. Manual Transaxle

4. If adjustment does not result in correct specifications, replace sensor.
