STI - Self Test Input
>>
STI - Testing Notes and Schematic
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

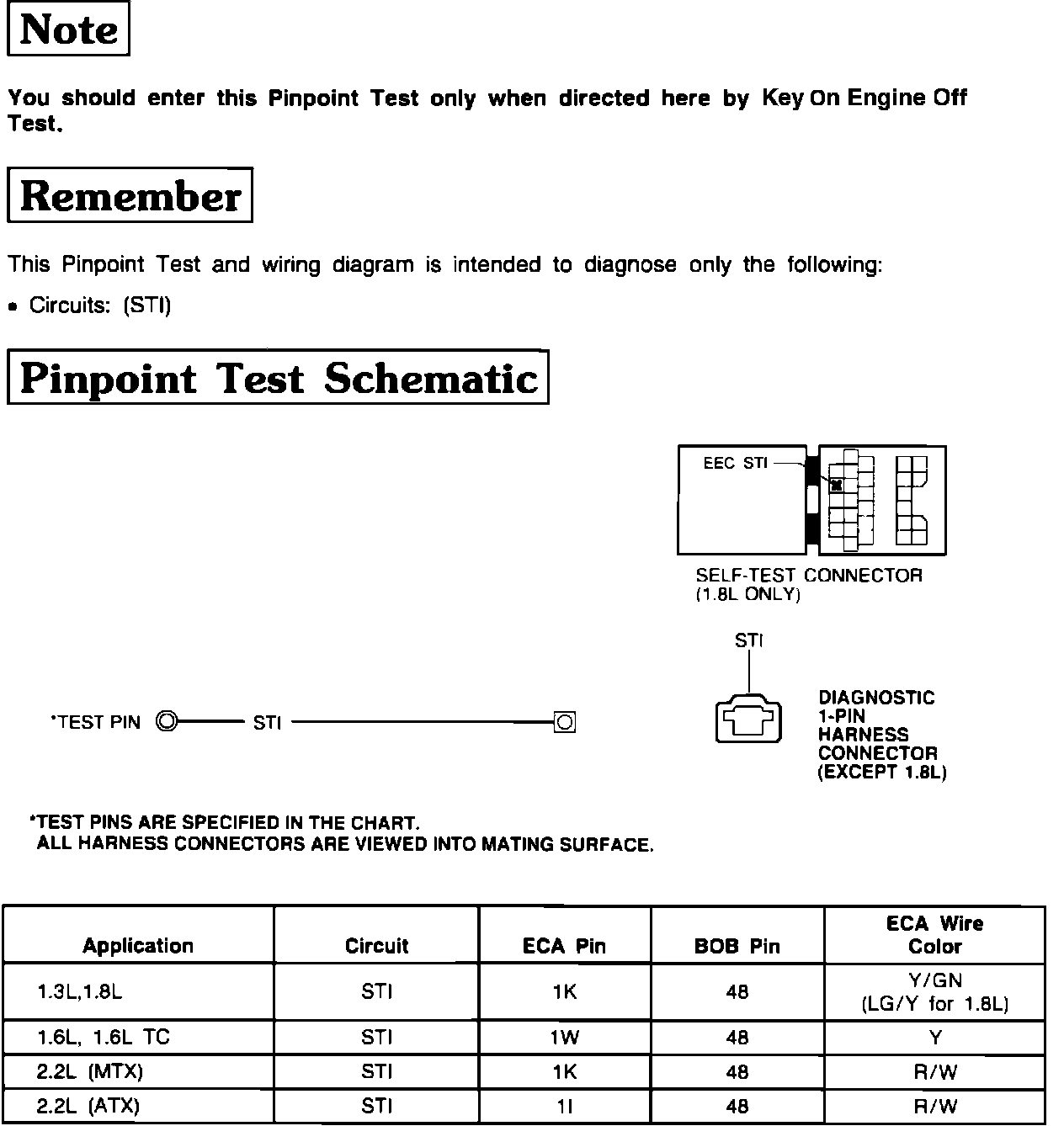

STI - Testing Notes and Schematic
Pinpoint Test STI Testing Notes And Test Schematic:
