Wiring Diagrams

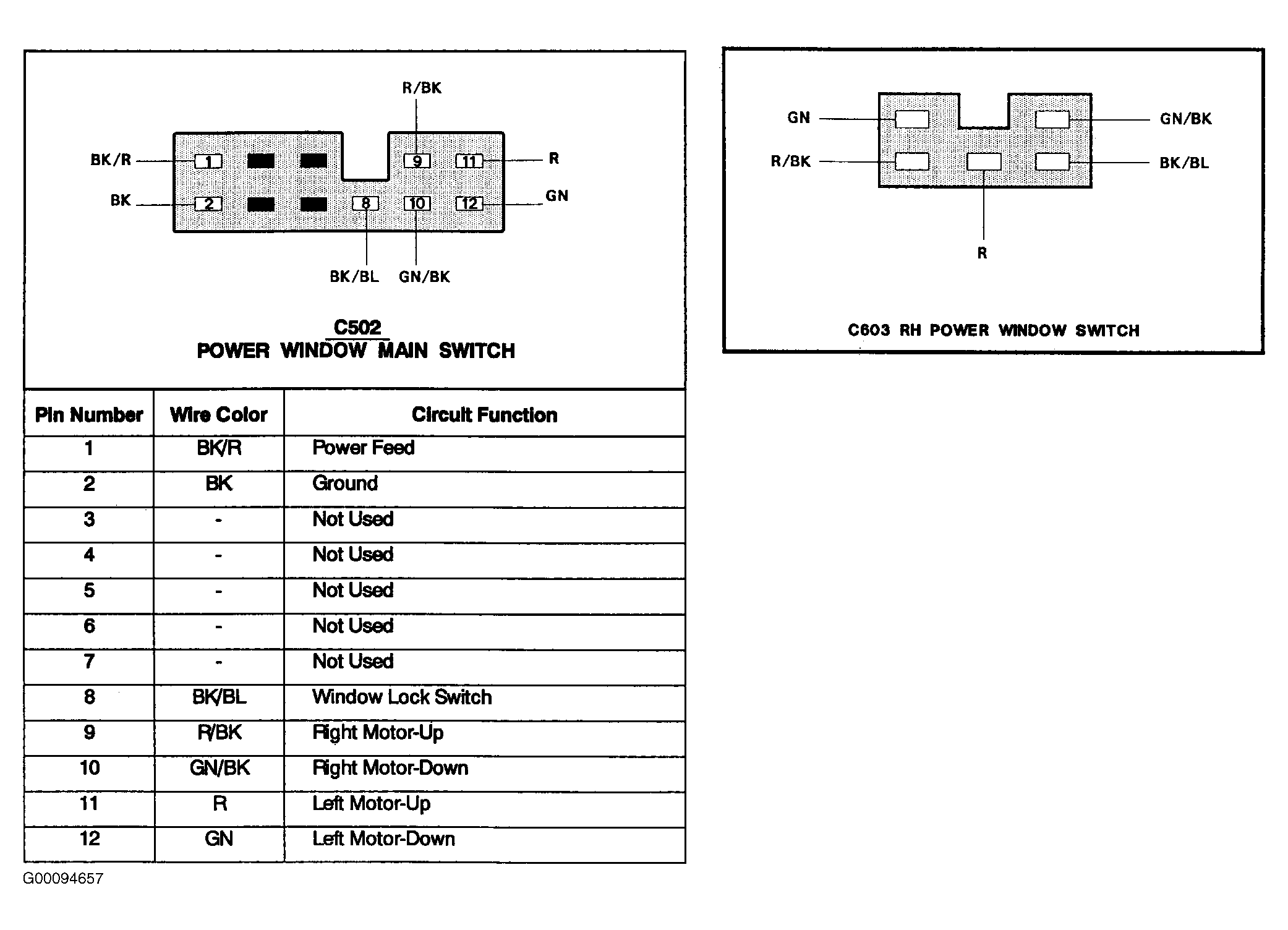

Fig 1: Power Window Connector Identification

Courtesy of FORD MOTOR CO.

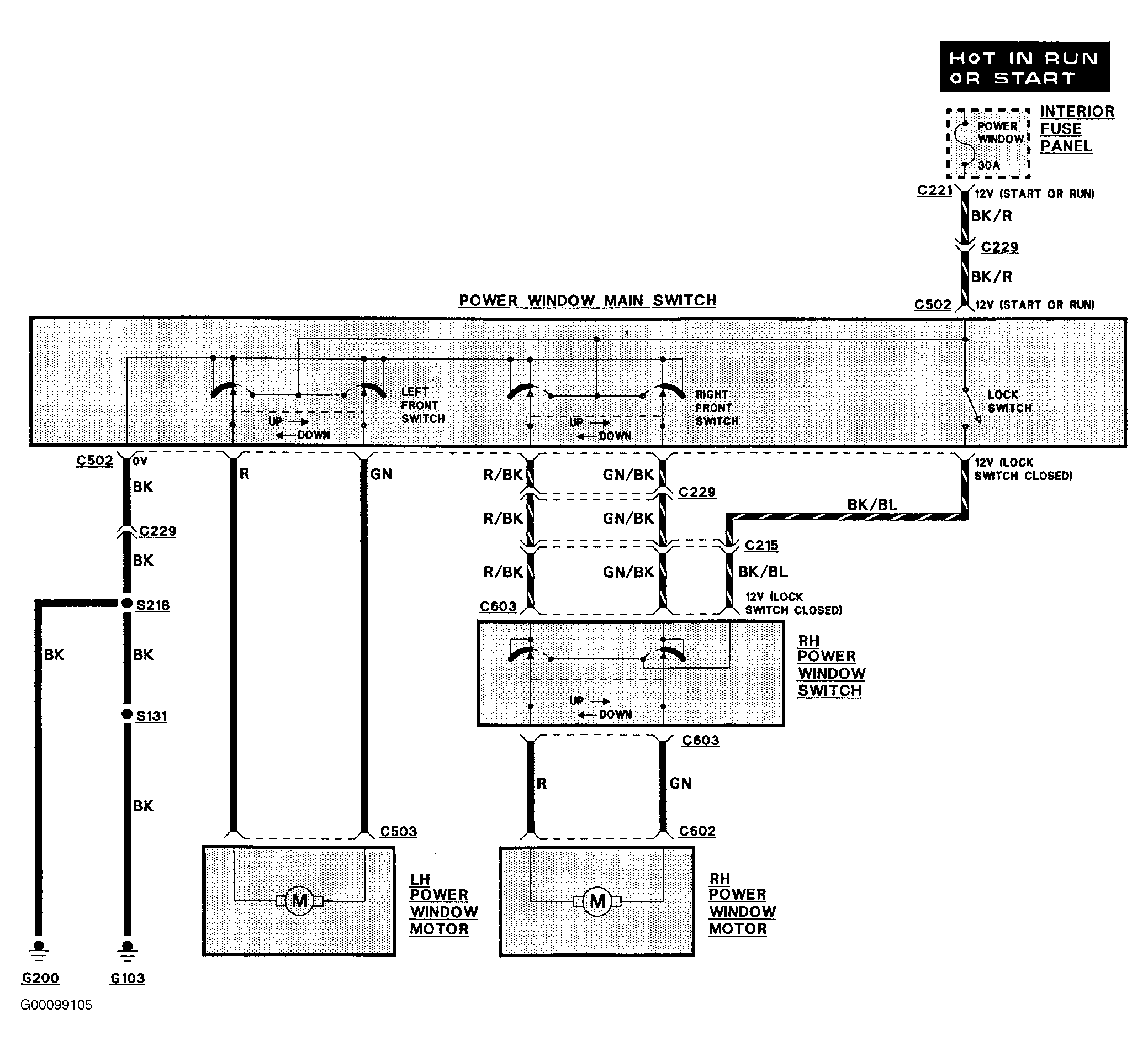

Fig 2: Power Window Wiring Diagram

Courtesy of FORD MOTOR CO.
