Door Glass Longitudinal Adjustment

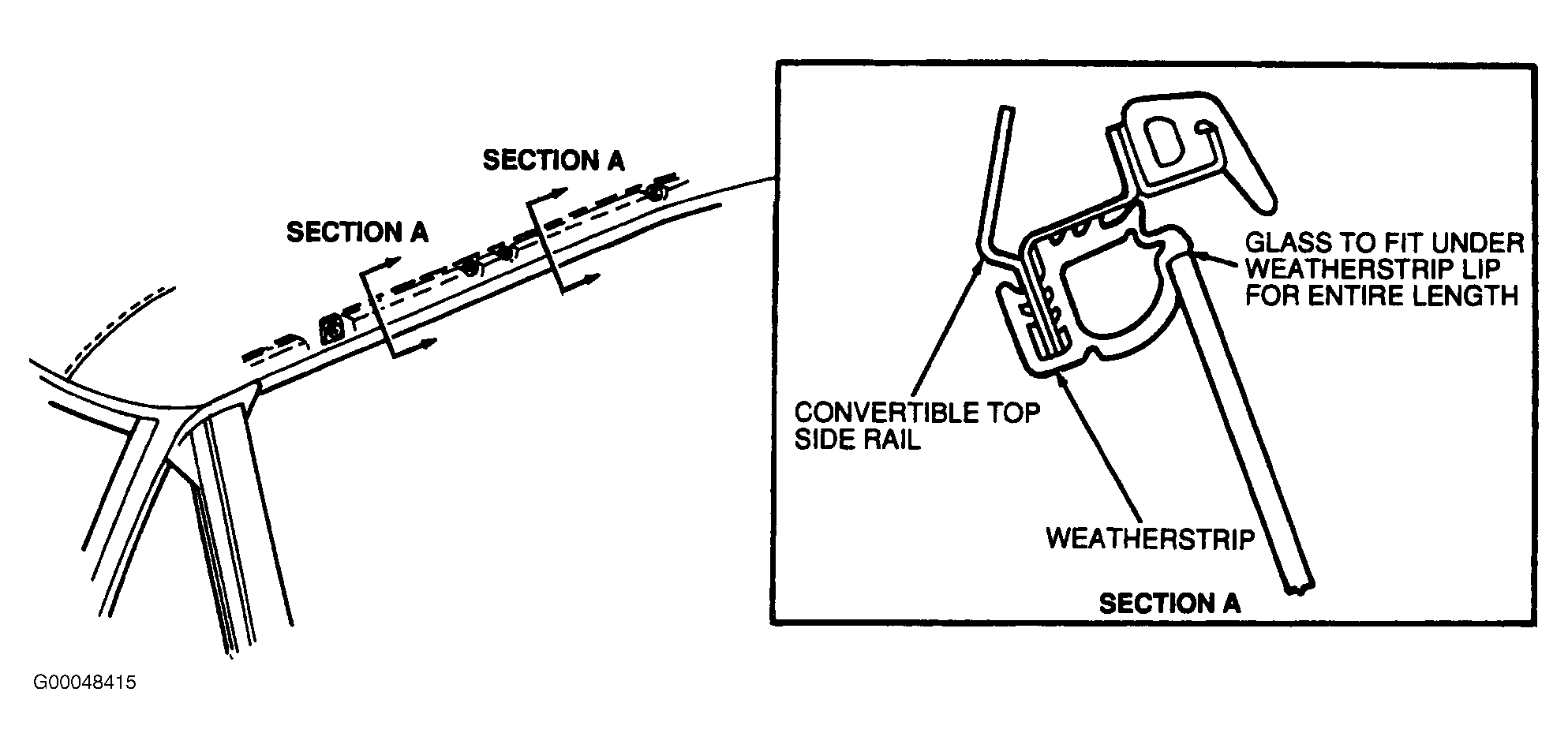

Make sure full length of door glass is seated under lip of weatherstrip when door glass is fully raised. See Figure .
Remove lower door trim panel and watershields. See DOOR TRIM PANEL under REMOVAL & INSTALLATION.
Working through openings in door, loosen two regulator-to-glass bolts. See Figure .
Align door glass so it contacts weatherstrip evenly front-to-back and is fully seated in weatherstrip.
Tighten regulator-to-glass bolts to 45-61 INCH Lbs (5-7 N. m)
Lower and raise door glass several times to make sure alignment is correct.
Install watershields and lower door trim panel. See DOOR TRIM PANEL under REMOVAL & INSTALLATION.
