Radiator Cooling Fan Control Module

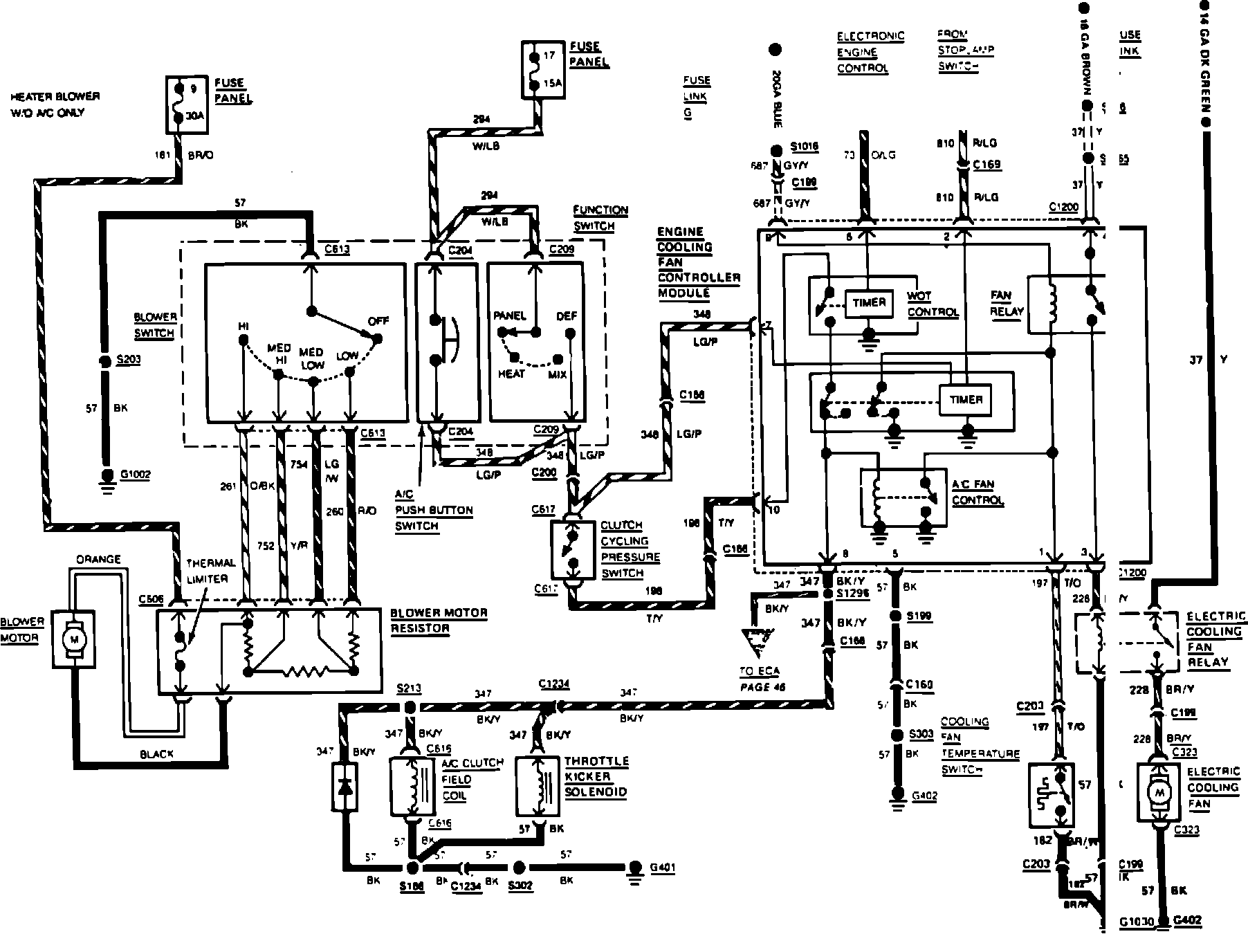

Fig. 4 Air Conditioning & Heater, Cooling Fan Wiring Circuit. Gasoline Engine:



Fig. 53 Cooling Fan Wiring Circuit. Gasoline Engine:
