Engine Control Module

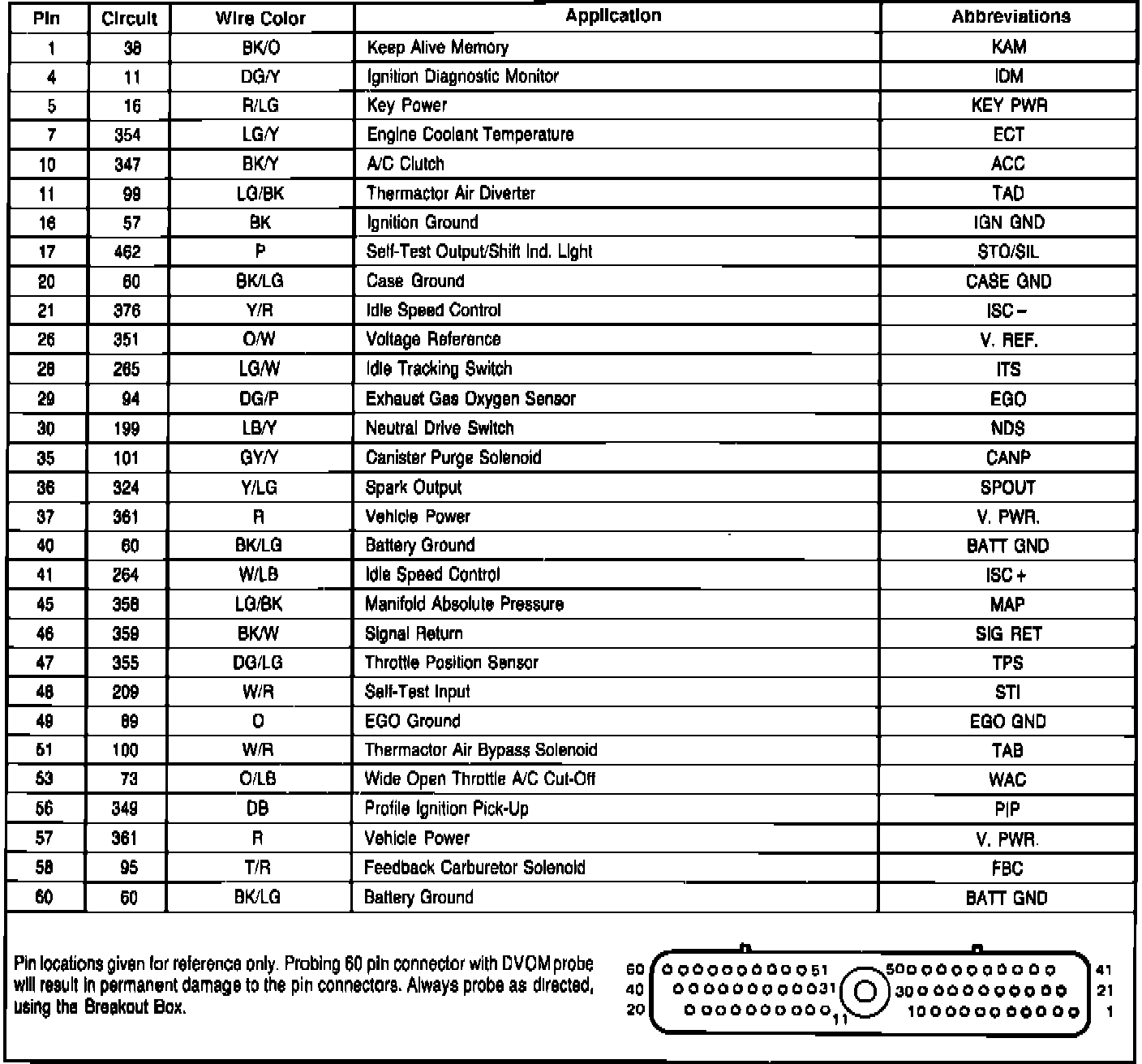

Fig. 220 EEC-IV module connector pin usage. 1986 4-140 overhead cam engine W/feedback carburetor:
