M/T Technical Data

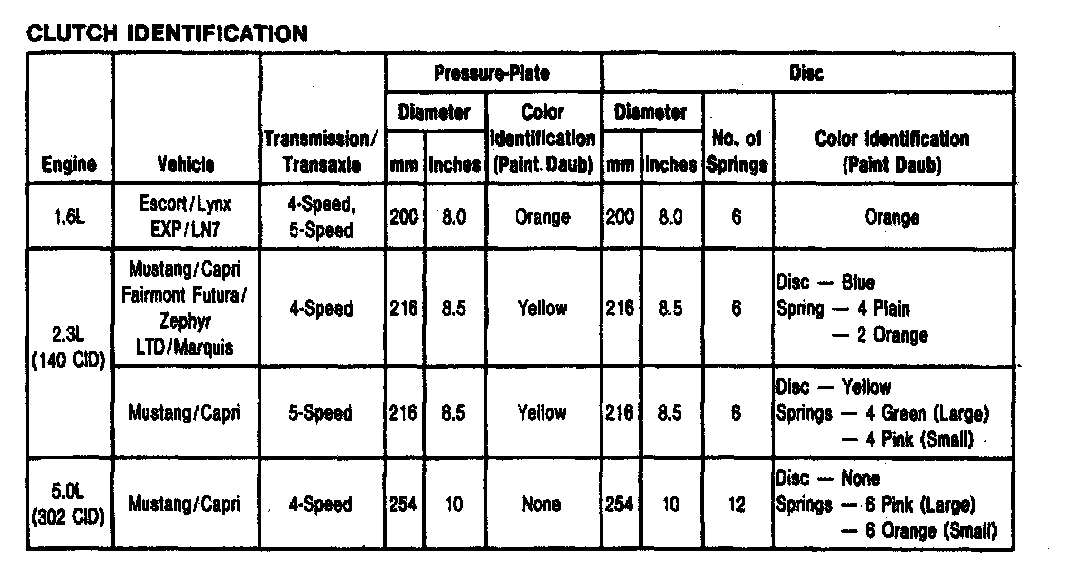

83ET 4-spd M/T, Clutch:





83ET 4-spd M/T, Clutch Runout:





83ET 4-spd M/T, Shift Speeds (w/o 5.0L):





83ET 4-spd M/T, Shift Speeds (Mustang/Capri W/5.0L):





83ET 4-spd M/T, Gear Cluster End Play:





83ET 4-spd M/T, Output Shaft:
