Float Drop
Suspend air horn assembly in normal position with air horn gasket in place. Measure clearance from air horn gasket to bottom of float.

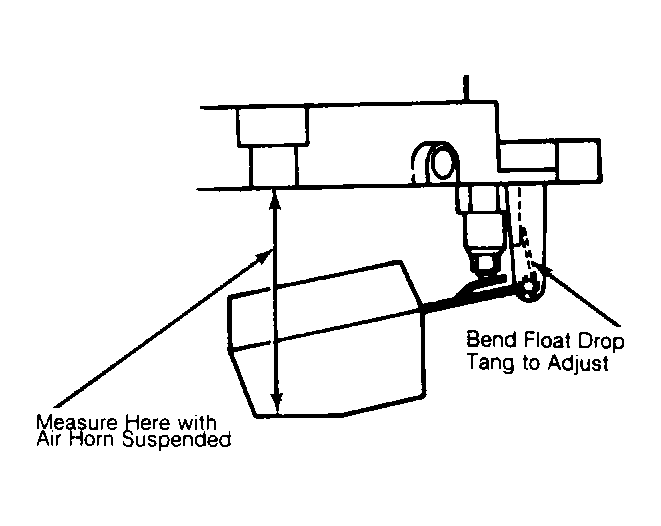

To adjust, remove float assembly and bend float drop tang. See Fig 1
.
