Mercury
>>
1982
>>
Zephyr L6-200 3.3L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Emission Control Systems
>>
Diagrams
>>
Fig. 43 Calib. Code 2-12T-R02 Federal, Exc. High Alt.
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

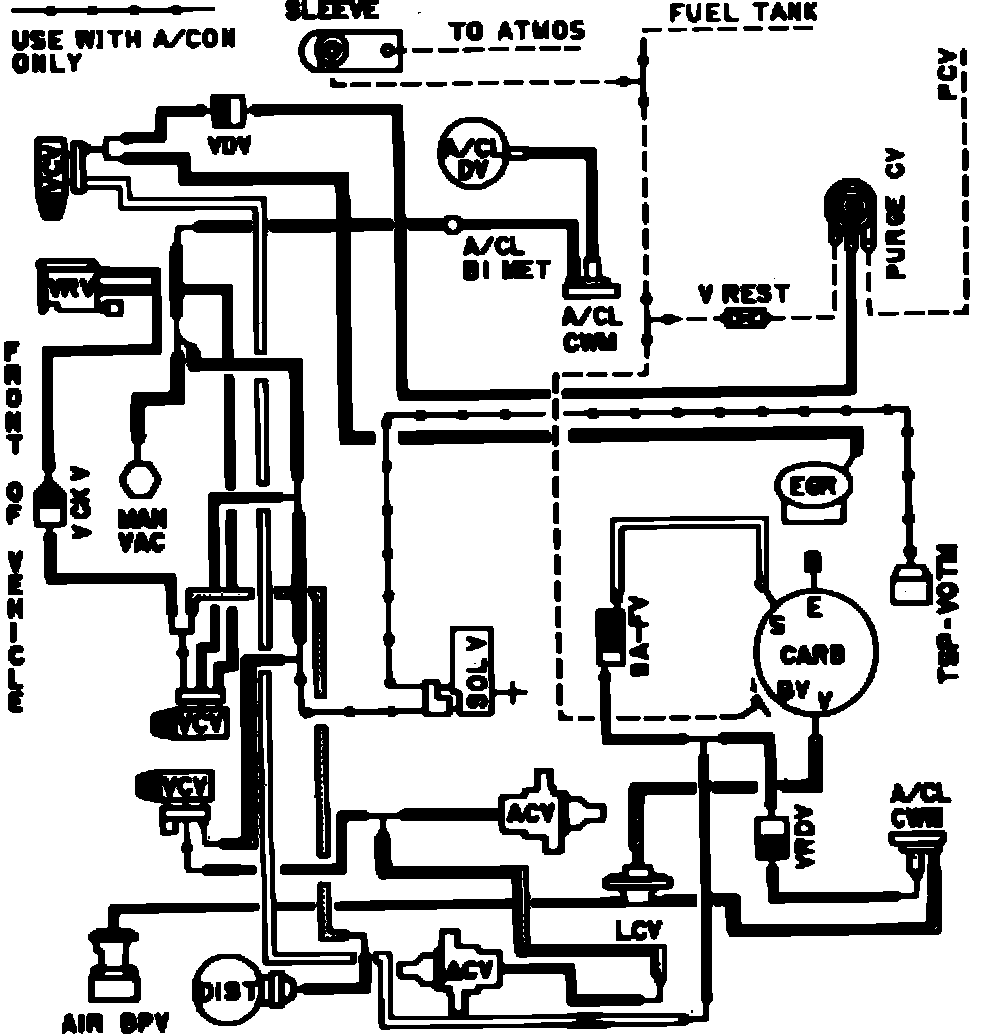

Fig. 43 Calib. Code 2-12T-R02 Federal, Exc. High Alt.
Vacuum hose routing:
