A/T Technical Data

C-3 3-spd A/T, Line Pressure (Merkur):

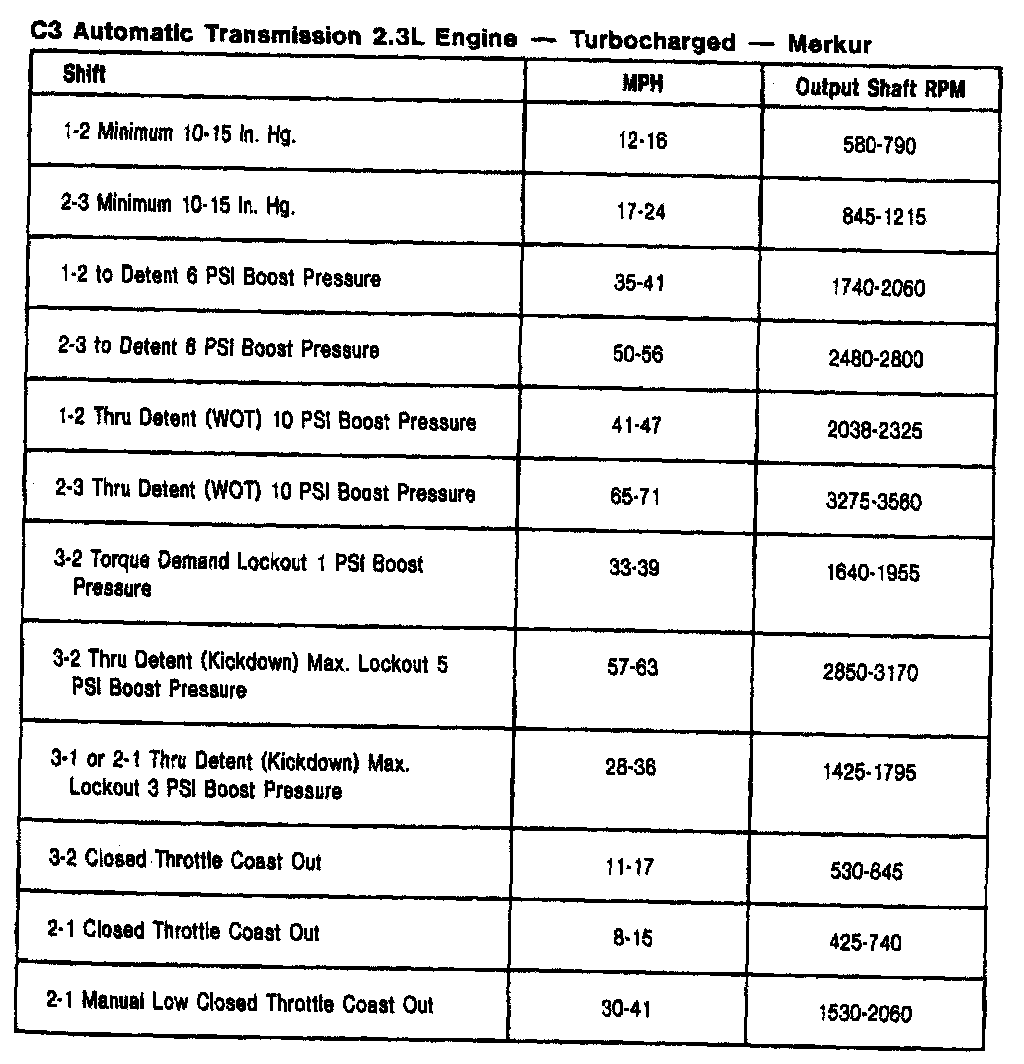

C-3 3-spd A/T, Shift Speeds (2.3L Turbo Merkur):

C-3 3-spd A/T, Thrust/Clutch Tolerance/Clearances (Merkur):

C-3 3-spd A/T, Clutch/Band Application (Merkur):

C-3 3-spd A/T, Snap Rings (Merkur):

C-3 3-spd A/T, End Play (Merkur):

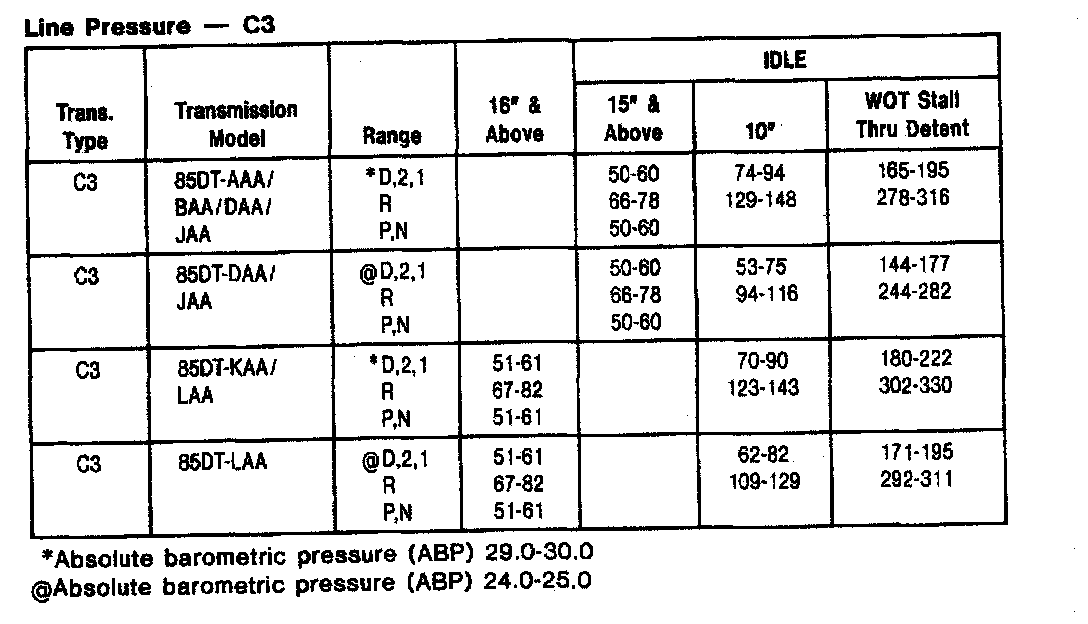

C-3 3-spd A/T, Line Pressure:

C-3 3-spd A/T, Stall Speeds (Per Vehicles Listed):

C-3 3-spd A/T, Converter End Play:

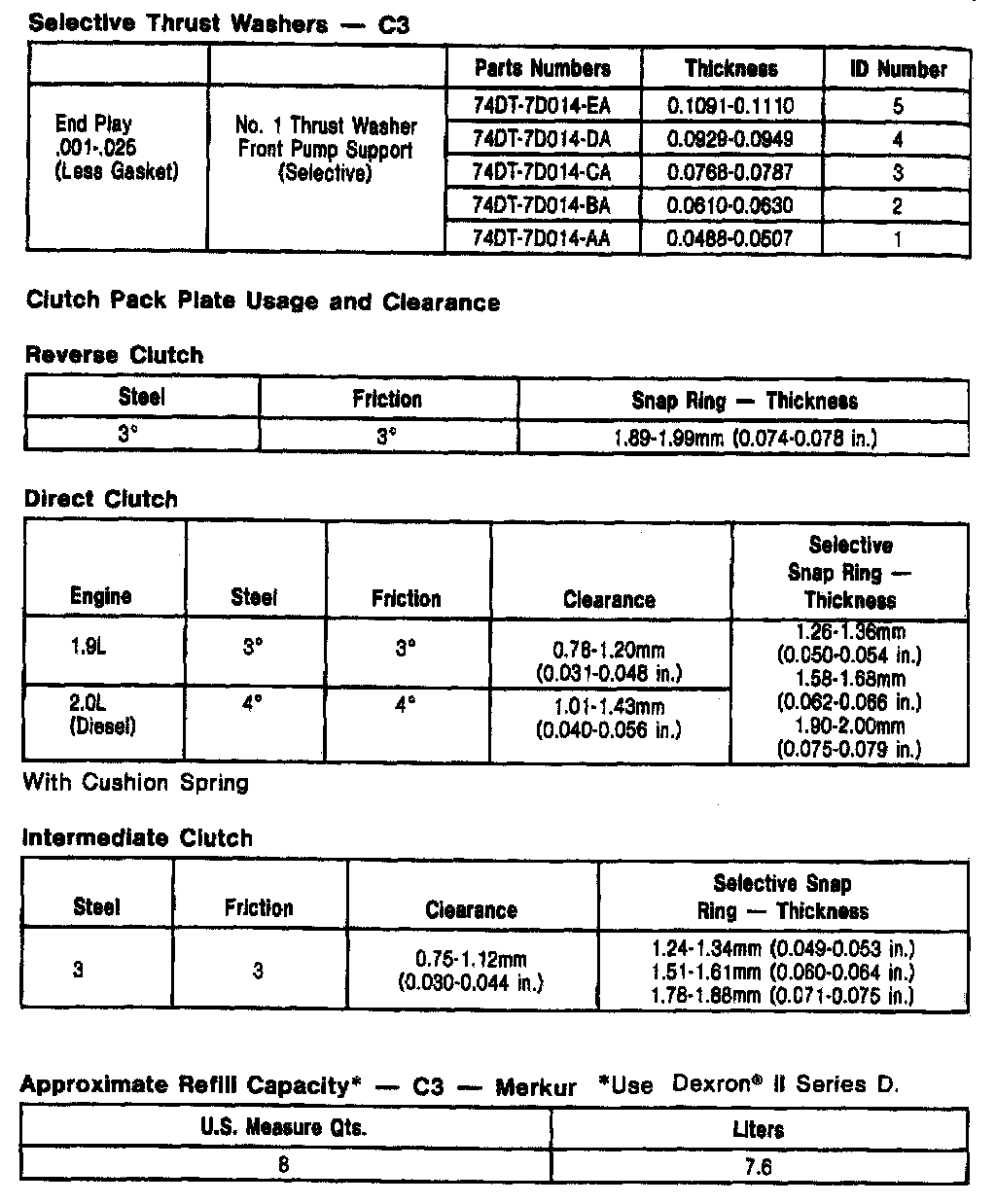

C-3 3-spd A/T, Thrust Washer:

C-3 3-spd A/T, Low/Reverse Servo Piston Rod Sizes:

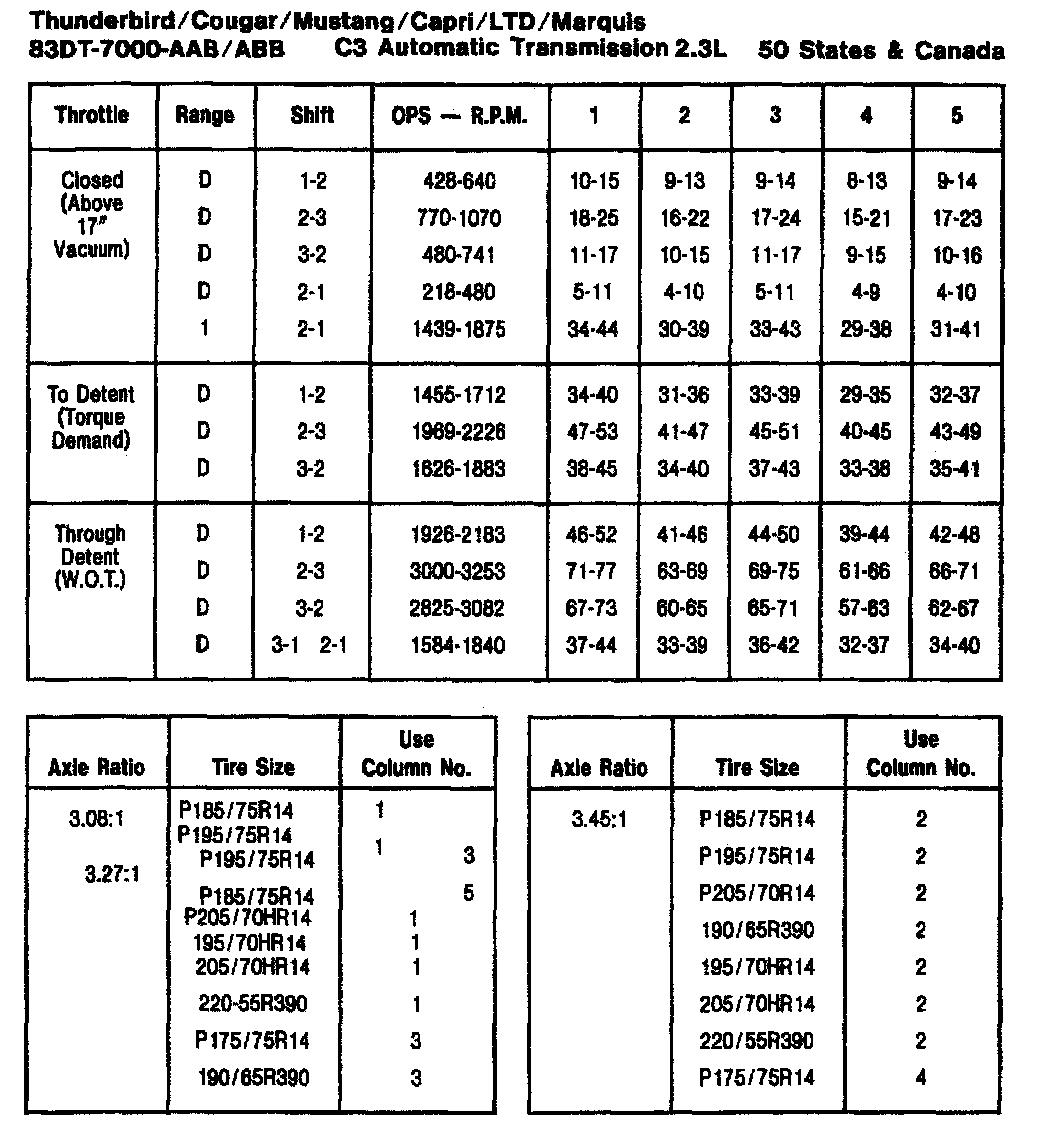

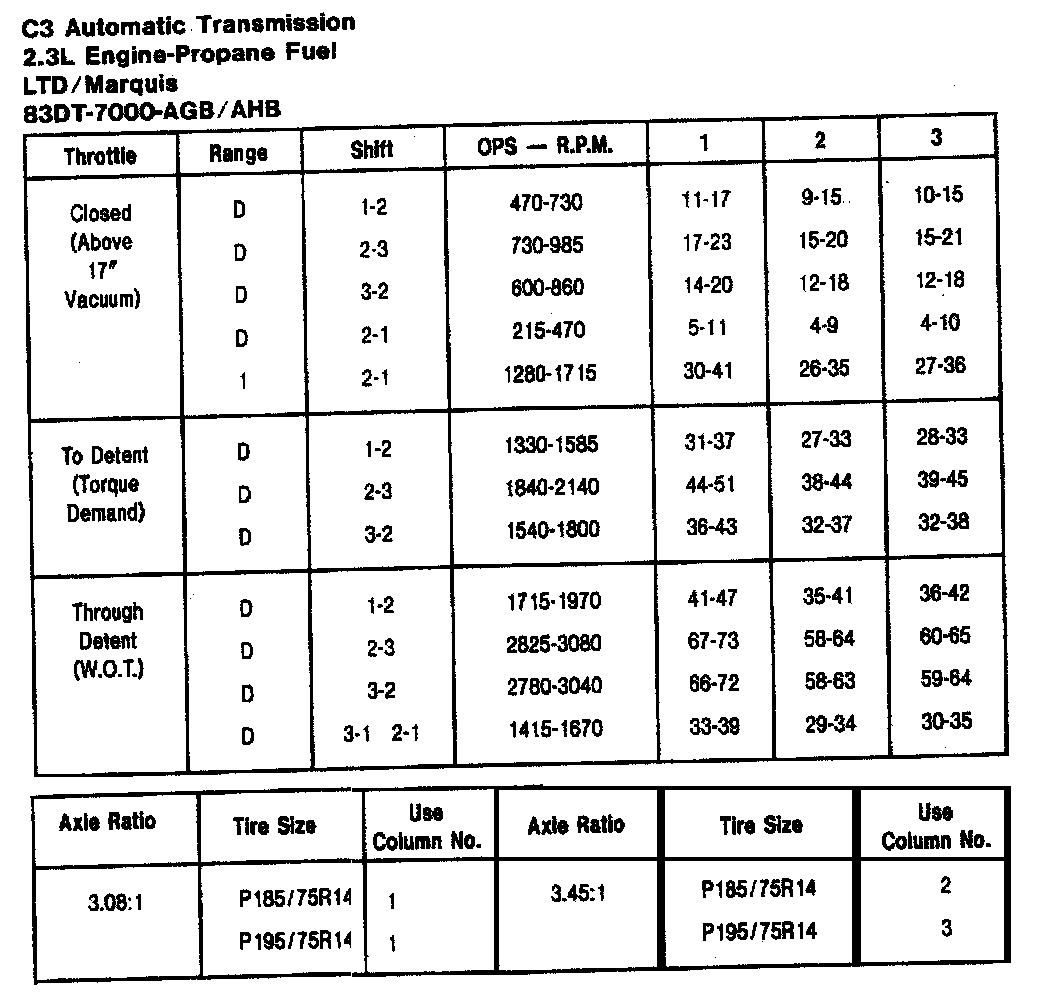

2.3L C-3 3-spd A/T, Shift Speeds (LTD/Marquis):

C-3 3-spd A/T, Shift Speeds (Per Vehicles Listed):

C-3 3-spd A/T, Vacuum Diaphragm Assembly:

C-3 3-spd A/T, End Play:
